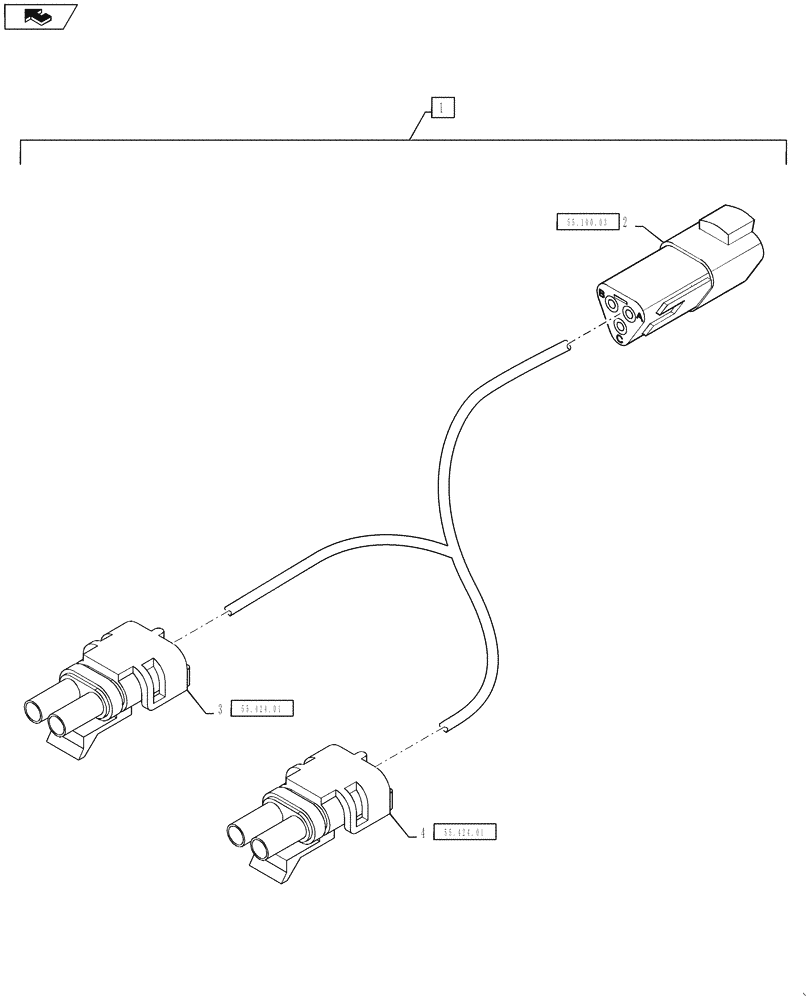

Запчасти Case IH 610 (55.100.06) - BOOM PROXIMITY SWITCH HARNESS (55) - ELECTRICAL SYSTEMS

1

87270121

HARNESS

Boom Proximity Switch, Includes Ref 2 - 4

1шт.

2

225295C1

ELEC CONNECTOR,Female, 3 Pin

Product Control Interface, P521, X-521F1

1шт.

2

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Product Control Interface, P521, X-521F1

3шт.

3

245482C1

ELEC CONNECTOR,2 Pin

LH Boom Position Switch, J427

1шт.

3

225123C1

TERMINAL CONNECTOR,Tin, 0.8mm

LH Boom Position Switch, J427

2шт.

3

87680701

SEAL

LH Boom Position Switch, J427

2шт.

4

245482C1

ELEC CONNECTOR,2 Pin

RH Boom Position Switch, J426

1шт.

4

225123C1

TERMINAL CONNECTOR,Tin, 0.8mm

RH Boom Position Switch, J426

2шт.

4

87680701

SEAL

RH Boom Position Switch, J426

2шт.
