Запчасти Case IH 610 (55.100.04) - HYDRAULIC CONTROL HARNESS, 610 (55) - ELECTRICAL SYSTEMS

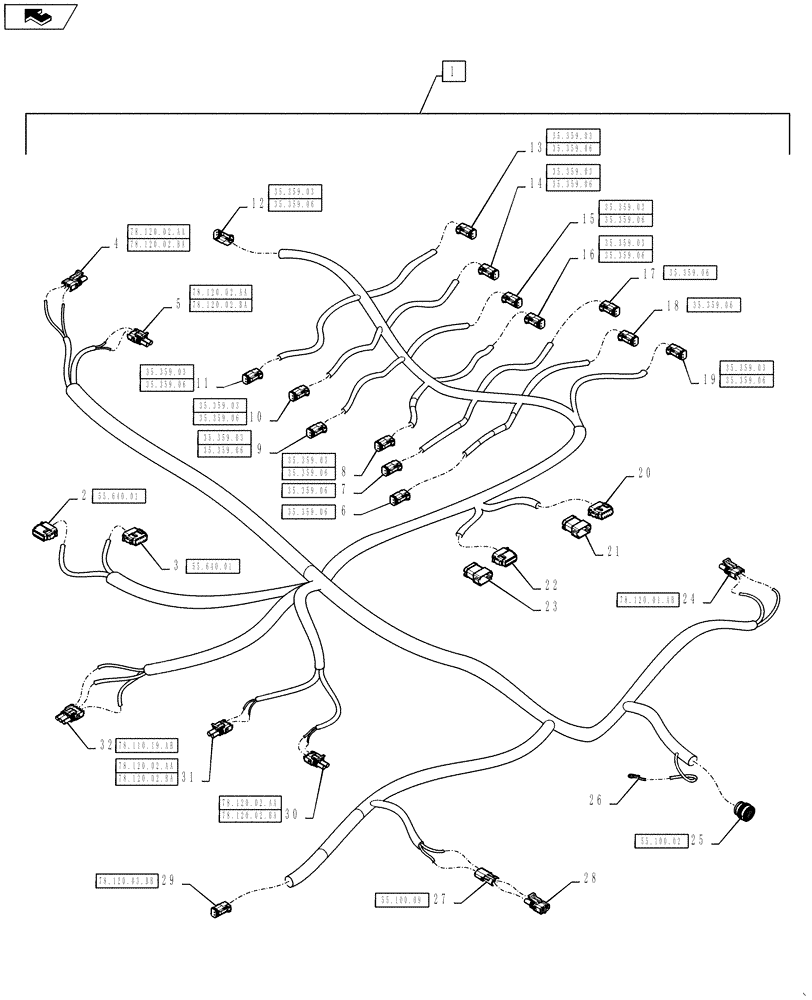

Схема запчастей Case IH 610 - (55.100.04) - HYDRAULIC CONTROL HARNESS, 610 (55) - ELECTRICAL SYSTEMS
19
35.359.06
22
4
35.359.03
35.359.03
11
35.359.06
78.120.03.bb
31
35.359.06
26
35.359.06
24
28
5
35.359.06
35.359.06
17
9
35.359.03
7
14
55.100.02
78.120.01.ab
78.120.02.ba
3
78.120.02.aa
6
78.120.02.ba
30
29
35.359.06
35.359.06
21
1
35.359.03
35.359.06
35.359.06
8
35.359.06
78.110.19.ab
35.359.03
78.120.02.aa
23
16
35.359.03
25
35.359.03
10
13
35.359.03
78.120.02.ba
home
78.120.02.aa
78.120.02.ba
55.100.09
2
35.359.06
35.359.06
35.359.03
35.359.06
27
32
18
55.640.01
20
12
15
35.359.03
55.640.01
78.120.02.aa

Артикул

Название

Примечание

Количество

1

84564324

WIRE HARNESS

Hydraulic Control, Includes Ref 2 - 32

1шт.

2

87705101

MULTIPOLE CONNECTOR,Female, 12 Pole

Unload Detect Module, X-133F1

1шт.

2

87705198

WEDGE

Unload Detect Module, X-133F1

1шт.

2

84807680

PLUG

Unload Detect Module, X-133F1

3шт.

2

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Unload Detect Module, X-133F1

4шт.

3

87700156

CONTACT HOUSING,Female, 12 Pole

Unload Detect Module, X-132F1

1шт.

3

87705198

WEDGE

Unload Detect Module, X-132F1

1шт.

3

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Unload Detect Module, X-132F1

12шт.

4

87692855

CONTACT HOUSING,Male, 2 Cavities

RH Foam Marker Diode, Liquid, X-415F1

1шт.

4

225123C1

TERMINAL CONNECTOR,Tin, 0.8mm

RH Foam Marker Diode, Liquid, X-415F1

2шт.

4

87680701

SEAL

RH Foam Marker Diode, Liquid, X-415F1

2шт.

4

BN16174

DIODE,600V, 3A

3A, 600V, RH Foam Marker Diode, Liquid, X-415F1

1шт.

5

87692855

CONTACT HOUSING,Male, 2 Cavities

LH Foam Marker Diode, Liquid, X-416F1

1шт.

5

225123C1

TERMINAL CONNECTOR,Tin, 0.8mm

LH Foam Marker Diode, Liquid, X-416F1

2шт.

5

87680701

SEAL

LH Foam Marker Diode, Liquid, X-416F1

1шт.

5

BN16174

DIODE,600V, 3A

3A, 600V, LH Foam Marker Diode, Liquid, X-416F1

1шт.

6

87695582

ELEC CONNECTOR,Female, 2 Pole

RH Tip Out, X-409F1

1шт.

6

87695649

ELEC CONNECTOR,Locking, Green

Wedge, RH Tip Out, X-409F1

1шт.

6

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

RH Tip Out, X-409F1

2шт.

7

87695582

ELEC CONNECTOR,Female, 2 Pole

LH Tip Out, X-411F1

1шт.

7

87695649

ELEC CONNECTOR,Locking, Green

Wedge, LH Tip Out, X-411F1

1шт.

7

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

LH Tip Out, X-411F1

2шт.

8

87695582

ELEC CONNECTOR,Female, 2 Pole

RH Fold Out, X-403F1

1шт.

8

87695649

ELEC CONNECTOR,Locking, Green

Wedge, RH Fold Out, X-403F1

1шт.

8

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

RH Fold Out, X-403F1

2шт.

9

87695582

ELEC CONNECTOR,Female, 2 Pole

RH Boom Level Down, X-404F1

1шт.

9

87695649

ELEC CONNECTOR,Locking, Green

Wedge, RH Boom Level Down, X-404F1

1шт.

9

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

RH Boom Level Down, X-404F1

2шт.

10

87695582

ELEC CONNECTOR,Female, 2 Pole

LH Boom Level Down, X-407F1

1шт.

10

87695649

ELEC CONNECTOR,Locking, Green

Wedge, LH Boom Level Down, X-407F1

1шт.

10

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

LH Boom Level Down, X-407F1

2шт.

11

87695582

ELEC CONNECTOR,Female, 2 Pole

LH Fold Out, X-400F1

1шт.

11

87695649

ELEC CONNECTOR,Locking, Green

Wedge, LH Fold Out, X-400F1

1шт.

11

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

LH Fold Out, X-400F1

2шт.

12

87695582

ELEC CONNECTOR,Female, 2 Pole

Unload, X-412F1

1шт.

12

87695649

ELEC CONNECTOR,Locking, Green

Wedge, Unload, X-412F1

1шт.

12

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Unload, X-412F1

2шт.

13

87695582

ELEC CONNECTOR,Female, 2 Pole

LH Fold In, X-401F1

1шт.

13

87695649

ELEC CONNECTOR,Locking, Green

Wedge, LH Fold In, X-401F1

1шт.

13

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

LH Fold In, X-401F1

2шт.

14

87695582

ELEC CONNECTOR,Female, 2 Pole

LH Boom Level Up, X-406F1

1шт.

14

87695649

ELEC CONNECTOR,Locking, Green

Wedge, LH Boom Level Up, X-406F1

1шт.

14

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

LH Boom Level Up, X-406F1

2шт.

15

87695582

ELEC CONNECTOR,Female, 2 Pole

RH Boom Level Up, X-405F1

1шт.

15

87695649

ELEC CONNECTOR,Locking, Green

Wedge, RH Boom Level Up, X-405F1

1шт.

15

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

RH Boom Level Up, X-405F1

2шт.

16

87695582

ELEC CONNECTOR,Female, 2 Pole

RH Fold In, X-402F1

1шт.

16

87695649

ELEC CONNECTOR,Locking, Green

Wedge, RH Fold In, X-402F1

1шт.

16

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

RH Fold In, X-402F1

2шт.

17

87695582

ELEC CONNECTOR,Female, 2 Pole

LH Tip In, X-410F1

1шт.

17

87695649

ELEC CONNECTOR,Locking, Green

Wedge, LH Tip In, X-410F1

1шт.

17

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

LH Tip In, X-410F1

2шт.

18

87695582

ELEC CONNECTOR,Female, 2 Pole

RH Tip In, X-408F1

1шт.

18

87695649

ELEC CONNECTOR,Locking, Green

Wedge, RH Tip In, X-408F1

1шт.

18

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

RH Tip In, X-408F1

2шт.

19

87695582

ELEC CONNECTOR,Female, 2 Pole

Internal Wash, X-420F1

1шт.

19

87695649

ELEC CONNECTOR,Locking, Green

Wedge, Internal Wash, X-420F1

1шт.

19

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Internal Wash, X-420F1

2шт.

20

87695592

CONTACT HOUSING,Female, 12 Pole

Splice, X-425F1

1шт.

20

87695651

LOCKING TAB,Wedge Lock

Splice, X-425F1

1шт.

20

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Splice, X-425F1

11шт.

20

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Splice, X-425F1

1шт.

21

87269436

SOCKET/RECEPTACLE

12 Way Splice Pack, SP-425M1

1шт.

21

87698541

LOCKING TAB,Wedge Lock, 12-Pin

12 Way Splice Pack, SP-425M1

1шт.

22

87695592

CONTACT HOUSING,Female, 12 Pole

Splice, X-426F1

1шт.

22

87695651

LOCKING TAB,Wedge Lock

Splice, X-426F1

1шт.

22

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Splice, X-426F1

11шт.

22

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Splice, X-426F1

1шт.

23

87269436

SOCKET/RECEPTACLE

12 Way Splice Pack, SP-426M1

1шт.

23

87698541

LOCKING TAB,Wedge Lock, 12-Pin

12 Way Splice Pack, SP-426M1

1шт.

24

87692855

CONTACT HOUSING,Male, 2 Cavities

Foam Motor, X-417F1

1шт.

24

225123C1

TERMINAL CONNECTOR,Tin, 0.8mm

Foam Motor, X-417F1

2шт.

24

87680701

SEAL

Foam Motor, X-417F1

2шт.

25

380840A1

TERMINAL CONNECTOR,Female, 31 Cavities

Cab Harness Bulkhead, XB-4F1

1шт.

25

84068583

PLUG,12 - 16 Ga, White

Cab Harness Bulkhead, XB-4F1

9шт.

25

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Cab Harness Bulkhead, XB-4F1

18шт.

26

84140737

TERMINAL CONNECTOR

Chassis Ground, G1-HF1

1шт.

27

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

External Wash Switch, X-423M1

1шт.

27

87692882

ELEC. TERMINAL PIN

External Wash Switch, X-423M1

2шт.

27

87680701

SEAL

External Wash Switch, X-423M1

2шт.

28

87692855

CONTACT HOUSING,Male, 2 Cavities

Cap For External Wash Switch, X-423F1

1шт.

28

87686742

PLUG

Cap For External Wash Switch, X-423F1

2шт.

29

87695582

ELEC CONNECTOR,Female, 2 Pole

External Wash, X-422F1

1шт.

29

87695649

ELEC CONNECTOR,Locking, Green

External Wash, X-422F1

1шт.

29

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

External Wash, X-422F1

1шт.

29

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

External Wash, X-422F1

1шт.

30

87692855

CONTACT HOUSING,Male, 2 Cavities

RH Foam Marker Diode, Air, X-421F1

1шт.

30

225123C1

TERMINAL CONNECTOR,Tin, 0.8mm

RH Foam Marker Diode, Air, X-421F1

2шт.

30

87680701

SEAL

RH Foam Marker Diode, Air, X-421F1

2шт.

30

BN16172

DIODE

3A, 600V, RH Foam Marker Diode, Air, X-421F1

1шт.

31

87692855

CONTACT HOUSING,Male, 2 Cavities

LH Foam Marker Diode, Air, X-414F1

1шт.

31

225123C1

TERMINAL CONNECTOR,Tin, 0.8mm

LH Foam Marker Diode, Air, X-414F1

2шт.

31

87680701

SEAL

LH Foam Marker Diode, Air, X-414F1

2шт.

31

BN16172

DIODE

3A, 600V, LH Foam Marker Diode, Air, X-414F1

1шт.

32

87644909

WIRE CONNECTOR,Female, 3 Pins

Internal Wash Valve, X-419F1

1шт.

32

87692882

ELEC. TERMINAL PIN

Internal Wash Valve, X-419F1

3шт.

32

87680701

SEAL

Seal, Internal Wash Valve, X-419F1

3шт.

Выбрано товаров: 97
