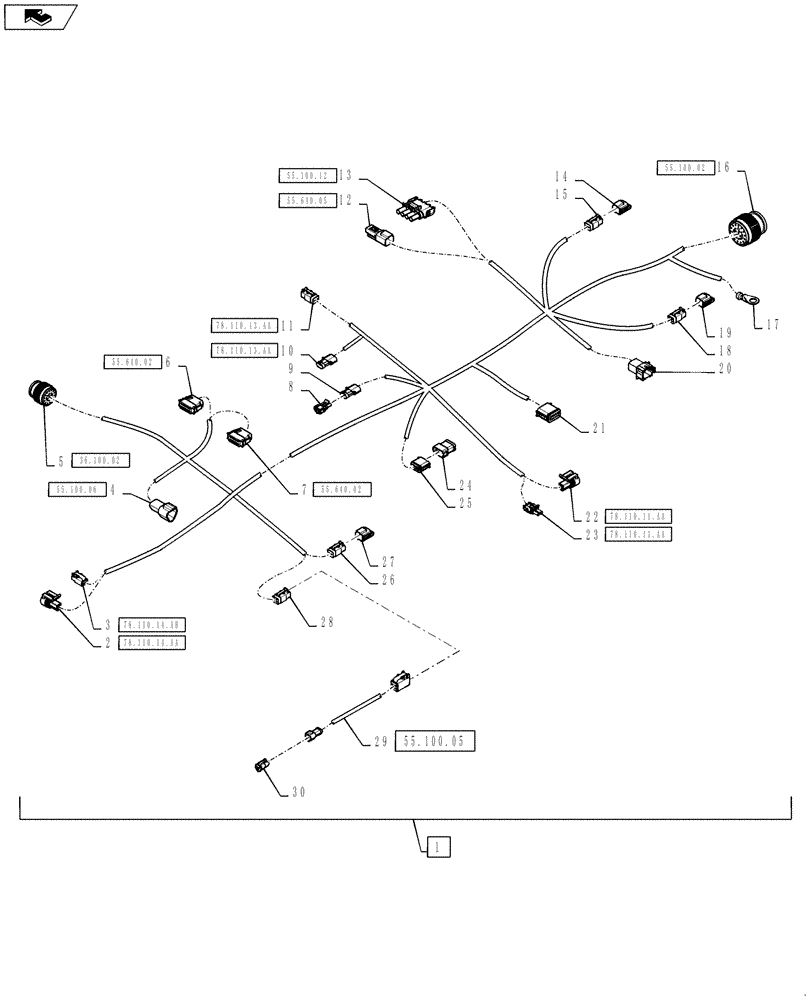

Запчасти Case IH 610 (55.100.03) - PRODUCT CONTROL HARNESS, 610 (55) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
84195740
WIRE HARNESS
Product Control, Includes Ref 2 - 30
1шт.
2
87692837
WIRE CONNECTOR,Female, 3 Pole
Boom PSI, X-518F1
1шт.
2
87693328
TERMINAL
Boom PSI, X-518F1
3шт.
3
87696551
CONTACT HOUSING,Female, 3 Pole
Flowmeter, X-519F1
1шт.
3
87705586
WEDGE
Flowmeter, X-519F1
1шт.
3
223953A1
SOCKET/RECEPTACLE
Flowmeter, X-519F1
3шт.
4
87695723
ELEC CONNECTOR,Male , 3 Pole
RH/LH Boom Stabilizer, X-521M1
1шт.
4
87695625
WIRE CONNECTOR,Locking, Green
RH/LH Boom Stabilizer, X-521M1
1шт.
4
381417A1
TERMINAL,Male, Nickel, 0.50 - 1.00mm
RH/LH Boom Stabilizer, X-521M1
3шт.
5
380836A1
TERMINAL CONNECTOR
Pneumatic Controls, X-501F1
1шт.
5
84068583
PLUG,12 - 16 Ga, White
Pneumatic Controls, X-501F1
9шт.
5
225241C1
SOCKET
Pneumatic Controls, X-501F1
14шт.
6
87705198
WEDGE
Product Node, X-552F1
1шт.
6
84807680
PLUG
Product Node, X-552F1
4шт.
6
87696954
TERMINAL,Female, Nickel, 0.35 - 1.50mm
Product Node, X-552F1
6шт.
6
225039C1
TERMINAL
Product Node, X-552F1
2шт.
7
87705101
MULTIPOLE CONNECTOR,Female, 12 Pole
Product Node, X-553F1
1шт.
7
87705198
WEDGE
Product Node, X-553F1
1шт.
7
84807680
PLUG
Product Node, X-553F1
3шт.
7
87696954
TERMINAL,Female, Nickel, 0.35 - 1.50mm
Product Node, X-553F1
9шт.
8
87692877
MULTIPOLE CONNECTOR,Male, 2 Cavities
Accessory Power, X-510M1
1шт.
8
87692882
ELEC. TERMINAL PIN
Accessory Power, X-510M1
2шт.
9
87692855
CONTACT HOUSING,Male, 2 Cavities
Cap For Accessory Power, X-510F1
1шт.
9
87686742
PLUG
Cap For Accessory Power, X-510F1
2шт.
10
87692877
MULTIPOLE CONNECTOR,Male, 2 Cavities
Product Pump Pressure Switch, X-515M1
1шт.
10
225120C1
TERMINAL CONNECTOR,Tin, 0.8mm
Product Pump Pressure Switch, X-515M1
2шт.
11
87695582
ELEC CONNECTOR,Female, 2 Pole
Product Pump, X-504F1
1шт.
11
87695649
ELEC CONNECTOR,Locking, Green
Product Pump, X-504F1
1шт.
11
86500036
TERMINAL,Female, Nickel, 0.75 - 2mm
Product Pump, X-504F1
1шт.
12
87695584
CONTACT HOUSING,Male, 2 Cavities
Boost Module, X-520M1
1шт.
12
225366C1
ELEC. TERMINAL PIN,Male, Gold, 0.75 - 2.00mm
Boost Module, X-520M1
2шт.
13
245486C1
ELEC CONNECTOR,4 Pin
Remote/Aim, X-517F1
1шт.
13
225120C1
TERMINAL CONNECTOR,Tin, 0.8mm
Remote/Aim, X-517F1
4шт.
14
84391159
WIRE CONNECTOR
Cap For Control Power, C500M1
1шт.
15
87695582
ELEC CONNECTOR,Female, 2 Pole
Control Power, X-500F1
1шт.
15
87695921
CONTACT,Female, Nickel, 0.50 - 1.00mm
Control Power, X-500F1
2шт.
16
380841A1
TERMINAL CONNECTOR
Product Harness Bulkhead, XB-5F1
1шт.
16
84068583
PLUG,12 - 16 Ga, White
Product Harness Bulkhead, XB-5F1
13шт.
16
225039C1
TERMINAL
Product Harness Bulkhead, XB-5F1
18шт.
16
225241C1
SOCKET
Product Harness Bulkhead, XB-5F1
2шт.
16
225365C1
SOCKET
Product Harness Bulkhead, XB-5F1
2шт.
17
84279551
ELEC CONNECTOR,1.00 - 2.50mm
Power Interface, GI-PFL
1шт.
18
87694153
CONTACT HOUSING,Female, 4 Cavities
Can Buss, X-209F1
1шт.
18
84074640
LOCKING TAB,Wedge Lock
Wedge, Can Buss, X-209F1
1шт.
18
225365C1
SOCKET
Can Buss, X-209F1
4шт.
19
84391166
WIRE CONNECTOR,Male, 4 Pins
Cap For Can Buss, X-209M1
1шт.
20
87695724
ELEC CONNECTOR,Male, 12 Pole
Boom Section Interface, X-523M1
1шт.
20
87698541
LOCKING TAB,Wedge Lock, 12-Pin
Boom Section Interface, X-523M1
1шт.
20
87695652
PLUG,12 - 16 Ga, White
Boom Section Interface, X-523M1
5шт.
20
381417A1
TERMINAL,Male, Nickel, 0.50 - 1.00mm
Boom Section Interface, X-523M1
7шт.
21
87695592
CONTACT HOUSING,Female, 12 Pole
Boom Section Interface, X-523F1
1шт.
21
87695651
LOCKING TAB,Wedge Lock
Boom Section Interface, X-523F1
1шт.
21
87695652
PLUG,12 - 16 Ga, White
Boom Section Interface, X-523F1
5шт.
21
87695921
CONTACT,Female, Nickel, 0.50 - 1.00mm
Boom Section Interface, X-523F1
7шт.
22
87692837
WIRE CONNECTOR,Female, 3 Pole
Sparge PSI Sensors, X-516F1
1шт.
22
87693328
TERMINAL
Sparge PSI Sensors, X-516F1
3шт.
23
87692855
CONTACT HOUSING,Male, 2 Cavities
Sparge Valve, X-511F1
1шт.
23
225123C1
TERMINAL CONNECTOR,Tin, 0.8mm
Sparge Valve, X-511F1
2шт.
24
87695592
CONTACT HOUSING,Female, 12 Pole
Splice 155 And 757, X-155F1
1шт.
24
87695651
LOCKING TAB,Wedge Lock
Splice 155 And 757, X-155F1
1шт.
24
84068583
PLUG,12 - 16 Ga, White
Splice 155 And 757, X-155F1
1шт.
24
87695921
CONTACT,Female, Nickel, 0.50 - 1.00mm
Splice 155 And 757, X-155F1
6шт.
24
86500036
TERMINAL,Female, Nickel, 0.75 - 2mm
Splice 155 And 757, X-155F1
5шт.
25
87381540
ELEC CONNECTOR
Splice Pack 2x6 Way, SP-155M1
1шт.
26
87695582
ELEC CONNECTOR,Female, 2 Pole
Control Power, X-502F1
1шт.
26
87695649
ELEC CONNECTOR,Locking, Green
Control Power, X-502F1
1шт.
26
86500036
TERMINAL,Female, Nickel, 0.75 - 2mm
Control Power, X-502F1
2шт.
27
84391159
WIRE CONNECTOR
Cap For Control Power, X-502M1
1шт.
28
87694153
CONTACT HOUSING,Female, 4 Cavities
Application Can Buss, X-210F1
1шт.
28
225365C1
SOCKET
Application Can Buss, X-210F1
4шт.
29
87267294
WIRE HARNESS
Active Terminator Adaptor Harness, H210M
1шт.
See Fig 55.100.05 For Service Parts
1шт.
30
84058092
CONTACT HOUSING,120 Ohm Resistor
Terminator, 120 Ohm Terminating Resistor, X-210MT
1шт.
Выбрано товаров: 76
