Запчасти Case IH 610 (55.100.02) - LH CAB COMPARTMENT HARNESS, 610 (55) - ELECTRICAL SYSTEMS

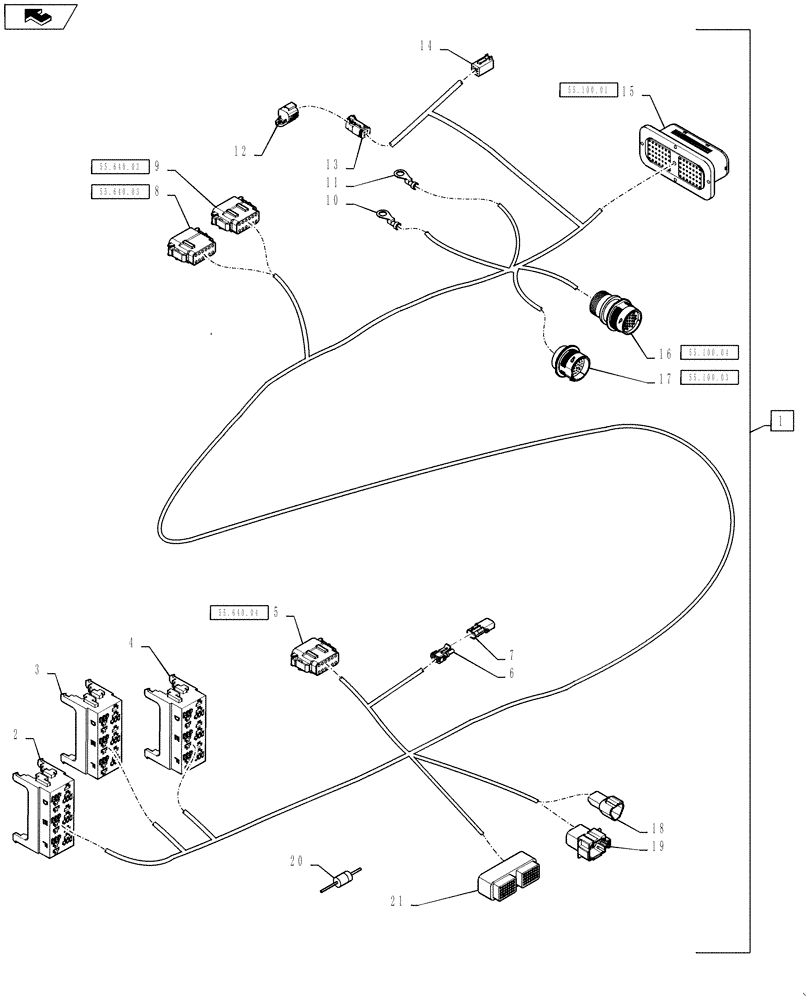

Схема запчастей Case IH 610 - (55.100.02) - LH CAB COMPARTMENT HARNESS, 610 (55) - ELECTRICAL SYSTEMS
5
1
4
18
home
55.100.03
55.100.01
55.640.04
55.640.03
55.640.03
55.100.04
11
6
14
8
16
3
20
2
13
9
15
7
12
19
17
10
21

Артикул

Название

Примечание

Количество

1

84533056

WIRE HARNESS

LH Cab Compartment, Includes Ref 2 - 21

1шт.

2

87705041

MULTIPOLE CONNECTOR,Female, 30 Pole

Relay Panel 6, RR6L

1шт.

2

87704921

LOCK

Relay Panel 6, RR6L

1шт.

2

86509590

RELAY

20 Amp, Relay Panel 6, RR6L

3шт.

2

182135A1

TERMINAL CONNECTOR

Relay Panel 6, RR6L

9шт.

2

182128A1

CONNECTOR, ELEC

CONNECTOR Relay Panel 6, RR6L

3шт.

3

87705041

MULTIPOLE CONNECTOR,Female, 30 Pole

Relay Panel 5, RR5L

1шт.

3

87704921

LOCK

Relay Panel 5, RR5L

1шт.

3

86509590

RELAY

20 Amp, Relay Panel 5, RR5L

6шт.

3

182135A1

TERMINAL CONNECTOR

Relay Panel 5, RR5L

15шт.

3

182128A1

CONNECTOR, ELEC

CONNECTOR Relay Panel 5, RR5L

10шт.

4

87705041

MULTIPOLE CONNECTOR,Female, 30 Pole

Relay Panel 4, RR4L

1шт.

4

87704921

LOCK

Relay Panel 4, RR4L

1шт.

4

86509590

RELAY

20 Amp, Relay Panel 4, RR4L

6шт.

4

182135A1

TERMINAL CONNECTOR

Relay Panel 4, RR4L

15шт.

4

182128A1

CONNECTOR, ELEC

CONNECTOR Relay Panel 4, RR4L

10шт.

5

87700156

CONTACT HOUSING,Female, 12 Pole

Foam Marker, 204F1

1шт.

5

87705198

WEDGE

Foam Marker, 204F1

1шт.

5

225039C1

TERMINAL

Foam Marker, 204F1

9шт.

6

87692855

CONTACT HOUSING,Male, 2 Cavities

Foam Advance, 202F1

1шт.

6

87692882

ELEC. TERMINAL PIN

Foam Advance, 202F1

2шт.

7

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Foam Advance Jumper, 202M1

1шт.

7

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

Foam Advance Jumper, 202M1

2шт.

8

87705101

MULTIPOLE CONNECTOR,Female, 12 Pole

Speed Node, 251F1

1шт.

8

87705198

WEDGE

Speed Node, 251F1

1шт.

8

225039C1

TERMINAL

Speed Node, 251F1

3шт.

8

223953A1

SOCKET/RECEPTACLE

Speed Node, 251F1

2шт.

9

87700156

CONTACT HOUSING,Female, 12 Pole

Speed Node, 249F1

1шт.

9

87705198

WEDGE

Speed Node, 249F1

1шт.

9

225039C1

TERMINAL

Speed Node, 249F1

9шт.

9

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Speed Node, 249F1

1шт.

10

84279551

ELEC CONNECTOR,1.00 - 2.50mm

M12 Stud, CG3.1

1шт.

11

84140737

TERMINAL CONNECTOR

Chassis Ground, G1-CM1

1шт.

12

84391166

WIRE CONNECTOR,Male, 4 Pins

Cap, 211M1

1шт.

13

87694153

CONTACT HOUSING,Female, 4 Cavities

Product Can, 211F1

1шт.

13

84074640

LOCKING TAB,Wedge Lock

Product Can, 211F1

1шт.

13

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Product Can, 211F1

2шт.

13

225365C1

SOCKET

Product Can, 211F1

2шт.

14

76074075

ELEC CONNECTOR

Power Ground Port, 200F1

1шт.

14

87692882

ELEC. TERMINAL PIN

Power Ground Port, 200F1

3шт.

14

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Power Ground Port, 200F1

1шт.

15

87707114

CONTACT HOUSING,Male, 70 Pole

RH Console Harness Interface, 128M1

1шт.

15

225241C1

SOCKET

RH Console Harness Interface, 128M1

56шт.

15

225366C1

ELEC. TERMINAL PIN,Male, Gold, 0.75 - 2.00mm

RH Console Harness Interface, 128M1

2шт.

16

87696945

MULTIPOLE CONNECTOR,Male, 31 Pole

Hydraulic Harness Bulkhead, XB-4M1

1шт.

16

87271930

NUT

Hydraulic Harness Bulkhead, XB-4M1

1шт.

16

225241C1

SOCKET

Hydraulic Harness Bulkhead, XB-4M1

18шт.

17

87700815

MULTIPOLE CONNECTOR,Male, 35 Pole

Product Control Harness Bulkhead, XB-5M1

1шт.

17

87271930

NUT

Product Control Harness Bulkhead, XB-5M1

1шт.

17

223951A1

PIN

Product Control Harness Bulkhead, XB-5M1

4шт.

17

225039C1

TERMINAL

Product Control Harness Bulkhead, XB-5M1

18шт.

17

225241C1

SOCKET

Product Control Harness Bulkhead, XB-5M1

2шт.

18

87695723

ELEC CONNECTOR,Male , 3 Pole

Transmission Interface, 090M1

1шт.

18

87695625

WIRE CONNECTOR,Locking, Green

Transmission Interface, 090M1

1шт.

18

225365C1

SOCKET

Transmission Interface, 090M1

2шт.

19

225320C1

ELEC CONNECTOR

Transmission Interface, 903M1

1шт.

19

225322C1

WEDGE

Transmission Interface, 903M1

1шт.

19

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

Transmission Interface, 903M1

8шт.

20

BN16174

DIODE,600V, 3A

3A, 600V, 1CM1

1шт.

21

87707115

CONTACT HOUSING,Female, 70 Pole

Cab Harness Interface, 080F1

1шт.

21

87695915

ELEC. TERMINAL PIN,Male, Nickel, 1 - 2 mm

Cab Harness Interface, 080F1

29шт.

21

225365C1

SOCKET

Cab Harness Interface, 080F1

4шт.

22

86511817

SCREW,Pan, M3 x 0.5 x 20mm, Cl 4.8

M3 x 20, PHD, 4.8, ZND, Not Shown, Used To Mount Harness To RH Console Harness

3шт.

23

86509827

LOCK WASHER,M3

Not Shown, Used To Mount Harness To RH Console Harness

3шт.

24

86508812

NUT,M3, Cl 8

Not Shown, Used To Mount Harness To RH Console Harness

3шт.

Выбрано товаров: 65
