(39.130.11) - DOOR STOP ASSEMBLY, USED ON 3 WHEELER ONLY

Запчасти Case IH 610 (39.130.11) - DOOR STOP ASSEMBLY, USED ON 3 WHEELER ONLY (39) - FRAMES AND BALLASTING

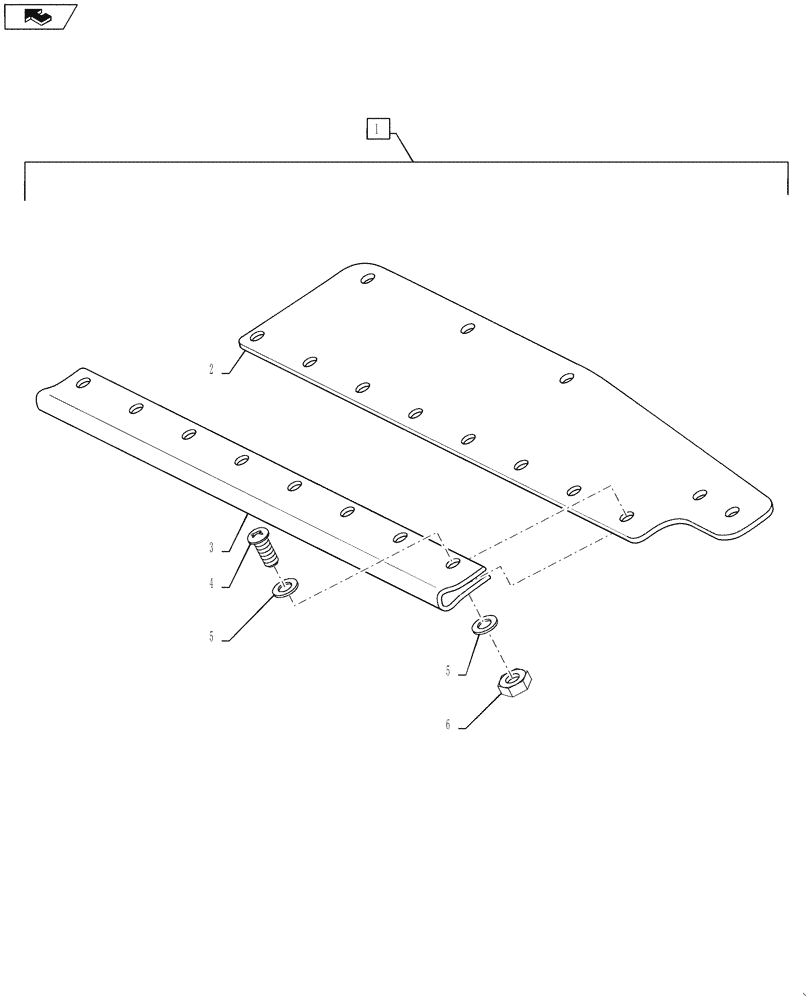

Схема запчастей Case IH 610 - (39.130.11) - DOOR STOP ASSEMBLY, USED ON 3 WHEELER ONLY (39) - FRAMES AND BALLASTING
home
6
2
5
1
5
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87600169

DOOR

Complete Assembly, Includes Ref 2 - 6

1шт.

2

87554288

SUPPORT

Door Stop

1шт.

3

87549646

BUMPER

Rubber

1шт.

4

BN315877

SCREW,1/4" - 20 x 1"

1/4-20 X 1

8шт.

5

87529304

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

6.6 x 25 x 1.6 mm

16шт.

6

BN320369

NUT

1/4-20, TLG5, DOR

8шт.
