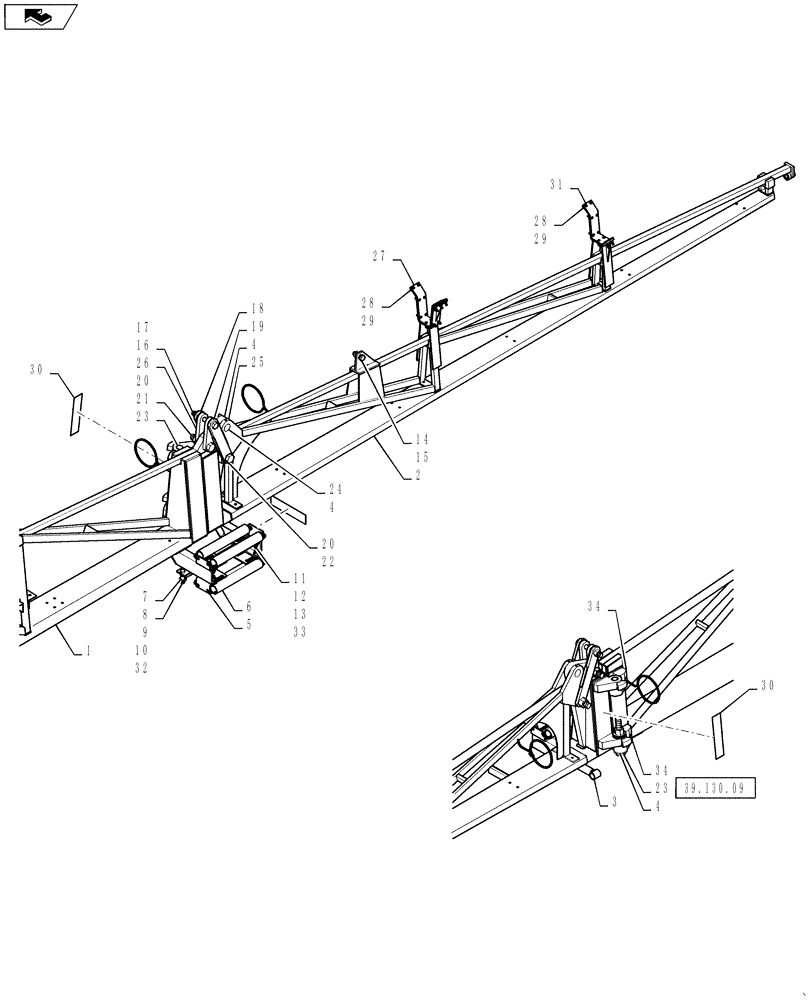

Запчасти Case IH 610 (39.130.07) - 60/85-FOOT BOOM ASSEMBLY, LH (39) - FRAMES AND BALLASTING

1

BN8191823

BOOM

LH Inner

1шт.

2

BN8191829

BOOM

LH Outer, Tip

1шт.

3

BN8191831

BRACKET

Retract, LH

1шт.

4

BN10151

LUBE NIPPLE

1/8"-27 Straight

3шт.

5

BN8191735

BRACKET

Adjustment

4шт.

6

BN2397941-50

SPRING

Tension, Heavy Duty, 1 13/16" OD x 13"

4шт.

7

87268250

SHOCK ABSORBER

14.73, 24.0

1шт.

8

87310267

BOLT

1/2-13 X 4, G5, DOR

2шт.

9

87310321

NUT,Prevailing Torque, 1/2"-13, GB, DOR

2шт.

10

87310600

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

4шт.

11

87310264

BOLT,7/16"-14 x 1.5", Grade 5, DOR

8шт.

12

87310320

NUT,7/16"-14, Grade B

8шт.

13

87310599

WASHER,0.5" ID x 1.25" OD x 0.08" Thk

0.5 x 1.25 x 0.083, CST, DOR

8шт.

14

87310421

BOLT

5/8-11 X 2.5, G8, DOR

1шт.

15

87310322

NUT

5/8-11, Gr 8, DOR

1шт.

16

87310328

BOLT

3/4-16 X 5.5, Gr 5, DOR

1шт.

17

87310324

NUT

3/4-16, GR 5, DOR

1шт.

18

BN8191688

ARM

Hinge, Long

2шт.

19

87266415

ARM

Hinge, Poly, Long

2шт.

20

87343988

NUT

1"-8, Gr 5

2шт.

21

87535715

BOLT

1-8 X 4.5, GR 5, DOR

1шт.

22

87535717

BOLT

1"-8 x 6, G5

1шт.

23

87270239

REPAIR KIT

Boom Stabilizer

1шт.

See Fig 39.130.09 For Service Parts

1шт.

24

BN8191638

PIN

Boom Fold Back

1шт.

25

BN1912111F

SET SCREW,5/16" - 24 x 3/4"

SET SOC 5/16-24 X 3/4

2шт.

26

BN8191685

STRIP

Hinge Arm, Short

2шт.

27

BN8191734

CRADLE

Poly

1шт.

28

BN1912839C

BOLT

1/4"-20 x 1"

24шт.

29

BN50052

LOCK NUT,1/4"-20, USR, SS

24шт.

30

311864A1

REFLECTOR

Retroreflective Amber

2шт.

31

87266418

PROTECTION STRIP

Poly,Tip Cradle, Short

1шт.

32

87268251

BUSHING

Steel, .75 od x .53 id

2шт.

33

BN53802

WASHER

Beveled, 1/2"

8шт.

34

217-428

PLUG,Hex Soc, 1/8" - 27 NPTF

2шт.
