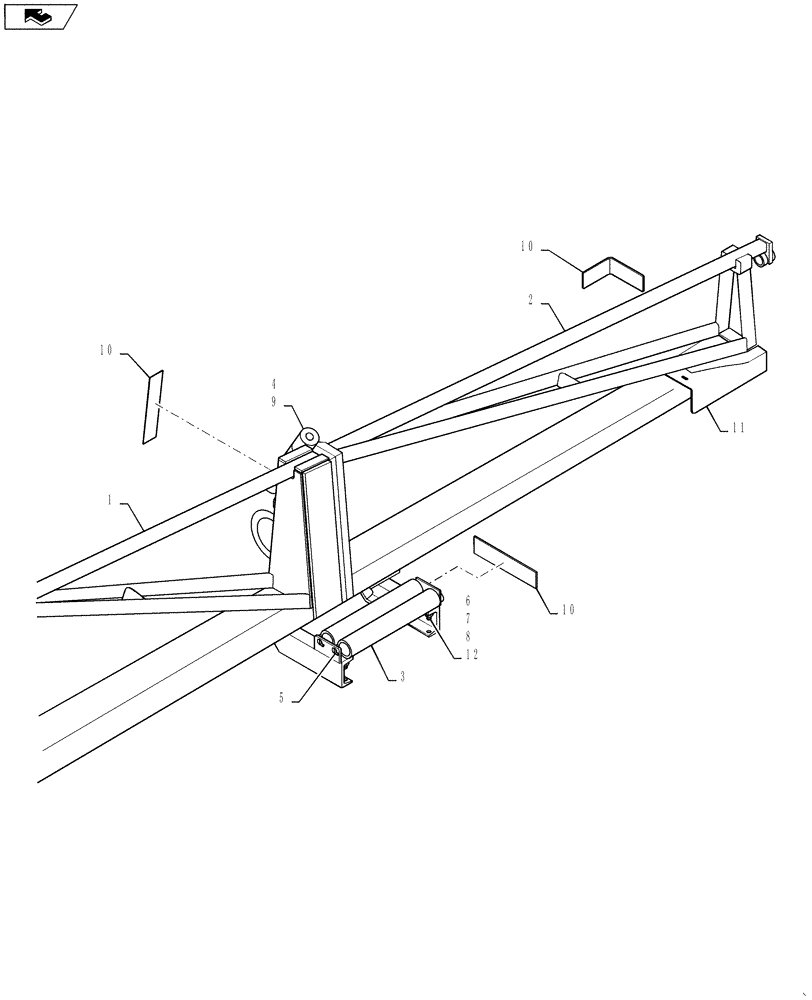

Запчасти Case IH 610 (39.130.05) - 70-FOOT BOOM ASSEMBLY, LH (39) - FRAMES AND BALLASTING

1

BN8191821

BOOM

LH Inner

1шт.

2

BN8191825

ARM

LH Outer, Tip

1шт.

3

BN2397941-50

SPRING

Tension, Heavy Duty, 1 13/16" OD x 13"

2шт.

4

BN8191695

SMALL PIN

Hinge

1шт.

5

BN8191735

BRACKET

Adjustment

2шт.

6

87310264

BOLT,7/16"-14 x 1.5", Grade 5, DOR

4шт.

7

87310320

NUT,7/16"-14, Grade B

4шт.

8

87310599

WASHER,0.5" ID x 1.25" OD x 0.08" Thk

0.5 x 1.25 x 0.083 CST DOR

4шт.

9

BN1630484

COTTER PIN

3/16 X 3

1шт.

10

311864A1

REFLECTOR

Retroreflective Amber

3шт.

11

BN320059

BRACKET

Reflector Mount

1шт.

12

BN53802

WASHER

Beveled, 1/2"

4шт.
