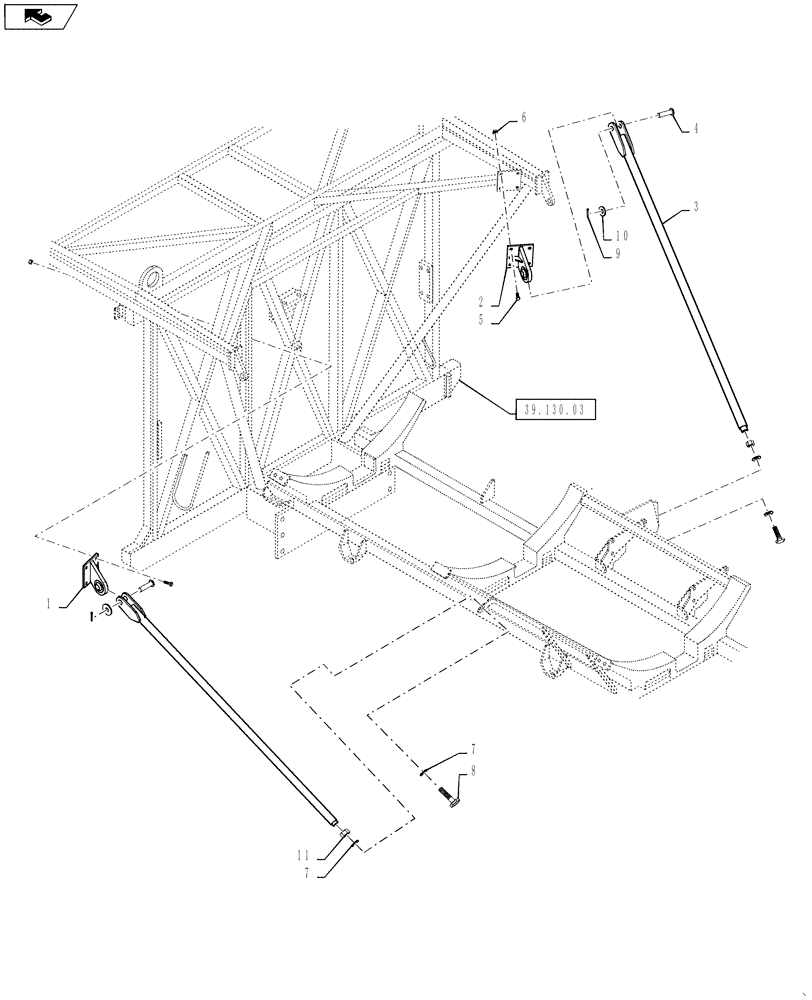

Запчасти Case IH 610 (39.130.04) - MAST BRACE (39) - FRAMES AND BALLASTING

1

87266424

ANCHOR

Support, RH

1шт.

2

87266425

ANCHOR

Support, LH

1шт.

3

87267111

SUPPORT

Mast

2шт.

4

439-52064

HEADED PIN,1 1/4" x 4"

2шт.

5

86980423

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

8шт.

6

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

8шт.

7

87529311

WASHER,26mm ID x 44mm OD x 5mm Thk

26 x 44 x 5 mm, HDN, DOR

4шт.

8

87342947

BOLT

Hex, 1"-8 x 4, G8, Full Thrd

2шт.

9

432-1632

COTTER PIN,1/4" x 2"

2шт.

10

87529309

WASHER,33mm ID x 56mm OD x 5mm Thk

33 x 56 x 5 mm HDN DOR

2шт.

11

87343673

NUT

1.000-8 GR8

4шт.
