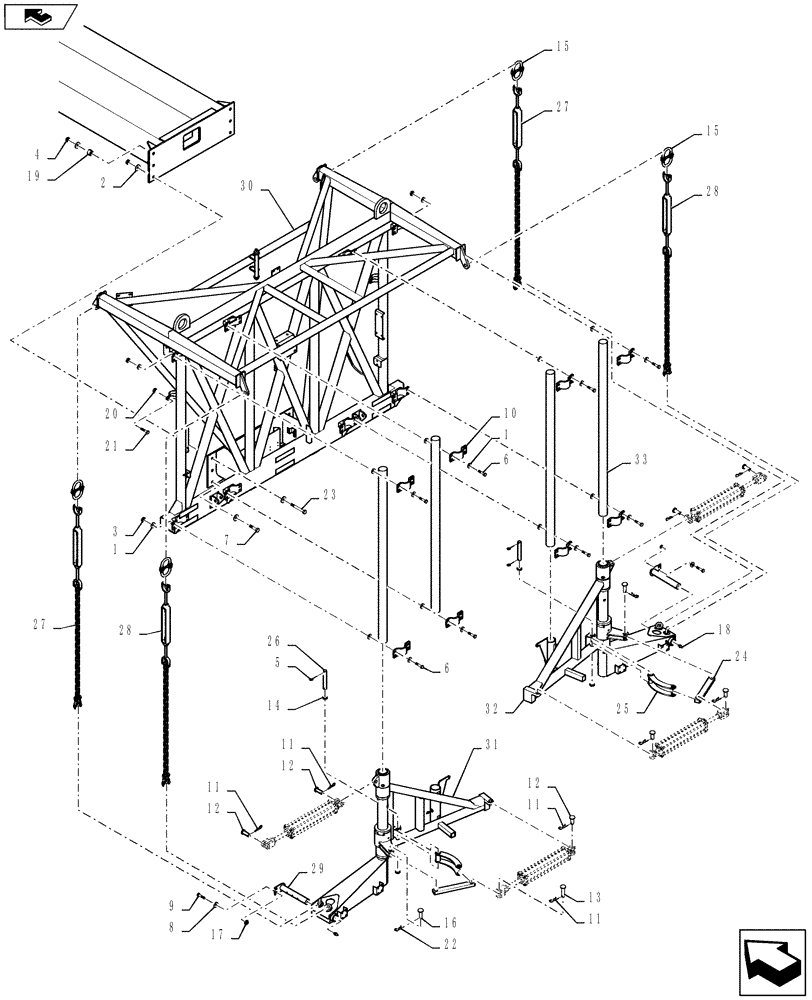

Запчасти Case IH 610 (39.130.03) - BOOM MAST ASSEMBLY (39) - FRAMES AND BALLASTING

1

87310607

WASHER,17.5mm ID x 34mm OD x 5mm Thk

17.5 x 34 x 5 mm, HDN, DOR

96шт.

2

87310608

WASHER,22mm ID x 44mm OD x 5mm Thk

22 x 44 x 5 mm, HDN, DOR

12шт.

3

832-44616

LOCK NUT

M16-2, CL10 DOR

32шт.

4

86980518

NUT,Hex, M20 - 2.5, Cl 8.8, DOR

6шт.

5

BN1630446

COTTER PIN

3/16" x 1 1/2"

4шт.

6

86980446

BOLT,Hex, M16 x 70mm, Cl 8.8

M16-2 X 70, 8.8, DOR

32шт.

7

87342141

BOLT,Hex, M20 x 65mm, Cl 8.8

M20-2.5 x 65, 8.8, DOR

4шт.

8

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

4шт.

9

86980424

BOLT,Hex, M12 x 1.75 x 45, Cl 8.8, DOR

4шт.

10

87619340

STRIP

Rod Capture

8шт.

11

BN2297612

PIN

Clip 3/16" Dia x 3 3/4"

8шт.

12

87735776

PIN,25.4mm OD x 111.5mm L

1" x 3.6", Boom Fold Cylinder, Base End

6шт.

13

BN318115

PIN

Boom Fold Cylinder, Rod End

2шт.

14

87529124

WASHER,1.06" ID x 2.5" OD x 0.17" Thk

1.062 x 2.50 x .165 CST, DOR

4шт.

15

BN2391225

CONNECTING LINK

A-337

4шт.

16

86632567

HEADED PIN,30.14mm OD x 66.55mm L

2шт.

17

84394065

LOCK NUT

M12-1.75, Flange

4шт.

18

BN2651853

LUBE NIPPLE

1/4" NPT

2шт.

19

86986163

SPACER

Rear Mount

2шт.

20

87310322

NUT

5/8-11, Gr 8, DOR

4шт.

21

87342847

BOLT

5/8"-11 x 1 3/4", G5, DOR

4шт.

22

432-1632

COTTER PIN,1/4" x 2"

2шт.

23

86980463

BOLT,Hex, M20 x 120mm, Cl 8.8

M20-2.5 x 120, 8.8, DOR

2шт.

24

BN319221

LINKAGE

Boom Fold Cylinder

2шт.

25

BN8090016

LINKAGE

Boom Fold Cylinder

2шт.

26

BN8090017

PIN

Boom Fold Cylinder Linkage

2шт.

27

BN8191171A

CHAIN

Assembly, Mast Front

2шт.

28

BN8191173A

CHAIN

Assembly, Mast Rear

2шт.

29

BN8191766

PIN

Boom Wing Level, Lower

2шт.

30

84158191

MAST ASSEMBLY

Titan, Liquid

1шт.

31

87270299

MOUNTING PLATE

Boom Pivot Cylinder Mount, LH

1шт.

32

87270300

MOUNTING PLATE

Boom Pivot Cylinder Mount, RH

1шт.

33

87267513

PIN,2.94mm OD x 73.81mm L

Center Mast Rail

4шт.
