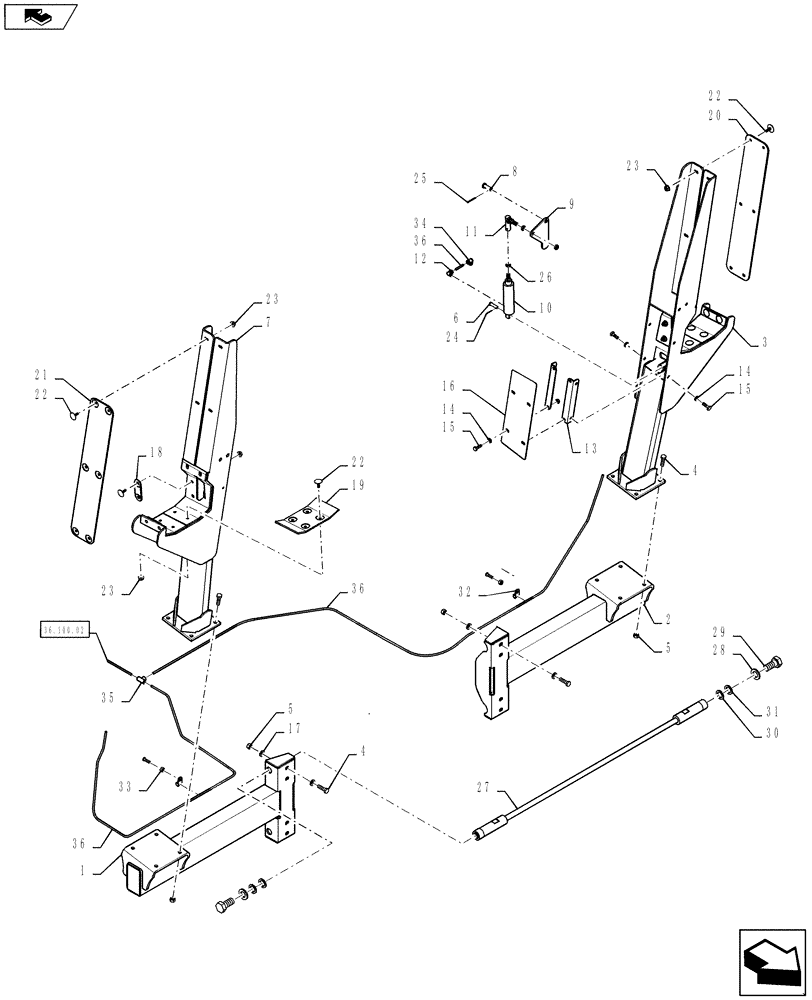

Запчасти Case IH 610 (39.130.01) - BOOM CRADLES, USED ON TITAN 4030/4530 & TITAN 4040/4540 (39) - FRAMES AND BALLASTING

1

84427897

SUPPORT

Cradle, LH

1шт.

2

84427898

SUPPORT

Cradle, RH

1шт.

2

47379065

SHIM

10 Gauge, Used on Ref 2 if Needed, Not Shown

1шт.

2

47379113

SHIM

12 Gauge, Used on Ref 2 if Needed, Not Shown

1шт.

3

343971A1

CRADLE

LH Boom, 4 Wheeler

1шт.

4

86980423

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

16шт.

5

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

16шт.

6

439-1624

HEADED PIN,3/8" x 1 1/2"

2шт.

7

343972A1

CRADLE

RH Boom, 4 Wheeler

1шт.

8

439-1824

HEADED PIN,1/2" x 1 1/2", G2

2шт.

9

343980A1

LOCK

Boom Cradle

2шт.

10

343977A1

HYDRAULIC CYLINDER,11.11mm Rod, 50.8mm Stroke

Boom Lock

2шт.

11

343988A1

BALL JOINT

7/16-20, With Grommet

2шт.

12

BN2399405

90 ELBOW

1/8" MPT x 1/4" OD Tube, Push Lock Fitting

2шт.

13

87266408

COVER

Mount

4шт.

14

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

6.6 x 12.5 x 2 mm, HDN, DOR

16шт.

15

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

16шт.

16

344232A1

COVER

Cradle Lock

2шт.

17

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

16шт.

18

343981A1

PAD

Boom Rest

4шт.

19

343982A1

PAD

Boom Rest, Cradle Bottom

2шт.

20

87266411

PAD

Boom Cradle, Upper, LH

1шт.

21

87266412

PAD

Boom Cradle, Upper, RH

1шт.

22

BN50779

BOLT,5/16"-18 X 1.00", EH, DOR

28шт.

23

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

28шт.

24

733-2520

COTTER PIN,M2.5 x 20

2шт.

25

733-4032

COTTER PIN,M4 x 32

2шт.

26

87343898

NUT

7/16-20, Gr 5, DOR

6шт.

27

84427899

CROSSBAR

Cradle

1шт.

28

87529311

WASHER,26mm ID x 44mm OD x 5mm Thk

26 x 44 x 5 mm, HDN, DOR

2шт.

29

87342583

BOLT

1"-8 x 2", 8, DOR

2шт.

30

87564722

WASHER,1.02" ID x 1.5" OD x 0.07" Thk

1.016 X 1.50 X .075 CST DOR

2шт.

31

87564721

WASHER,1.02" ID x 1.5" OD x 0.12" Thk

1.016 X 1.50 X .134, CST, DOR

2шт.

32

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

4шт.

33

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

4шт.

34

BN2399409

90 ELBOW

1/4" OD Tube, Push Lock Fitting

2шт.

35

BN2399408

UNION TEE

1/4" OD Tube, Push Lock Fitting

1шт.

36

BN2292089

AIR INTAKE TUBE

Synflex 1/4" Black, Bulk, 27' Required

1шт.

37

47379065

SHIM

Cradle, 10 Gage, Not Shown, Used To Add Clearence Between LH Door And LH Cradle. Place Between LH Cradle Support And Cab Mounting Post

1шт.

38

47379113

SHIM

Cradle, 12 Gage, Not Shown, Used To Add Clearence Between LH Door And LH Cradle. Place Between LH Cradle Support And Cab Mounting Post

1шт.
