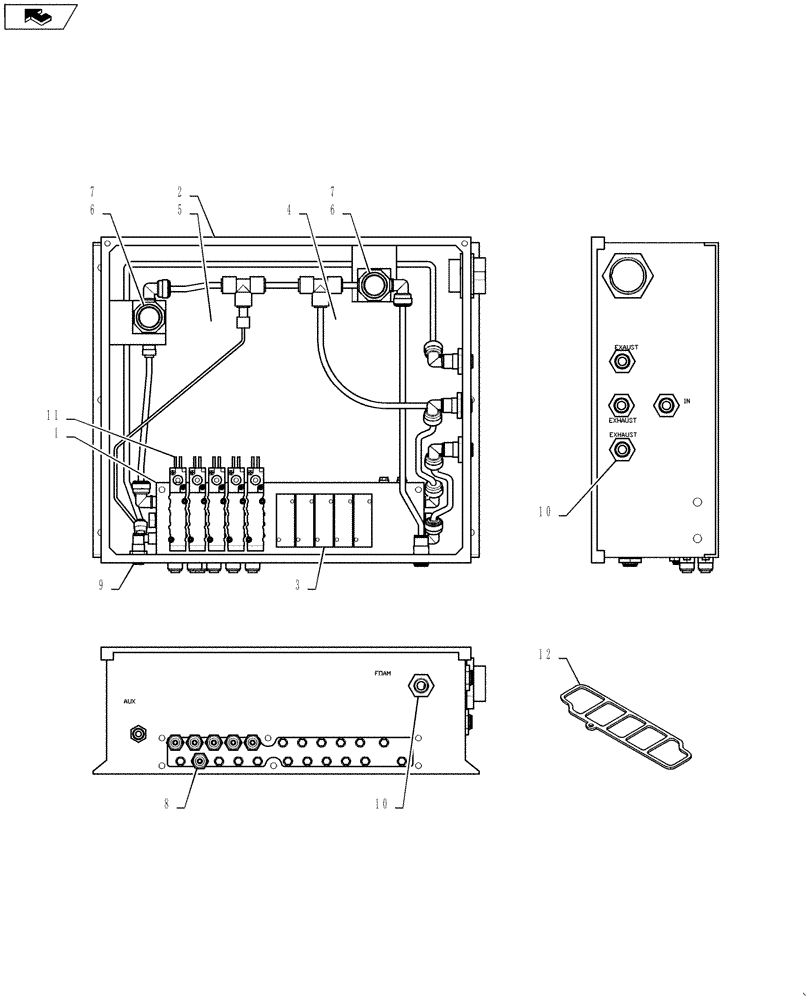

Запчасти Case IH 610 (36.100.02) - MAIN PNEUMATIC VALVE AND ENCLOSURE (36) - PNEUMATIC SYSTEM

BN325785

PNEUMATIC VALVE

Enclosure Assembly

1шт.

1

342973A1

MANIFOLD

Pneumatic, 11 Section

1шт.

2

342974A1

BOX

Pneumatic Valve

1шт.

3

342975A1

PLATE

Pneumatic Valve Section Blanking Cover

5шт.

4

86986803

GAUGE

0-30 PSI, 1/8" NPT

1шт.

5

BN2390775

GAUGE

Air, 1-1/2", 0-100 PSI, 1/8" NPT

1шт.

6

87388151

REGULATOR

Air Pressure

2шт.

7

87388327

NUT

Panel Mount

2шт.

8

BN2399401

ADAPTER

1/4" MPT x 1/4" OD Tube, Push Lock Fitting

6шт.

9

BN324869

BULKHEAD

1/4" OD Tube, Push Lock Fitting

1шт.

10

BN324870

BULKHEAD

3/8" OD Tube, Push Lock Fitting

5шт.

11

BN325786

VALVE

Pneumatic, 4-Way, With Solenoid

5шт.

12

87269470

GASKET

Pneumatic Valve

1шт.
