(35.911.01) - BOOM LEVEL AND FOLD CYLINDER

Запчасти Case IH 610 (35.911.01) - BOOM LEVEL AND FOLD CYLINDER (35) - HYDRAULIC SYSTEMS

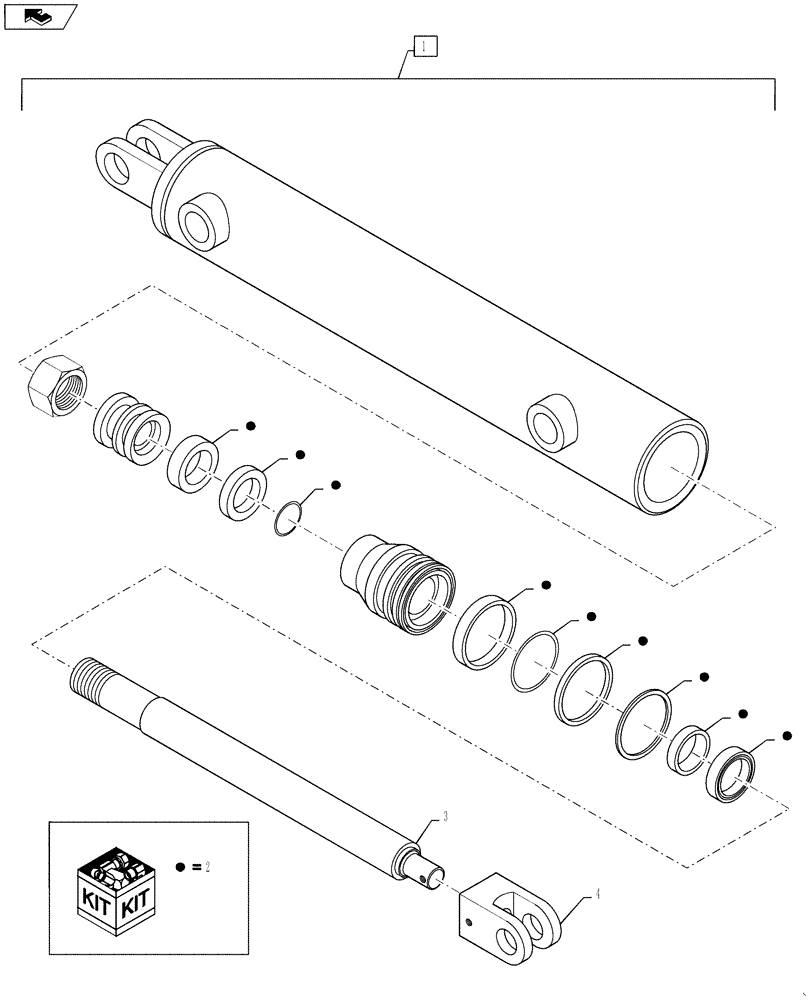

Схема запчастей Case IH 610 - (35.911.01) - BOOM LEVEL AND FOLD CYLINDER (35) - HYDRAULIC SYSTEMS
2
2
2
2
2
2
3
2
2
1
home
4
2
2
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87266454

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 457.2mm Stroke

3 x 18 x 1.25, Boom Level And Fold, Complete

1шт.

87266454R

Reman Cyl -- 3 x 18 x 1.25, Boom Level And Fold, Complete

REMAN-HYD CYLINDER

1шт.

87266454C

Return Number

CORE-HYD CYLINDER

1шт.

2

87268694

SEAL KIT

3"

1шт.

3

87272542

ROD

1шт.

4

BN320129

CLEVIS

1шт.

Выбрано товаров: 6
