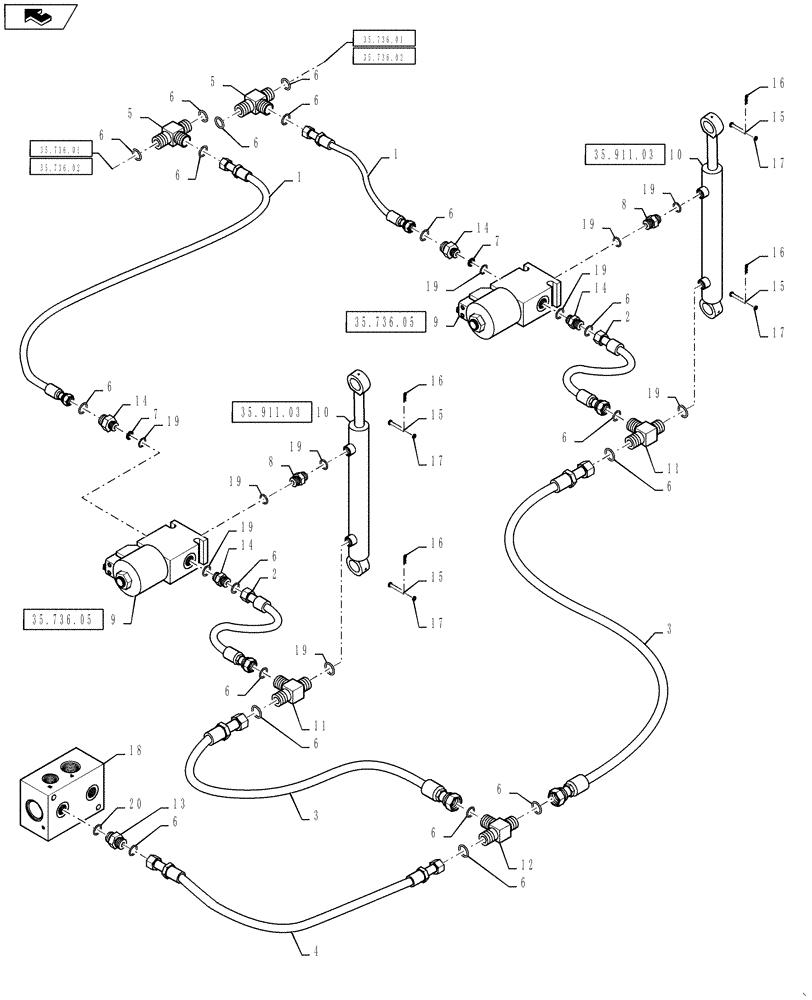

Запчасти Case IH 610 (35.736.04) - BOOM HYDRAULIC STABILIZER (35) - HYDRAULIC SYSTEMS

1

BN313336

HOSE

11/16-16 ORFS Swivel x 11/16-16 ORFS Swivel x 3/8" ID x 30" Long, Boom Level Accumulator To Boom Stabilization Valve

2шт.

2

BN307823

HOSE ASSY.

11/16-16 ORFS Swivel Elbow x 11/16-16 ORFS Swivel x 3/8" ID x 19.5" Long, Boom Stabilization Valve To Boom Stabilization Cylinder

2шт.

3

BN307804

HOSE ASSY.

11/16-16 ORFS Swivel x 11/16-16 ORFS Swivel x 3/8" ID x 37.5" Long, Boom Stabilization Cylinder To Chassis Return Manifold

2шт.

4

87265839

HOSE

11/16-16 ORFS Swivel x 11/16-16 ORFS Swivel Elbow x 3/8" ID x 215" Long, Boom Stabilization Cylinder To Chassis Return Manifold

1шт.

5

BN302435

TEE

11/16 -16 ORFS x 11/16 -16 ORFS Swivel

2шт.

This Fitting Is Located Between The Accumulator And The Hydraulic Line That Runs To The Boom Level Cylinder

1шт.

6

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

11/16", ORFS

20шт.

7

87265840

ORIFICE

.075 - 6 Disc

2шт.

8

BN313038

FITTING

9/16" -18 ORB x 9/16" -18 ORB

2шт.

9

87271739

VALVE SECTION

Boom Hydraulic Stabilizer Valve

2шт.

See Fig 35.736.05 For Service Parts

1шт.

10

87266460

CYLINDER,Double Acting, 34.92mm Rod, 549.4mm Stroke

2.5 x 21.62 x 1.375, Rear Stabilization

2шт.

See Fig 35.911.03 For Service Parts

1шт.

87266460R

REMAN-HYD CYLINDER

610 - LIQUID SYSTEM APPLICATOR (2/12-)

1шт.

87266460C

CORE-HYD CYLINDER

Return Number

1шт.

11

BN302583

FITTING

11/16" -16 ORFS x 9/16" -18 ORB x 11/16" -16 ORFS

2шт.

12

BN302512

FITTING

11/16-16 ORFS

1шт.

13

BN302647

FITTING

11/16" -16 OFRS x 3/4" -16 ORB

1шт.

14

BN302646

FITTING

11/16-16 ORFS x 9/16-18 ORB

4шт.

15

439-11264

HEADED PIN,3/4" x 4"

Stabilization Cylinder

4шт.

16

432-1628

COTTER PIN,1/4" x 1 3/4"

Stabilization Cylinder

4шт.

17

87265832

WASHER

1" Nylon

8шт.

18

BN302877

MANIFOLD

Hydraulic Return, Chassis

1шт.

The Manifold Is Part Of The Chassis Hydraulic System. See Required Chassis Catalog For Further Parts Information

1шт.

19

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

9/16", ORB

10шт.

20

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3/4", ORB

1шт.
