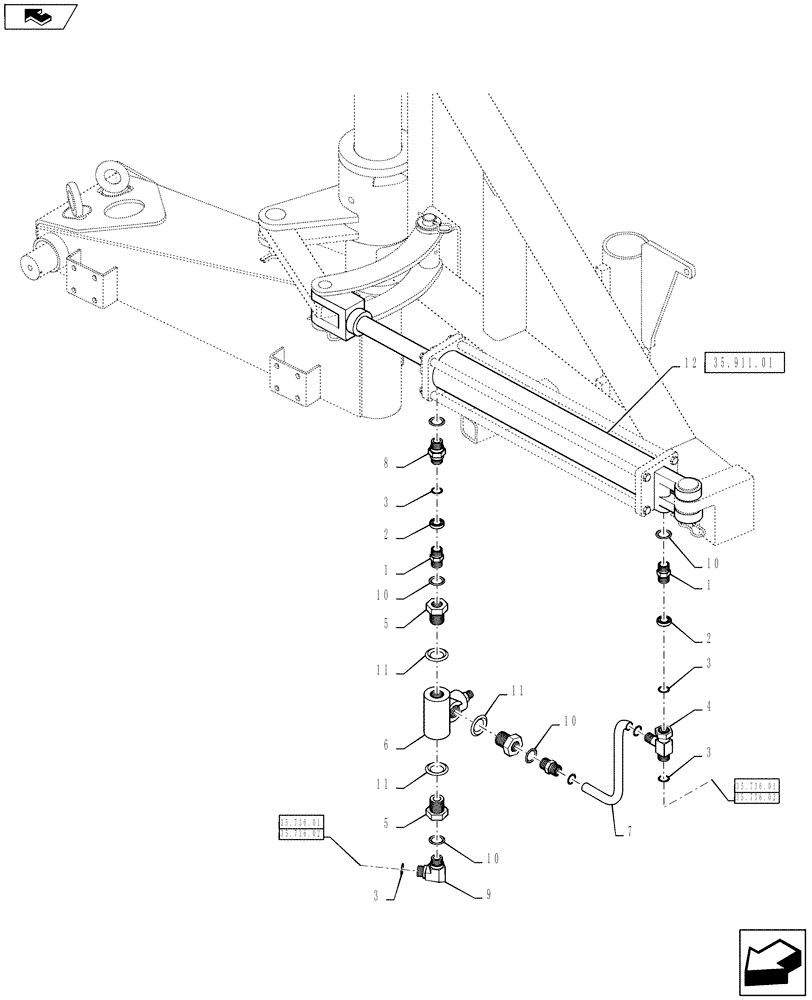

Запчасти Case IH 610 (35.736.03) - BOOM FOLD CYLINDER RELIEF PACKAGE (35) - HYDRAULIC SYSTEMS

1

BN302646

FITTING

11/16-16 ORFS x 9/16-18 ORB, Includes Ref 3 and 10

6шт.

2

BN313268

ORIFICE

.042, -6 Disk

4шт.

3

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

11/16", ORFS

12шт.

4

BN302435

TEE

11/16 -16 ORFS x 11/16 -16 ORFS Swivel, Includes Ref 3

2шт.

5

BN51776

FITTING

1-1/16-12 ORB x 9/16-18 ORB, Includes Ref 11 and 10

6шт.

6

BN29234

VALVE PRESSURE RELIE,1-1/16" - 12

2шт.

7

BN319237

HOSE

11/16 -16 ORFS Swivel x 11/16 -16 ORFS Swivel x 3/8" ID x 17" Long, Boom Fold Cylinder, Rod End To Base End

2шт.

8

BN314785

SWIVEL CONNECTION

11/16-16 ORFS x 9/16-18 ORB, Includes Ref 3 and 10

2шт.

9

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB, Includes Ref 3 and 10

2шт.

10

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

9/16", ORB

10шт.

11

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1-1/16", ORB

6шт.

12

87266454

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 457.2mm Stroke

3 x 18 x 1.25, Boom Fold

1шт.

See Fig 35.911.01 For Service Parts

1шт.

87266454R

Reman Cyl 3 x 18 x 1.25, Boom Fold

REMAN-HYD CYLINDER

1шт.

87266454C

Return Number

CORE-HYD CYLINDER

1шт.
