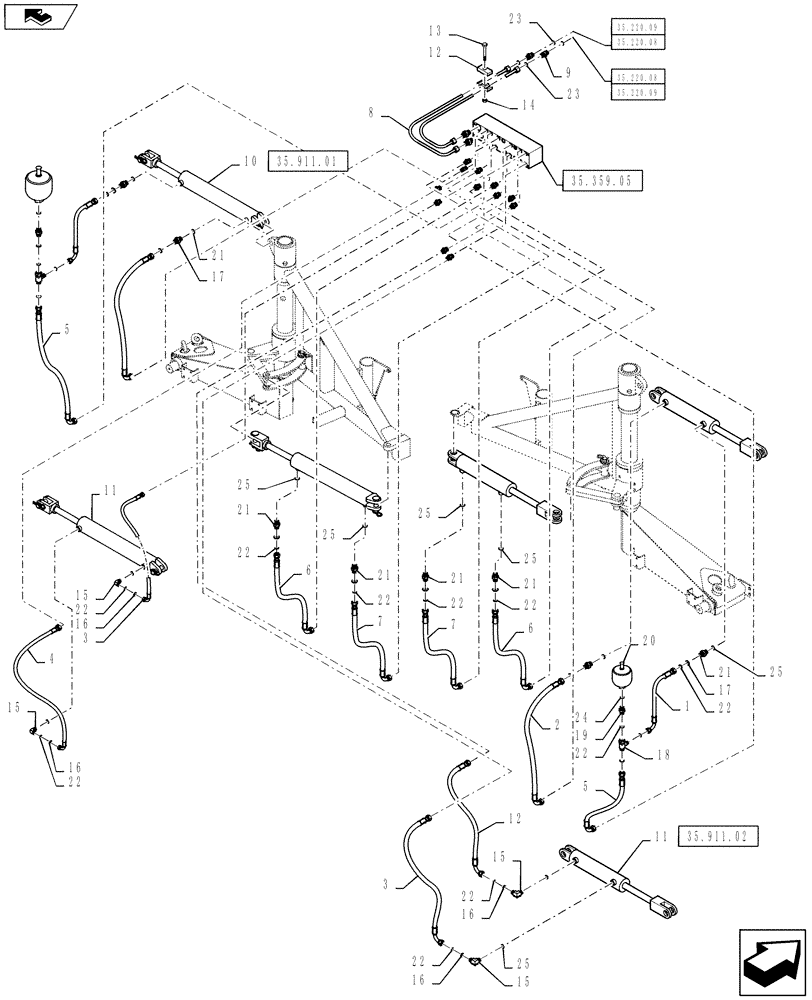

Запчасти Case IH 610 (35.736.02) - BOOM HYDRAULICS, 60/85 BOOM (35) - HYDRAULIC SYSTEMS

1

BN316764

HOSE

11/16-16 ORFS Swivel x 11/16-16 ORFS Swivel Elbow x 3/8" ID x 48" Long, Accumulator To Boom Level Cylinder, Rod End

2шт.

2

87270160

HOSE

11/16-16 ORFS Swivel Elbow x 11/16-16 ORFS Swivel Elbow x 3/8" ID x 116" Long, Main Valve To Boom Level Cylinder, Base End

2шт.

3

BN316758

HOSE

11/16-16 ORFS Swivel x 11/16-16 ORFS Swivel Long Elbow x 3/8" ID x 426" Long, Main Valve To Boom Tip Fold Cylinder, Base End

2шт.

4

BN316759

HOSE

11/16-16 ORFS Swivel x 11/16-16 ORFS Swivel Short Elbow x 3/8" ID x 441" Long, Main Valve To Boom Tip Fold Cylinder, Rod End

2шт.

5

87270159

HOSE

11/16-16 ORFS Swivel x 11/16-16 ORFS Swivel Elbow x 3/8" ID x 81" Long, Main Valve To Accumulator

2шт.

6

BN316760

HOSE ASSY.

11/16-16 ORFS Swivel x 11/16-16 ORFS Swivel Elbow x 3/8" ID x 66" Long, Main Valve To Boom Fold Cylinder, Rod End

2шт.

7

BN316761

HOSE

11/16-16 ORFS Swivel x 11/16-16 ORFS Swivel Elbow x 3/8" ID x 53" Long, Main Valve To Boom Fold Cylinder, Base End

2шт.

8

87265361

HOSE

1-3/16"-12 ORFS Swivel x 1-3/16"-12 ORFS Swive Elbow x 3/4" ID x 165" Long, Main Valve To Supply Hydraulics

2шт.

9

84100407

UNION,1-3/16"-12 ORFS

Includes Ref 23

2шт.

10

87266454

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 457.2mm Stroke

3 x 18 x 1.25, Boom Level And Fold

4шт.

See Fig 35.911.01 For Service Parts

1шт.

87266454R

Reman Cyl -- 3 x 18 x 1.25, Boom Level And Fold

REMAN-HYD CYLINDER

4шт.

87266454C

Return Number

CORE-HYD CYLINDER

1шт.

11

87266453

CYLINDER,Double Acting, 28.57mm Rod, 457.2mm Stroke

2.5 x 18 x 1.125, Boom Tip Fold

2шт.

See Fig 35.911.02 For Service Parts

1шт.

12

87035382

CLAMP,30.2mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

13

BN50254

BOLT,3/8"-16 x 1", Stainless

1шт.

14

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

1шт.

15

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB, Includes Ref 22 and 25

4шт.

16

BN313268

ORIFICE

.042, -6 Disk

4шт.

17

BN316688

ORIFICE

140,-6 DISK

4шт.

18

BN302435

TEE

11/16 -16 ORFS x 11/16 -16 ORFS Swivel, Includes Ref 22

2шт.

19

BN302647

FITTING

11/16" -16 OFRS x 3/4" -16 ORB, Includes Ref 22 and 24

2шт.

20

87266797

ACCUMULATOR

60 Cubic Inch, 2900 PSI

2шт.

21

BN302646

FITTING

11/16-16 ORFS x 9/16-18 ORB, Includes Ref 22 and 25

8шт.

22

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

11/16", ORFS

24шт.

23

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1-3/16", ORFS

4шт.

24

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3/4", ORB

2шт.

25

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

9/16", ORB

8шт.
