(35.359.04) - MAIN VALVE STACK, 60/85 BOOM

Запчасти Case IH 610 (35.359.04) - MAIN VALVE STACK, 60/85 BOOM (35) - HYDRAULIC SYSTEMS

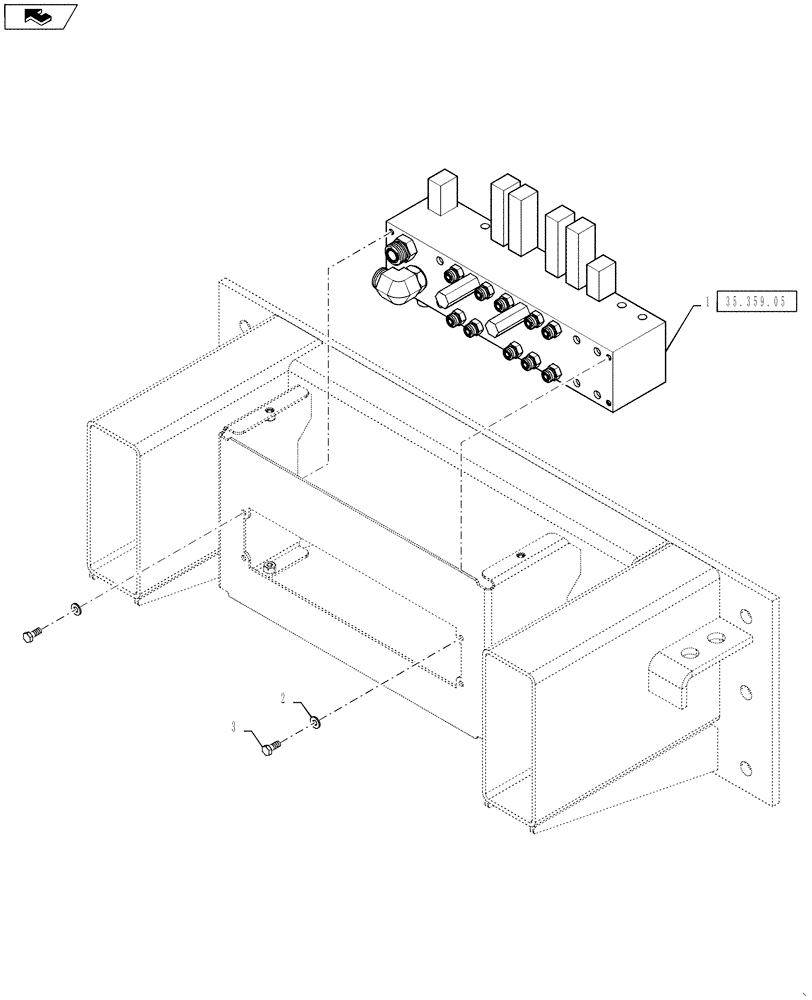

Схема запчастей Case IH 610 - (35.359.04) - MAIN VALVE STACK, 60/85 BOOM (35) - HYDRAULIC SYSTEMS
2
1
35.359.05
home
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86986496

HYDRAULIC VALVE

Boom Control, 7 Bank, With Fittings

1шт.

See Fig 35.359.05 For Service Parts

1шт.

2

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

4шт.

3

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.
