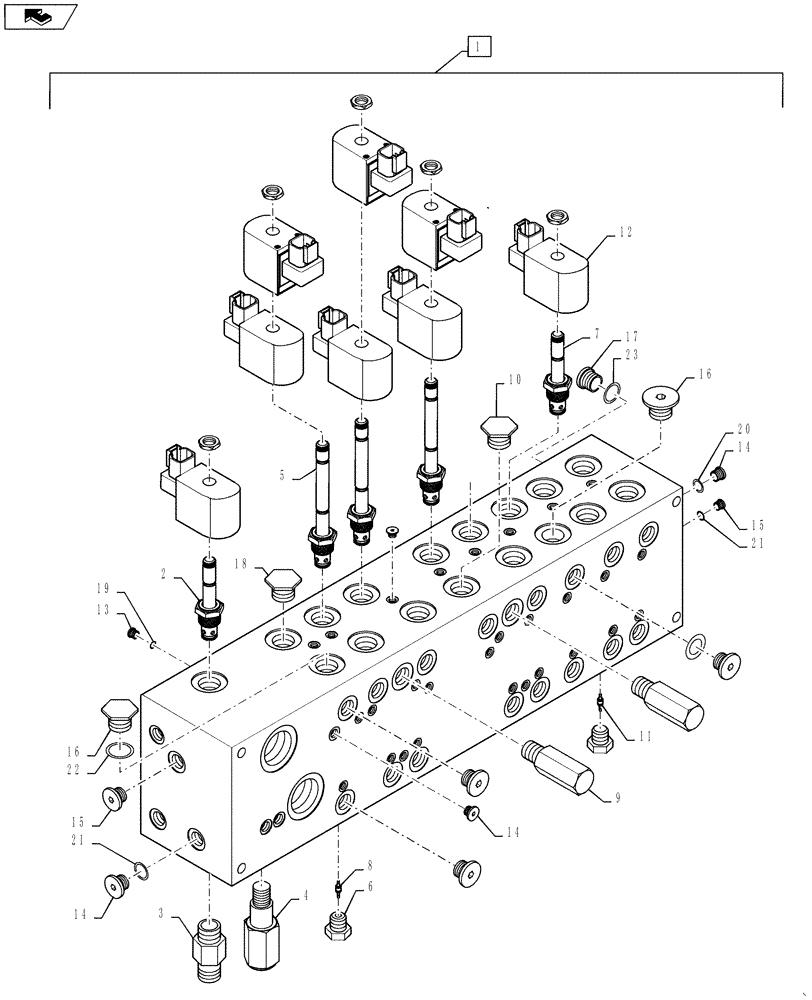

Запчасти Case IH 610 (35.359.03) - BOOM CONTROL VALVE, 5 BANK, BREAKDOWN, 70 BOOM (35) - HYDRAULIC SYSTEMS

1

87267727

VALVE

Boom Control, 5 Bank, Without Fittings, Includes Ref 2 -23

1шт.

2

BN318091

SOLENOID VALVE

1шт.

3

86986518

FLOW DIVIDER

Control

1шт.

4

BN303856

VALVE PRESSURE RELIE

1800 PSI

1шт.

5

343278A1

VALVE

3/4 Way Solenoid

4шт.

6

87590496

VALVE

Check, 100 PSI

8шт.

7

87270924

SOLENOID VALVE

2/4 Way Solenoid

1шт.

8

343286A1

PISTON

Pilot

2шт.

9

87267924

VALVE PRESSURE RELIE

2шт.

10

343287A1

PLUG

Orfice, .069

2шт.

11

343280A1

PISTON

Pilot

2шт.

12

87267925

COIL,12V

12V DC

10шт.

13

86632547

PLUG,Hex, 5/16"-24 ORB

Includes Ref 19

64шт.

14

87649288

PLUG

7/16"-20 ORB, Includes Ref 20

6шт.

15

9625178

PLUG,9/16" - 18 ORB

Includes Ref 21

6шт.

16

85802955

PLUG,3/4" Male

3/4"-16 ORB, Includes Ref 22

2шт.

17

9841223

PLUG,1-1/16" - 12 ORB

Includes Ref 23

1шт.

18

87267926

PLUG

Cavity

3шт.

19

86010510

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

5/16", ORB

64шт.

20

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

7/16", ORB

6шт.

21

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

9/16", ORB

6шт.

22

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3/4", ORB

2шт.

23

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1-1/16", ORB

1шт.
