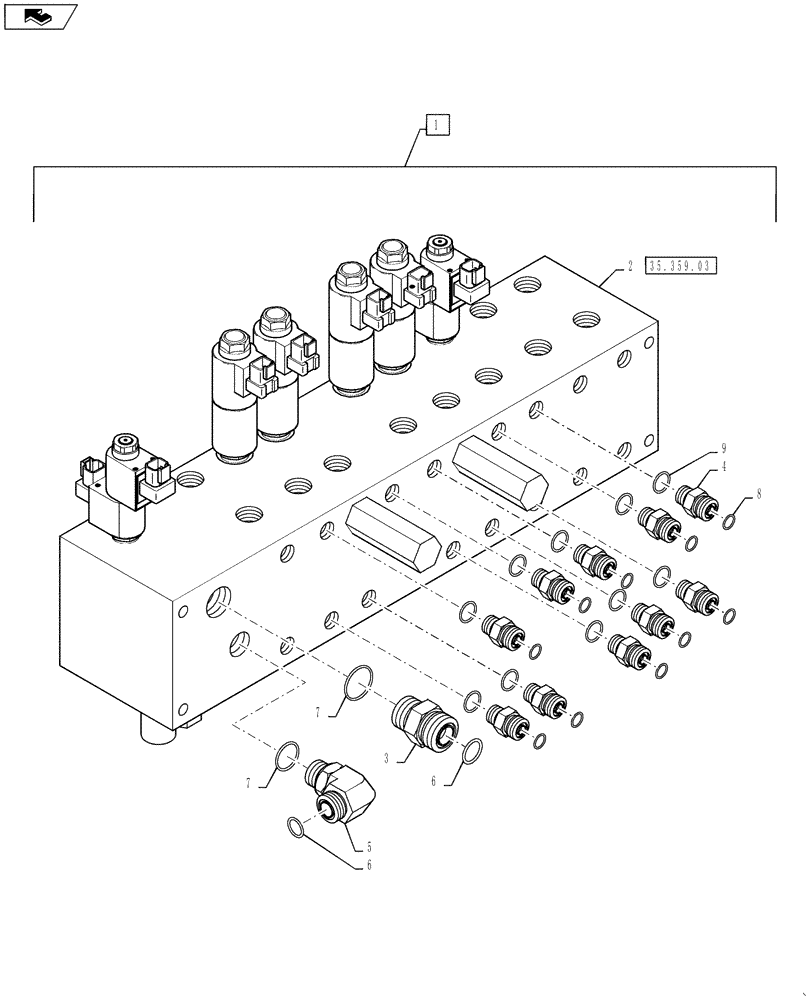

Запчасти Case IH 610 (35.359.02) - BOOM CONTROL VALVE, 5 BANK, WITH FITTINGS, 70 BOOM (35) - HYDRAULIC SYSTEMS

1

86986495

HYDRAULIC VALVE

Boom Control, 5 Bank, With Fittings, Includes Ref 2-9

1шт.

2

87267727

VALVE

Boom Control, 5 Bank, Without Fittings

1шт.

See Fig 35.359.03 For Service Parts

1шт.

3

BN302655

FITTING

1-3/16"-12 ORFS x 1-1/16"-12 ORB, Includes Ref 6 and 7

1шт.

4

BN302646

FITTING

11/16-16 ORFS x 9/16-18 ORB, Includes Ref 8 and 9

10шт.

5

BN302568

ELBOW

1-3/16"-12 ORFS x 1-1/16"-12 ORB, Includes Ref 6 and 7

1шт.

6

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1-3/16", ORFS

2шт.

7

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1-1/16", ORB

2шт.

8

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

11/16", ORFS

10шт.

9

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

9/16", ORB

10шт.
