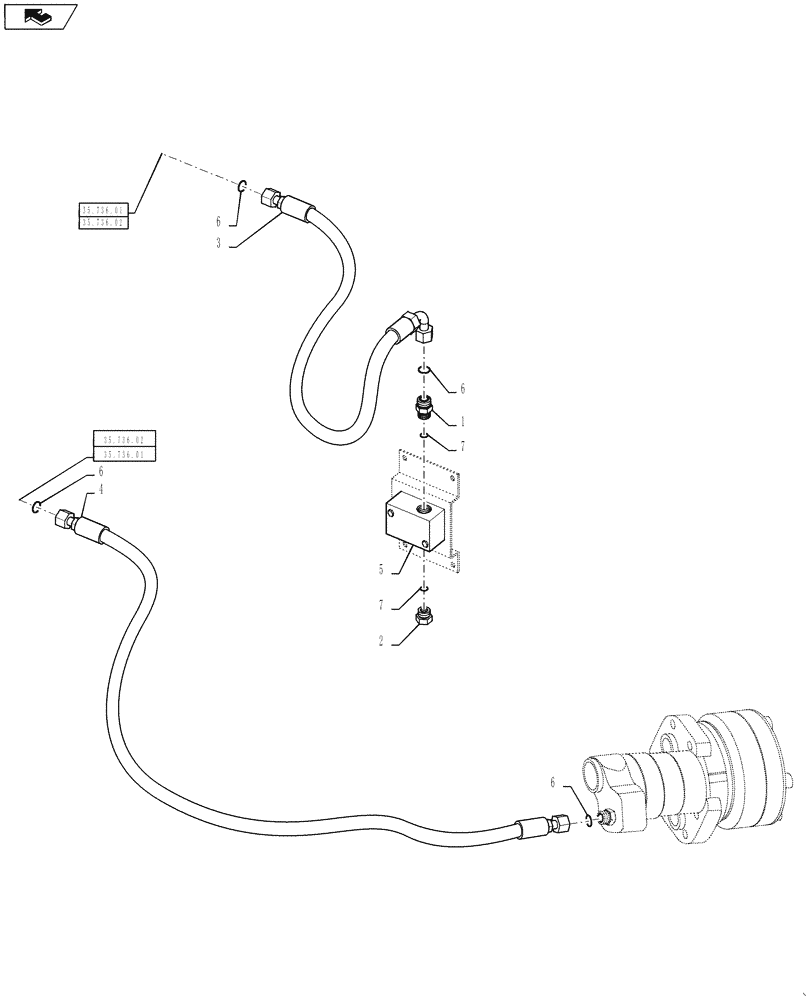

Запчасти Case IH 610 (35.220.08) - BOOM VALVE HYDRAULIC SUPPLY, 4 WHEELER (35) - HYDRAULIC SYSTEMS

1

BN302655

FITTING

1-3/16"-12 ORFS x 1-1/16"-12 ORB, Includes Ref 6 and 7

1шт.

2

BN54270

PLUG

1-1/16" -12 ORB, Includes Ref 7

1шт.

3

BN307830

HOSE ASSY.

1-3/16"-12 ORFS Swivel Short Elbow x 1-3/16"-12 ORFS Swivel x 3/4" ID x 130" Long, Boom Valve To Chassis Return Manifold

1шт.

4

BN313285

HOSE

1-3/16"-12 ORFS Swivel x 1-3/16"-12 ORFS Swivel x 3/4" ID x 70" Long, Transmission Mounted Steering Pump To Boom Valve

1шт.

5

BN302877

MANIFOLD

Hydraulic Return, Chassis

1шт.

The Manifold Is Part Of The Chassis Hydraulic System. See Required Chassis Catalog For Further Parts Information

1шт.

6

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1-3/16", ORFS

4шт.

7

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1-1/16", ORB

2шт.
