(35.220.07) - PRODUCT PUMP CONTROL VALVE BREAKDOWN

Запчасти Case IH 610 (35.220.07) - PRODUCT PUMP CONTROL VALVE BREAKDOWN (35) - HYDRAULIC SYSTEMS

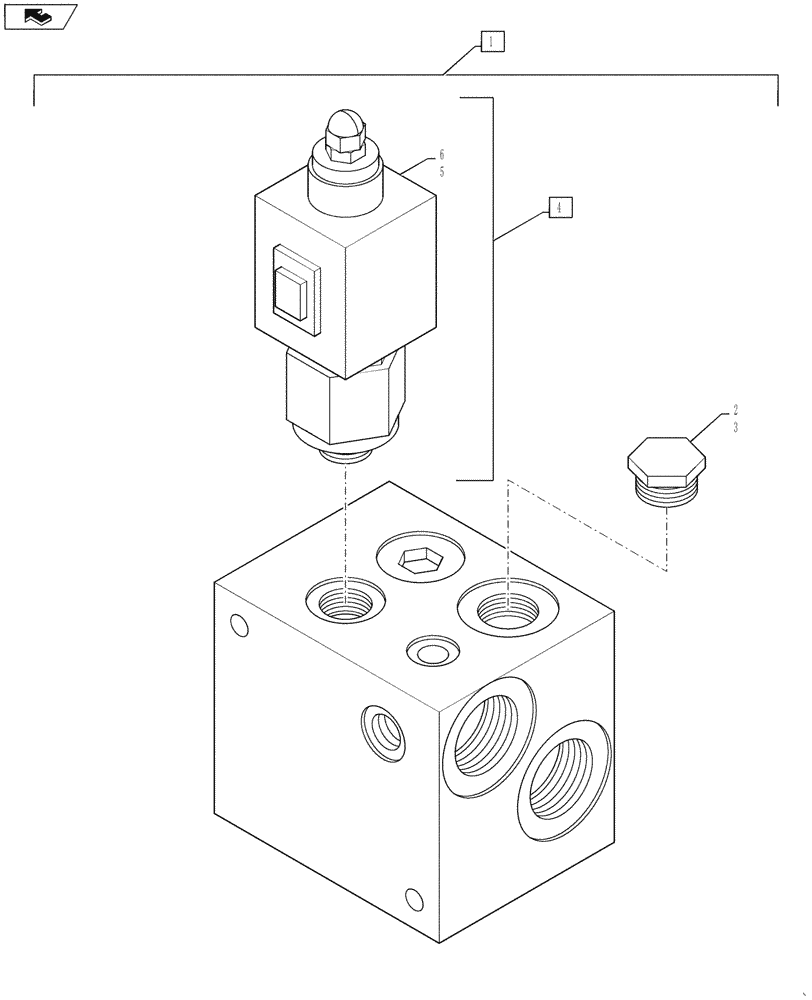

Схема запчастей Case IH 610 - (35.220.07) - PRODUCT PUMP CONTROL VALVE BREAKDOWN (35) - HYDRAULIC SYSTEMS
2
6
3
5
home
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87265370

HYDRAULIC VALVE

Product Control, Complete, Includes Ref 2 - 6

1шт.

2

BN314658

CHECK VALVE

Includes Ref 3

1шт.

3

BN314659

KIT

Seal

1шт.

4

87265368

HYDRAULIC VALVE

Flow Control Solenoid, 30GPM, 12VD, Includes Ref 5 and 6

1шт.

5

87270915

REPAIR KIT

Coil, 12 VDC Deutsch

1шт.

6

87270923

CARTRIDGE

30GPM

1шт.
