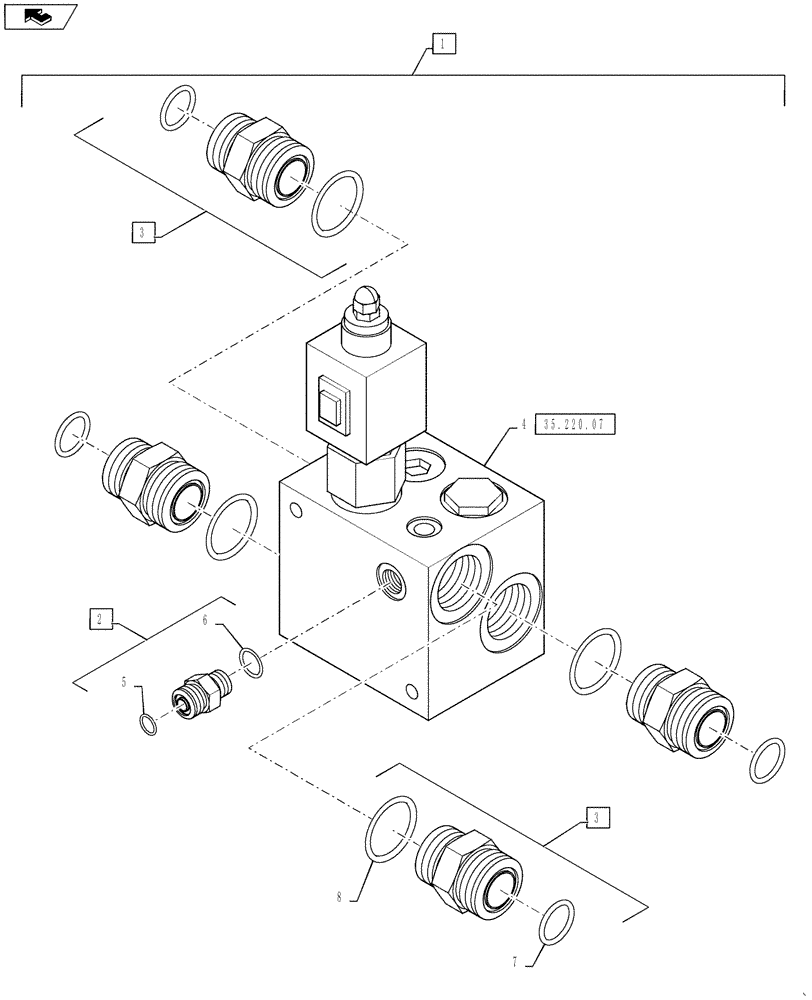

Запчасти Case IH 610 (35.220.06) - PRODUCT PUMP CONTROL VALVE, PULSE WIDTH MODULATION, WITH FITTINGS (35) - HYDRAULIC SYSTEMS

1

343993A1

HYDRAULIC VALVE

Product Control Valve, Pulse Width Modulation

1шт.

2

BN302646

FITTING

11/16-16 ORFS x 9/16-18 ORB, Includes Ref 4 and 5

1шт.

3

BN57223

FITTING

1-7/16-12 ORFS x 1-5/16-12 ORB, Includes Ref 6 and 7

4шт.

4

87265370

HYDRAULIC VALVE

Product Control

1шт.

See Fig 35.220.07 For Service Parts

1шт.

5

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

11/16", ORFS

1шт.

6

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

9/16", ORB

1шт.

7

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1-7/16", ORFS

4шт.

8

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1-5/16", ORB

4шт.
