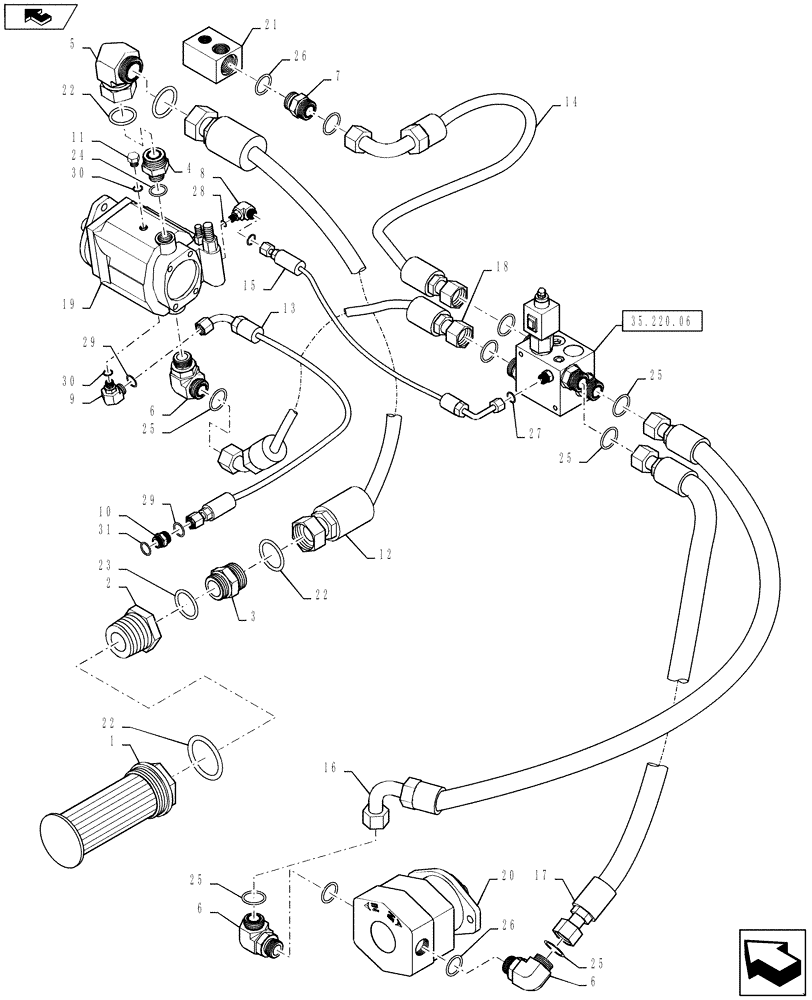

Запчасти Case IH 610 (35.220.04) - HYDRAULIC LINES, 3 WHEELER (35) - HYDRAULIC SYSTEMS

1

BN303527

FILTER STRAINER

3-3/8" - 12 x 2-1/2" - 12, 100 Mesh Stainless Steel

1шт.

Installed In Hydraulic Tank. See Chassis Parts Catalog For Hydraulic Tank Parts Information

1шт.

2

BN318004

FITTING

2-1/2"-12 x 1-7/8"-12

1шт.

3

BN302898

FITTING

2-12 ORFS x 1-7/8-12 ORB, Includes Ref 22 and 23

1шт.

4

BN318898

FITTING

2-12 ORFS x 1-5/8-12 ORB, Includes Ref 22 and 24

1шт.

5

BN302449

ELBOW

2-12 ORFS x 2-12 ORFS, Includes Ref 22

1шт.

6

BN302574

ELBOW

1-7/16-12 ORFS x 1-5/16-12 ORB, Includes Ref 25 and 26

3шт.

7

BN57223

FITTING

1-7/16" -12 ORFS x 1-5/16" -12 ORB, Includes Ref 25 and 26

1шт.

8

BN302551

FITTING

11/16-16 ORFS x 7/16-20 ORB, Includes Ref 27 and 28

1шт.

9

BN302557

FITTING

13/16-16 OFRS x 9/16-18 ORB, Includes Ref 29 and 30

1шт.

10

BN302652

FITTING

13/16" -16 OFRS x 1-1/16" -12 ORB, Includes Ref 29 and 31

1шт.

Installed In Hydraulic Tank. See Chassis Parts Catalog For Hydraulic Tank Parts Information

1шт.

11

BN446048

PLUG

9/16" -18 ORB, Includes Ref 30

1шт.

12

87265378

HOSE

2-12 ORFS Swivel x 2-12 ORFS x 1.5" ID x 56" Long, Pump To Hydraulic Tank

1шт.

13

BN313848

HOSE

13/16-16 Female ORFS Swivel x 13/16-16 Female ORFS Swivel Elbow x 1/2" ID x 115" Long, LH Supplement Motor to Main Valve

1шт.

14

87267866

HOSE

1-7/16-12 ORFS Swivel x 1-7/16-12 ORFS Swivel Medium Elbow x 1" ID x 52" Long, Product Control Valve To Chassis Return Manifold

1шт.

15

BN317622

HOSE ASSY.,9.53mm ID x 1498.6mm L, SAE 100R17

11/16 -16 Female ORFS Swivel x 11/16 -16 Female ORFS Swivel Medium Elbow x 3/8" ID x 59", Hydraulic Pump To Product Control Valve

1шт.

16

BN316741

HOSE

1-7/16-12 ORFS Swivel x 1-7/16-12 ORFS Swivel Medium Elbow x 1" ID x 42" Long, Return, Product Pump Motor To Product Control Valve

1шт.

17

87265375

HOSE

1-7/16-12 ORFS Swivel x 1-7/16-12 ORFS Swivel x 1" ID x 35" Long, Pressure, Product Control Valve To Product Pump Motor

1шт.

18

87265376

HOSE

1-7/16-12 ORFS Swivel x 1-7/16-12 ORFS Swivel x 1" ID x 45" Long, Pressure, Pump To Product Control Valve

1шт.

19

BN315119

HYDRAULIC PUMP,38 CC

Pressure Compensated Piston Pump, 38 CC, 15T

1шт.

20

BN300332

HYDRAULIC MOTOR

Product Pump

1шт.

BN300332R

REMAN-HYD MOTOR

610 (2/12-)

1шт.

BN300332C

CORE-HYDROSTAT MOTOR

Return number

1шт.

21

BN302877

MANIFOLD

Hydraulic Return, Chassis

1шт.

The Manifold Is Part Of The Chassis Hydraulic System. See Required Chassis Catalog For Further Parts Information

1шт.

22

9840589

O-RING,0.07" Thk x 1.489" ID, -29, Cl 6, 90 Duro

2", ORFS

4шт.

23

9626930

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

1-7/8", ORB

1шт.

24

570186

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1-5/8", ORB

1шт.

25

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1-7/16", ORFS

8шт.

26

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1-5/16", ORB

4шт.

27

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

11/16", ORFS

2шт.

28

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

7/16", ORB

1шт.

29

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

13/16", ORFS

2шт.

30

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

9/16", ORB

2шт.

31

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1-1/16", ORB

1шт.
