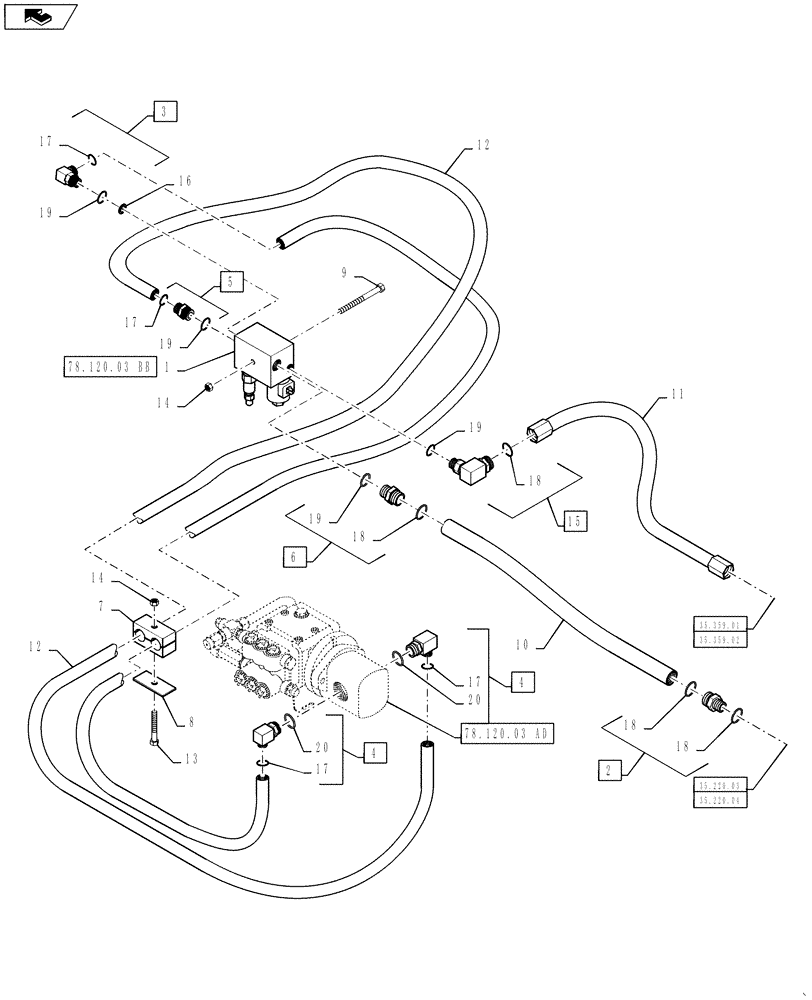

Запчасти Case IH 610 (78.120.03.BA) - PRESSURE WASHER HYDRAULICS (78) - SPRAYING

1

87271740

VALVE SECTION

Pressure Washer Control

1шт.

See Fig 78.120.03.BB For Service Parts

1шт.

2

201-109

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-3/16" - 12 ORFS

1-3/16-12 ORFS x 1-3/16-12 ORFS, Includes Ref 18

1шт.

This Fitting is Installed Into The Chassis Return Manifold

1шт.

3

BN302558

ELBOW

13/16-16 ORFS x 3/4-16 ORB, Includes Ref 17 - 19

1шт.

4

BN302559

FITTING

13/16-16 ORFS x 7/8-14 ORB, Includes Ref 17 - 20

2шт.

5

BN302650

FITTING

13/16 -16 ORFS x 3/4 -16 ORB, Includes Ref 17 - 19

1шт.

6

BN302654

FITTING

1-3/16-12 ORFS x 3/4 -16 ORB, Includes Ref 18 - 19

1шт.

7

BN307913

CLAMP

Dual, 1/2 Pipe

1шт.

8

BN309484

PLATE

Top, Dual, Size 3

1шт.

9

BN320109

BOLT,5/16"-18 X 3.50", Stainless

1шт.

10

BN316055

HOSE

1-3/16-12 ORFS Swivel Short Elbow x 1-3/16-12 ORFS Swivel x 3/4" ID x 75" Long, Pressure Washer Valve To Chassis Return Manifold

1шт.

11

87267865

HOSE

1-3/16-12 ORFS Swivel Short 45° Elbow x 1-3/16-12 ORFS Swivel Short Elbow x 3/4" ID x 85" Long, Pressure Washer Valve To Chassis Return Manifold

1шт.

12

BN313282

HOSE

13/16-16 ORFS Swivel Medium Elbow x 13/16-16 ORFS Swivel x 1/2" ID x 30" Long, Pressure Washer Pump To Pressure Washer Valve

2шт.

13

BN50241

BOLT,5/16"-18 X 2-1/4", Stainless Steel

1шт.

14

BN55361

NUT,5/16"-18, Nylon, Stainless

2шт.

15

BN302566

FITTING

1-3/16-12 ORFS x 3/4 -16 ORB, Includes Ref 18 - 19

1шт.

16

87265621

ORIFICE

.091"- 8 Disk

1шт.

17

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

13/16", ORFS

4шт.

18

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1-3/16", ORFS

4шт.

19

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3/4-16 ORB

4шт.

20

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

7/8-14 ORB

2шт.
