(78.120.03.AH) - PRESSURE WASHER TRIGGER GUN

Запчасти Case IH 610 (78.120.03.AH) - PRESSURE WASHER TRIGGER GUN (78) - SPRAYING

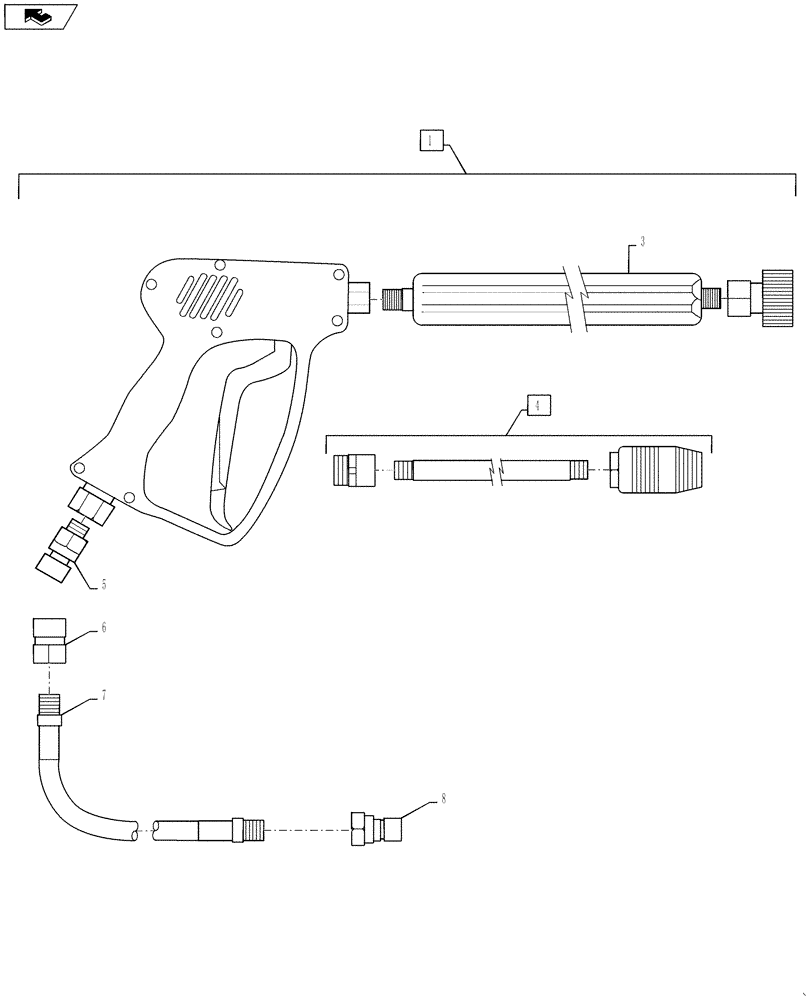

Схема запчастей Case IH 610 - (78.120.03.AH) - PRESSURE WASHER TRIGGER GUN (78) - SPRAYING
3
1
home
6
8
7
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN322325

HANDLE

Spray Gun Assembly, Complete, Includes Ref 2 - 8

1шт.

2

84281297

HEAD

Spraygun

1шт.

3

BN322368

REPAIR KIT

Spraygun Head, Includes Valve and O-Rings

1шт.

4

BN322324

NOZZLE

Lance Assembly

1шт.

5

BN322322

PLUG

Quick Disconnect, Male

1шт.

6

BN322323

SOCKET

Quick Disconnect, Female

1шт.

7

BN313869

HOSE

Pressure washer

1шт.

8

87267593

PLUG

Quick Disconnect

1шт.
