(78.120.03.AE) - PRESSURE WASHER WATER PUMP

Запчасти Case IH 610 (78.120.03.AE) - PRESSURE WASHER WATER PUMP (78) - SPRAYING

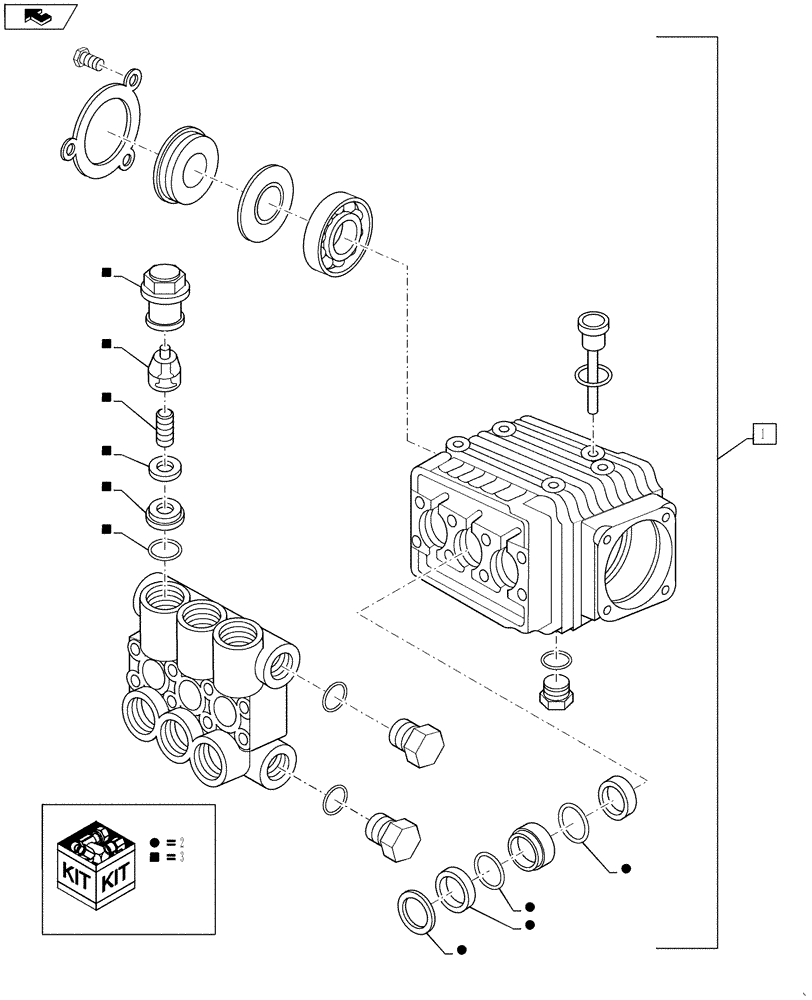

Схема запчастей Case IH 610 - (78.120.03.AE) - PRESSURE WASHER WATER PUMP (78) - SPRAYING
3
3
3
2
2
3
3
2
2
home
2
1
3
3
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN313235

PUMP

Water, Pressure Washer, Includes Ref 2 and 3

1шт.

2

BN313238

SEAL KIT

Water Pump Pistons

1шт.

3

BN313239

CHECK VALVE

Water Pump Check Valve

1шт.
