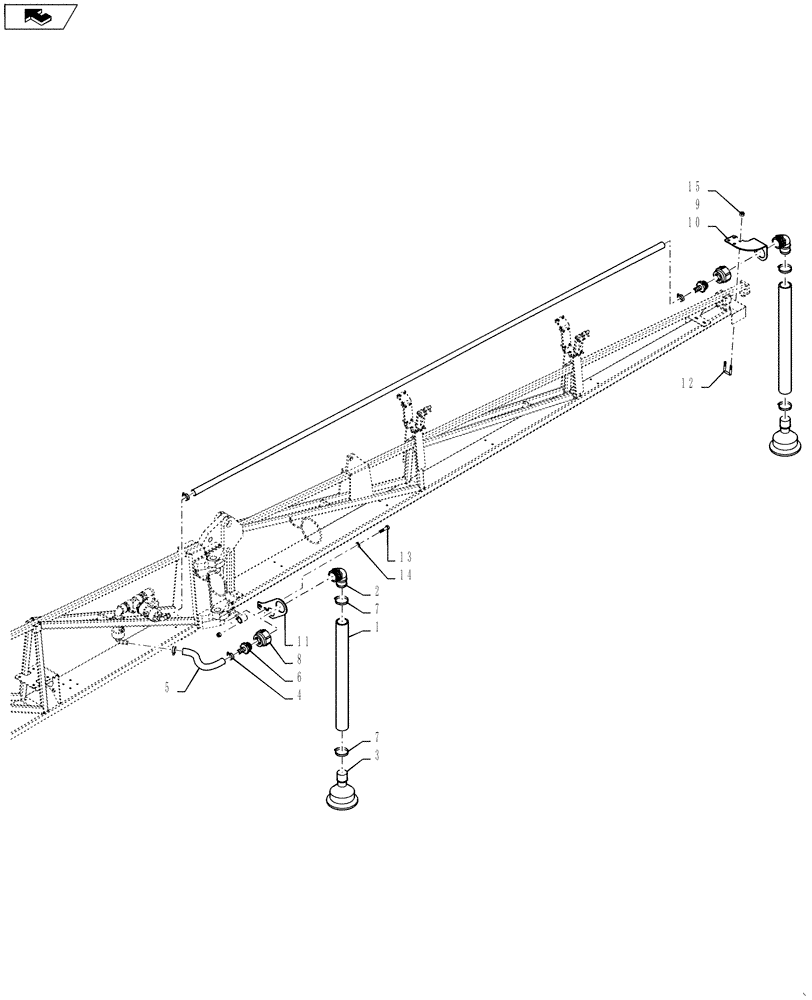

Запчасти Case IH 610 (78.120.02.BB) - FOAM DROP, 60/85 BOOM (78) - SPRAYING

1

87268528

HOSE,2.00" ID x 26.00"

Foam Drop

4шт.

2

401875A1

FITTING,2" Male Thread x 2" 90 Degree Hose Barb

2" MNPT x 2" Hose Barb, Poly

4шт.

3

BN2403252

BELL

Foam Marker

4шт.

4

BN310446

HOSE CLAMP

#12, Stainless Steel

8шт.

5

BN52310

TUBE,0.75" ID

Wall Vinyl

34шт.

6

BN319562

FITTING

1-1/4" MPT x 3/4" Hose Barb, Poly

4шт.

7

BN310449

CLAMP,50mm - 65mm

#32, Stainless Steel

8шт.

8

87272450

REDUCER,2" x 1-1/4" Poly Reducing Coupling

2" FPT x 1-1/4" FPT, Poly

4шт.

9

87272447

BRACKET

Foam Marker Drop, RH

1шт.

10

87272448

BRACKET

Foam Marker Drop, LH

1шт.

11

87272449

BRACKET

Inner Foam Marker

2шт.

12

BN319918

U-BOLT,SQ BND 1.31" ID x 3/8"

BOLT "U" Square Bend 3/8"-16 x 1.31 wide x 2.00 Deep

4шт.

13

BN50260

BOLT,3/8"-16 x 1-1/2", Stainless Steel

4шт.

14

BN50146

WASHER,3/8", Stainless

4шт.

15

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

12шт.
