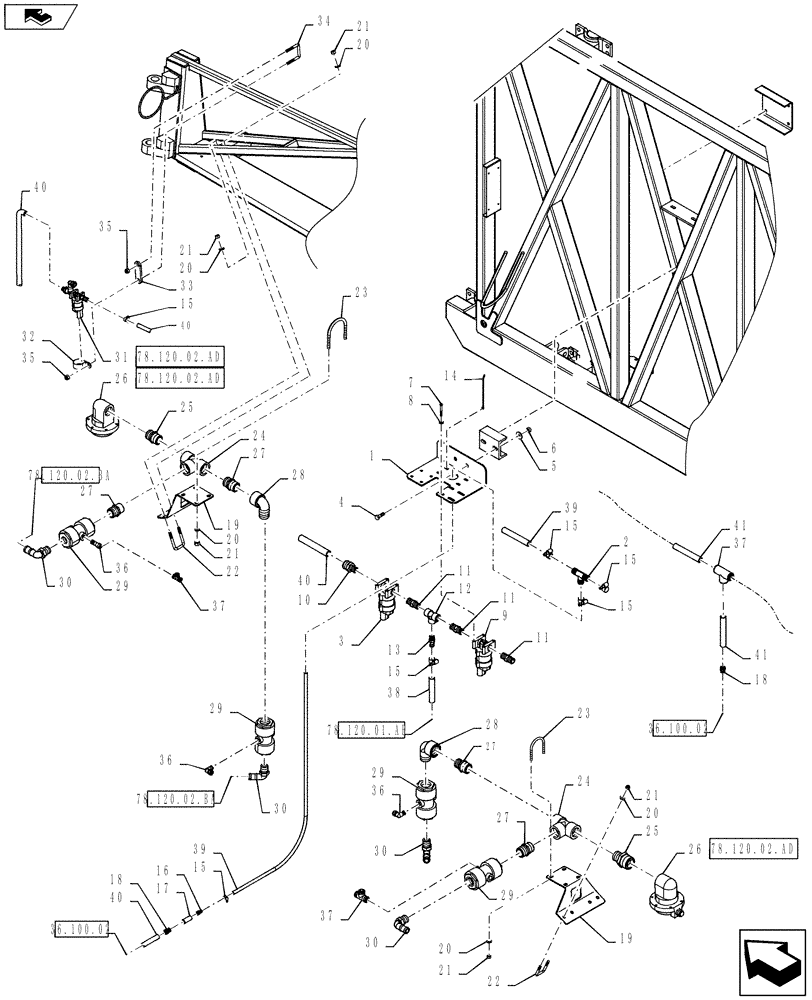

Запчасти Case IH 610 (78.120.02.BA) - FOAM DELIVERY, 60/85 BOOM (78) - SPRAYING

1

87266013

PLATE

Solenoid Valve Mount

1шт.

2

BN324009

TEE

1/2" Hose Barb, Poly

1шт.

3

BN307938

VALVE

Solenoid, 1/4" NPT

2шт.

4

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

5

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

6.6 x 18 x 1.6 mm, CST, DOR

2шт.

6

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

2шт.

7

BN317051

BOLT

6-32 X 1.25"

8шт.

8

87529123

WASHER,0.16" ID x 0.38" OD x 0.05" Thk

0.156 x 0.375 x 0.049 CST DOR

4шт.

9

BN317053

LOCK NUT

6-32 nylon lock

8шт.

10

BN2399403

ADAPTER

1/4" MPT x 3/8" OD Tube, Push Lock Fitting

2шт.

11

86986808

NIPPLE

1/4" Short, Poly

2шт.

12

86986807

TEE

1/4" NPT, Poly

1шт.

13

86986810

FITTING

3/8" Hose Barb X 1/4" NPT, Poly

1шт.

14

BN309265

CABLE

Tie Strap

3шт.

15

87485006

CLAMP,0.5" - 0.91"

#8, Stainless Steel

7шт.

16

BN323125

FITTING

3/8" MPT x 1/2" Hose Barb, Poly

1шт.

17

343552A1

COUPLING,3/8" Poly Pipe Coupling

3/8" poly

1шт.

18

BN2399412

ADAPTER

3/8" MPT x 3/8" OD Tube, Push Lock Fitting

4шт.

19

343092A1

BRACKET, SUPPORTING

Mount, Foam Mixing Chamber, 60/85'

2шт.

20

87529236

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

0.281 X 0.625 X 0.065 HTS DOR HDN

16шт.

21

87343957

NUT,1/4" - 20

Hex, 1/4"-20, GB

16шт.

22

BN23149

U-BOLT

1/4"-20, Square, 1.1" id x 2" Long

4шт.

23

BN2403315

U-BOLT

Round, 1/4"-20 x 1.93 x 2.31 SS

4шт.

24

BN73629

TEE

1" Poly Pipe

2шт.

25

BN73656

NIPPLE,1-1/4" Male NPT x 1" Male NPT, Poly

1.25 X 1"

2шт.

26

BN307636

CHAMBER

Foam Mixing

2шт.

See Fig 78.120.02.AC For Service Parts

1шт.

27

BN73648

NIPPLE

1" Short Poly Pipe

4шт.

28

BN53682

ELBOW

1" FPT x 1" MPT, Poly

2шт.

29

342271A1

RESTRICTOR VALVE,1" x 3/4" Poly Pinch Valve

Pinch, 1" FPT x 3/4" FPT, Poly

4шт.

30

BN73562

FITTING,3/4" Male Thread x 3/4" 90 Degree Hose Barb

3/4" NPT x 3/4" Hose Barb, Poly

4шт.

31

84163486

VENTURI

Assembly

2шт.

See Fig 78.120.02.AD For Service Parts

1шт.

32

515-23365

CLAMP,1 7/16", Insul, 3/8" Bolt

2шт.

33

BN308039

PLATE

Spacer

2шт.

34

BN319919

U-BOLT

2.06 ID x 2-3/4 x 3/8

2шт.

35

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

36

BN2399404

90 ELBOW

1/4" MPT x 1/4" OD Tube, Push Lock Fitting

4шт.

37

BN2399414

UNION TEE

3/8" OD Tube, Push Lock Fitting

3шт.

38

BN75913

TUBE

3/8 EVA, Bulk, 14' Required

1шт.

39

BN54239

HOSE,12.7mm ID x 3048mm L

Black-1/2 EPDM, Discharge, Bulk, 85' Required

1шт.

40

84422568

TUBE,3/8" X 50' BULK, SAE J844, BLACK

Air, Synflex 3/8" Black, Bulk, 90' Required

1шт.

41

BN2292089

AIR INTAKE TUBE

Synflex 1/4" Black, Bulk, 151' Required

1шт.
