(78.120.02.AD) - FOAM MARKER VENTURI ASSEMBLY

Запчасти Case IH 610 (78.120.02.AD) - FOAM MARKER VENTURI ASSEMBLY (78) - SPRAYING

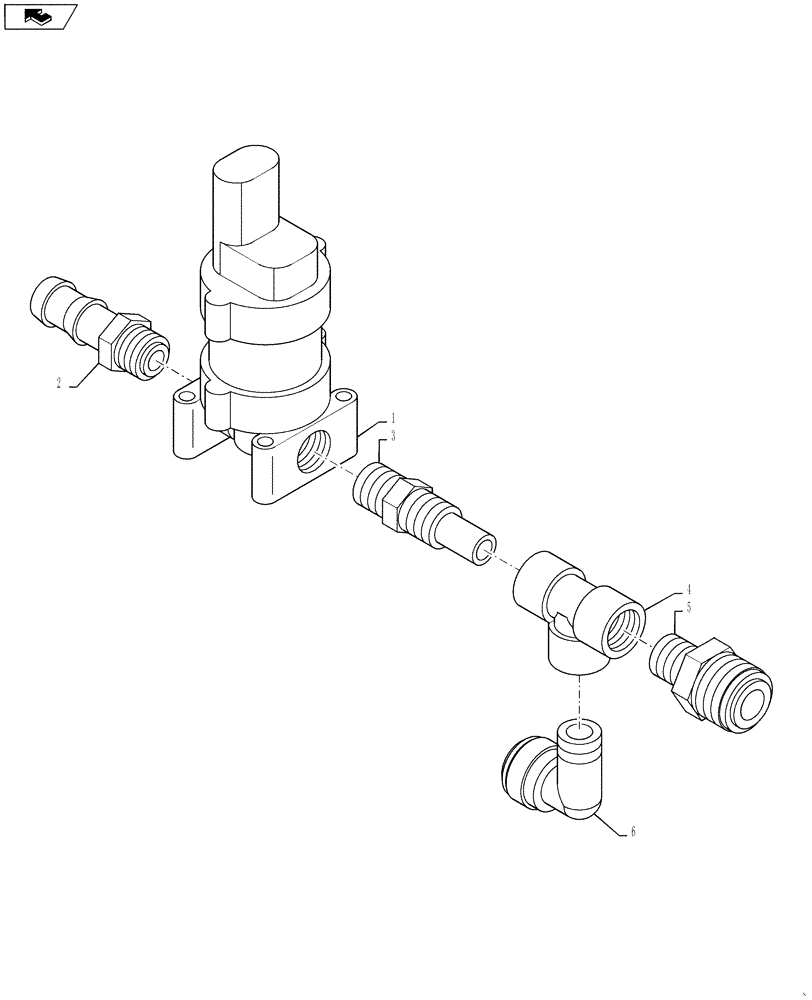

Схема запчастей Case IH 610 - (78.120.02.AD) - FOAM MARKER VENTURI ASSEMBLY (78) - SPRAYING
5
4
3
1
6
2
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN307938

VALVE

Solenoid, 1/4" NPT

1шт.

2

BN324008

FITTING

1/4" NPT x 1/2" Hose Barb, Poly

1шт.

3

87269827

VENTURI

Foamer Assembly Poly

1шт.

4

86986807

TEE

1/4" Poly

1шт.

5

BN2399403

ADAPTER

1/4" MPT x 3/8" OD Tube, Push Lock Fitting

1шт.

6

BN2399411

ADAPTER

Elbow, 1/4" MPT x 3/8" OD Tube, Push Lock Fitting

1шт.
