(78.120.02.AC) - FOAM MARKER MIXING CHAMBER ASSEMBLY

Запчасти Case IH 610 (78.120.02.AC) - FOAM MARKER MIXING CHAMBER ASSEMBLY (78) - SPRAYING

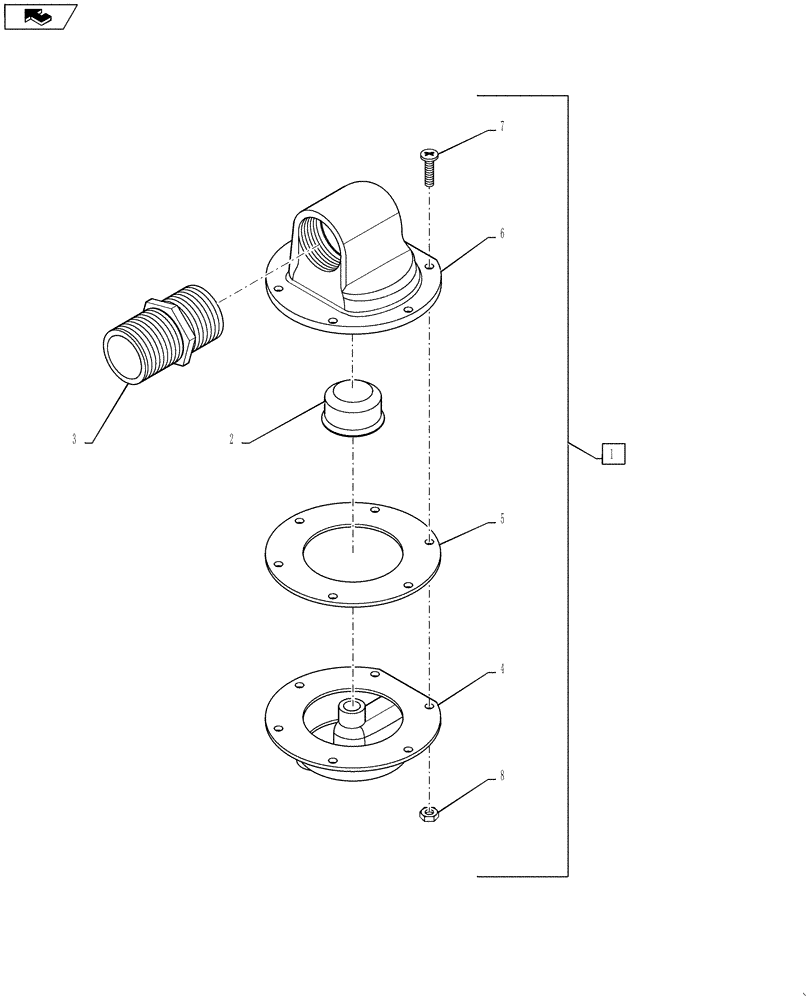

Схема запчастей Case IH 610 - (78.120.02.AC) - FOAM MARKER MIXING CHAMBER ASSEMBLY (78) - SPRAYING
2
home
5
7
3
8
1
6
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN307636

CHAMBER

Foam Mixing, Assembly, Includes Ref 2 - 8

1шт.

2

21965

SCREEN

Foam Head, 3/8" Screen Strainer

1шт.

3

BN313211

NIPPLE

Hex, 1-1/4"

1шт.

4

21964

HOUSING

Base, Foam Mixing Chamber

1шт.

5

21966

GASKET

Foam Mixing Chamber

1шт.

6

21967

HOUSING

Top, Foam Mixing Chamber

1шт.

7

NSS

NOT SOLD SEPARAT

10-24 x 7/8", Stainless Steel Screw

6шт.

8

NSS

NOT SOLD SEPARAT

10-24, Stainless Steel, Nyloc Nut

6шт.
