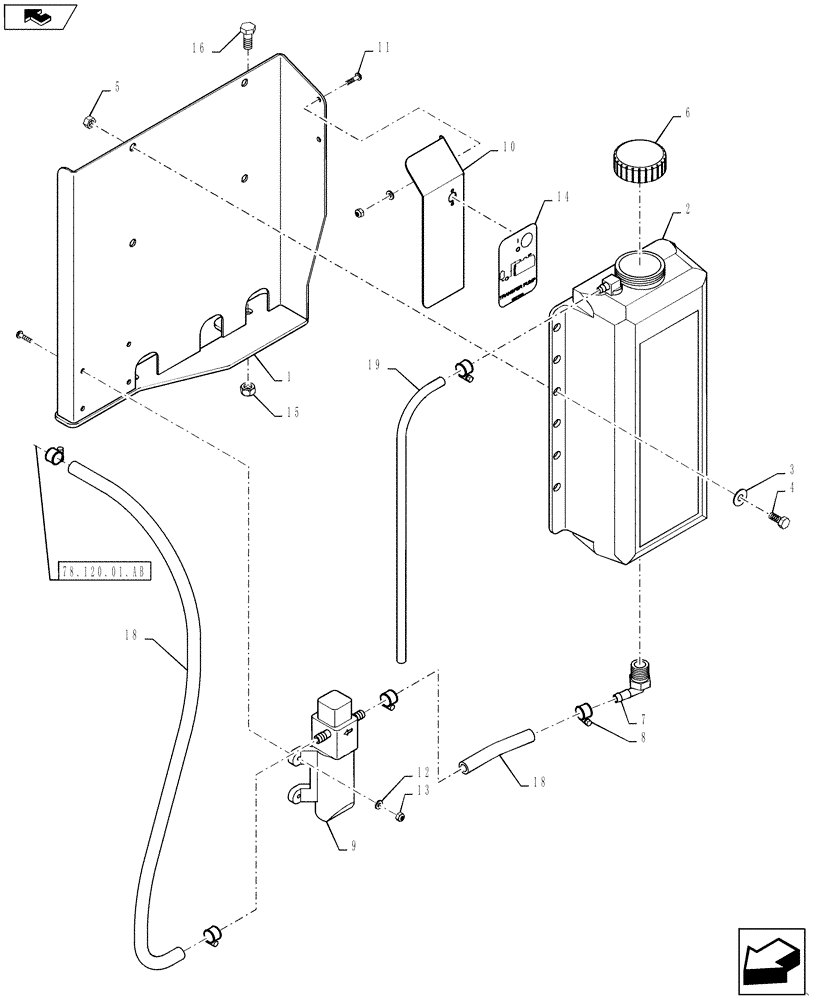

Запчасти Case IH 610 (78.120.01.AC) - FOAM MARKER TRANSFER PUMP AND CONCENTRATE TANK (78) - SPRAYING

1

87272327

MOUNTING PLATE

Foam Transfer Pump

1шт.

2

84532275

RESERVOIR

6 Quarts, Poly, Foam Concentrate Tank

1шт.

3

BN50142

WASHER,5/16", Stainless Steel

4шт.

4

BN50476

BOLT,5/16"-18 x 0.75", Stainless

4шт.

5

BN55361

NUT,5/16"-18, Nylon, Stainless

4шт.

6

86507190

CAP

Foam Concentrate Tank

1шт.

7

BN325981

ELBOW

1/2" MPT x 3/8" Hose Barb, Poly

1шт.

8

BN310450

HOSE CLAMP

#3, Stainless Steel

5шт.

9

87727677

PUMP,12V

Diaphragm, 1 GPM, 12V, Foam Transfer

1шт.

10

87271978

PANEL

Switch, Transfer Pump

1шт.

11

BN311631

BOLT,#10 - 24 x 3/4", SST

10-24 x .75, BSH, Stainless Steel

6шт.

12

BN310265

WASHER

10, Stainless Steel

6шт.

13

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

6шт.

14

87271976

DECAL

Transfer Pump

1шт.

15

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

2шт.

16

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

18

BN75913

TUBE

3/8 EVA, Bulk, 3' Required

1шт.

19

BN72041

HOSE

1/4" Bulk EPDM Discharge, 1-1/2' Required

1шт.

20

87272643

SWITCH

Foam Marker Concentrate Tank Transfer Pump

1шт.
