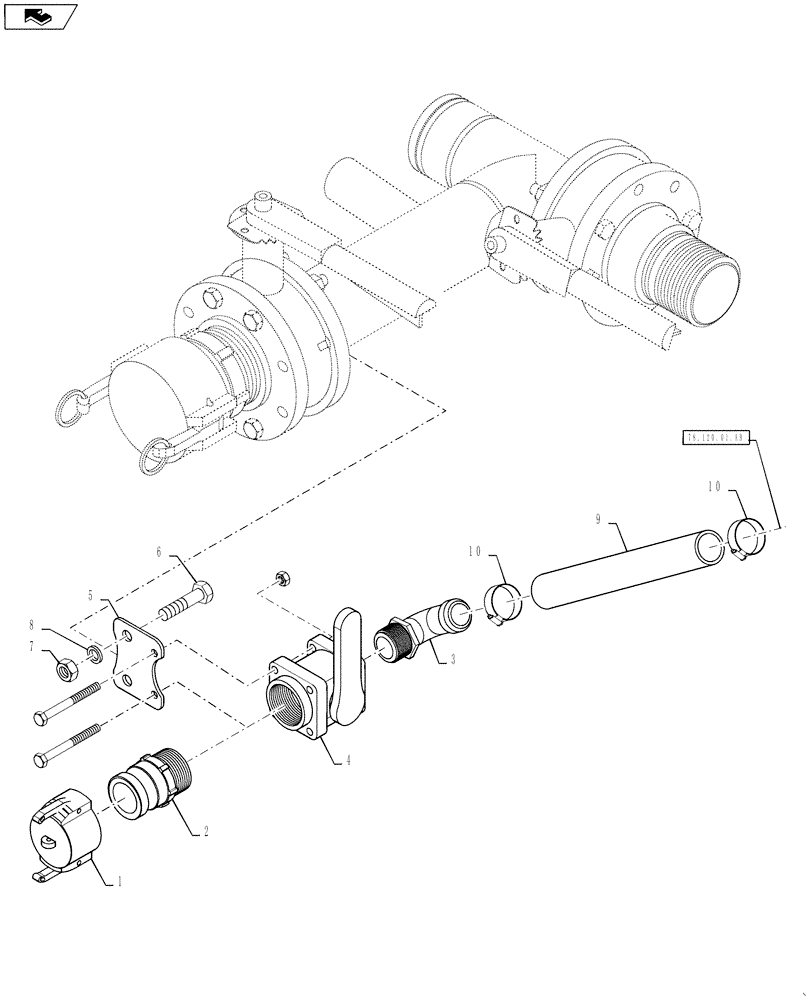

Запчасти Case IH 610 (78.120.01.AA) - FOAM MARKER TANK FILL (78) - SPRAYING

1

BN22901

DUST CAP,2" Cam Lever Dust Cap

2" Cam Lever, Poly

1шт.

2

BN2396382

COUPLING,2" Male Adapter-2" Male Thread

2" Cam x 2" MPT, Poly

1шт.

3

BN314145

SHANK

2" MPT x 1-1/2" Hose Barb, Poly

1шт.

4

BN317387

VALVE,2" Standard Port Valve

2" Standard

1шт.

5

343089A1

BRACKET, SUPPORTING

Mount, Foam Marker Tank Fill Valve

1шт.

6

86980425

BOLT,Hex, M12 - 1.75 x 50mm, Cl 8.8, DOR

M12 - 1.75 x 50, 8.8, DOR

2шт.

7

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

2шт.

8

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

2шт.

9

BN322114

HOSE,1.50" ID x 16.00"

Kanaflex

1шт.

10

BN310448

HOSE CLAMP

#28, Stainless Steel

2шт.
