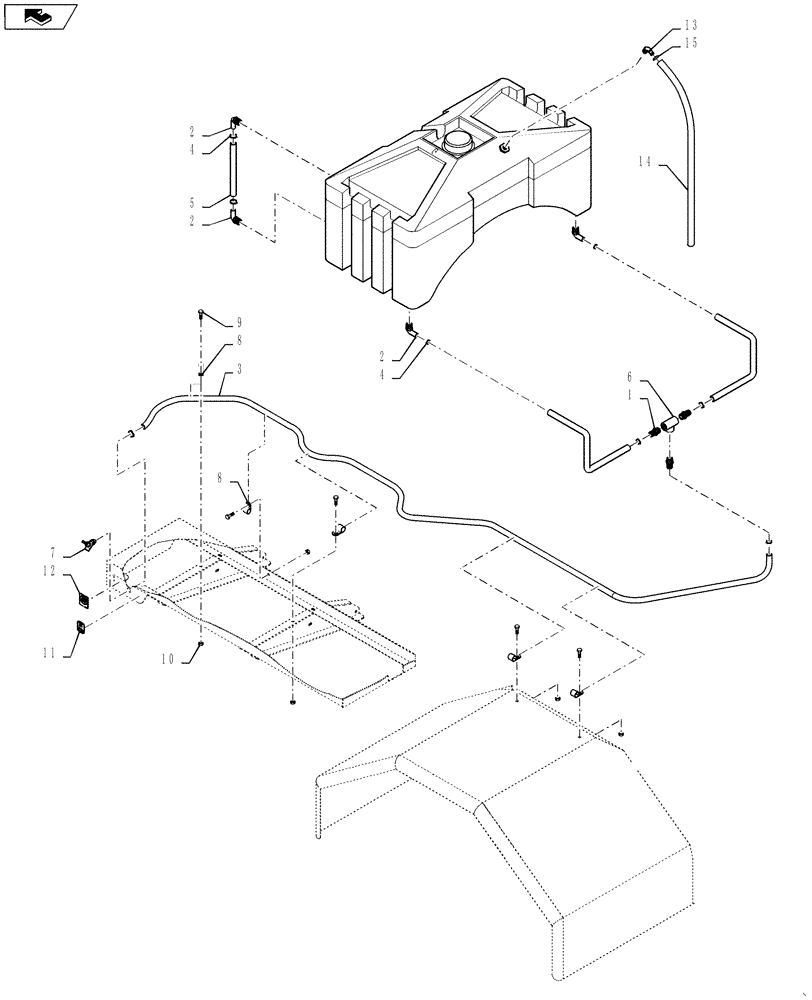

Запчасти Case IH 610 (78.110.21.AA) - HAND RINSE TANK PLUMBING (78) - SPRAYING

1

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

3шт.

2

BN53475

ELBOW,90 Degree Elbow, 1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

4шт.

3

BN2393068

TUBE

1" Suction Style K

29шт.

4

87487834

CLAMP,0.81" - 1.5"

#16, Stainless Steel

8шт.

5

BN54256

HOSE

Bulk, 1.0" ID x 1/8" Wall Clear Vinyl, 12" Required

1шт.

6

BN73629

TEE

1" Poly Pipe

1шт.

7

BN53817

DRAIN VALVE

Ball, 1/2" NPT x Garden Hose Thread, Blue Handle

1шт.

8

515-23333

CLAMP,1 5/16", Insul, 3/8" Bolt

5шт.

9

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

5шт.

10

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

5шт.

11

BN323729

DECAL

Hand Wash

1шт.

12

87271146

DECAL

Do Not Drink

1шт.

13

BN73562

FITTING,3/4" Male Thread x 3/4" 90 Degree Hose Barb

3/4" NPT x 3/4" Hose Barb, Poly

1шт.

14

BN320451

HOSE,0.75" ID x 81.50"

1шт.

15

BN310446

HOSE CLAMP

#12, Stainless Steel

1шт.
