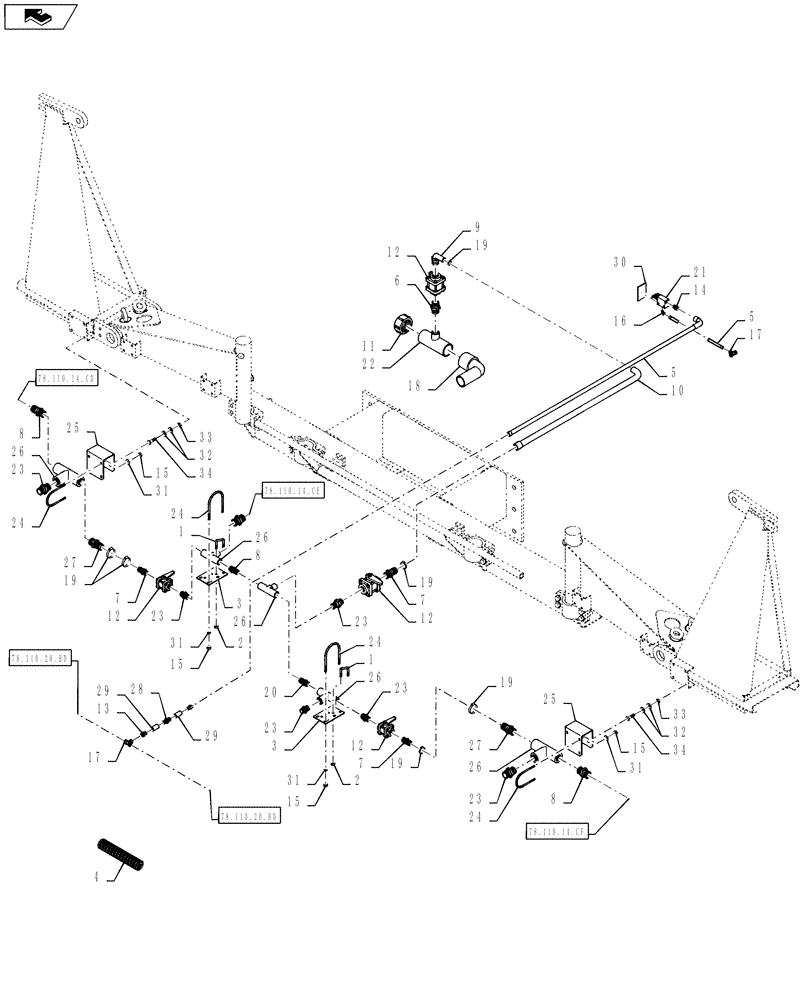

Запчасти Case IH 610 (78.110.20.BC) - LIQUID RECOVERY, 60/85 BOOM, 60" SPACING, CENTER BOOM (78) - SPRAYING

1

BN319918

U-BOLT,SQ BND 1.31" ID x 3/8"

BOLT "U" Square Bend 3/8"-16 x 1.31 wide x 2.00 Deep

2шт.

2

87343970

NUT,3/8"-16, G8, DOR

4шт.

3

87271148

PLATE

Recovery Valve

2шт.

4

BN2290335

LOOM

Split 1/4" id #1783

40шт.

5

BN2292089

AIR INTAKE TUBE

Synflex 1/4" Black, Bulk

1шт.

6

BN73648

NIPPLE

1" Short Poly Pipe

1шт.

7

87744535

FITTING

1" NPT x 1-1/4" Hose Barb, Poly

3шт.

8

413083A1

PIPE FITTING,1-1/2" Male Thread x 1-1/2" Hose Barb

Hose Barb, 1 1/2"

3шт.

9

BN67315

FITTING,1" Male Thread x 1-1/4" 90 Degree Hose Barb

1" NPT x 1-1/4" Hose Barb, Poly

1шт.

10

342228A1

HOSE,31.8mm ID x 30480mm L

Bulk, 1-1/4" Suction, Cut To Required Length

1шт.

11

BN2293320

CAP

2" Poly

1шт.

Not Used If Chemical Inductor Is Installed

1шт.

12

BN73605

HYDRAULIC VALVE

1" Ball Poly

4шт.

13

BN2399401

ADAPTER

1/4" MPT x 1/4" OD Tube, Push Lock Fitting

2шт.

14

BN2399402

ADAPTER

1/8" MPT x 1/4" OD Tube, Push Lock Fitting

1шт.

15

BN55359

LOCK NUT,1/4"-20, SS

16шт.

16

BN2399405

90 ELBOW

1/8" MPT x 1/4" OD Tube, Push Lock Fitting

1шт.

17

BN2399408

UNION TEE

1/4" OD Tube, Push Lock Fitting

2шт.

Install Tee Into Air Line From Aux Port Of The Manifold Box To The Stabilizers

1шт.

18

BN73789

FITTING

2" NPT 90°, Poly

1шт.

Not Used If Chemical Inductor Is Installed

1шт.

19

87487834

CLAMP,0.81" - 1.5"

#16, Stainless Steel

6шт.

20

BN73715

NIPPLE,1-1/2" Short Poly Nipple

1 1/2" Short Poly

2шт.

21

BN2402091

VALVE

Air Toggle 3-Way

1шт.

22

BN8195384

LUBE NIPPLE

LUBRICATOR Modified Nipple, 2"

1шт.

Install Tee To Suction Manifold

1шт.

23

BN73741

NIPPLE

1-1/2" NPT x 1" NPT, Poly

6шт.

24

BN303201

U-BOLT

BOLT "U" 1/4 x 2.38R x 3.75

8шт.

25

BN304511

SUPPORT

Nozzle Recovery

2шт.

26

BN73714

TEE,1-1/2" Female NPT x 1-1/2" Female NPT x 1-1/2" Female NPT, Poly

1-1/2" NPT, Poly

5шт.

27

BN73740

PIPE FITTING,1-1/2" Male Thread x 1-1/4" Hose Barb

1-1/2 NPT X 1-1/4 Hose Barb, Poly

2шт.

28

BN307985

VALVE

Check, 1/4 NPT

1шт.

29

BN73015

COUPLING

1/4" NPT, Full, Stainless Steel

2шт.

30

BN313943

DECAL

Nozzle Recovery System

1шт.

31

BN50138

WASHER,1/4", SS

16шт.

32

BN50142

WASHER,5/16", Stainless Steel

16шт.

33

BN55361

NUT,5/16"-18, Nylon, Stainless

8шт.

34

BN50476

BOLT,5/16"-18 x 0.75", Stainless

8шт.
