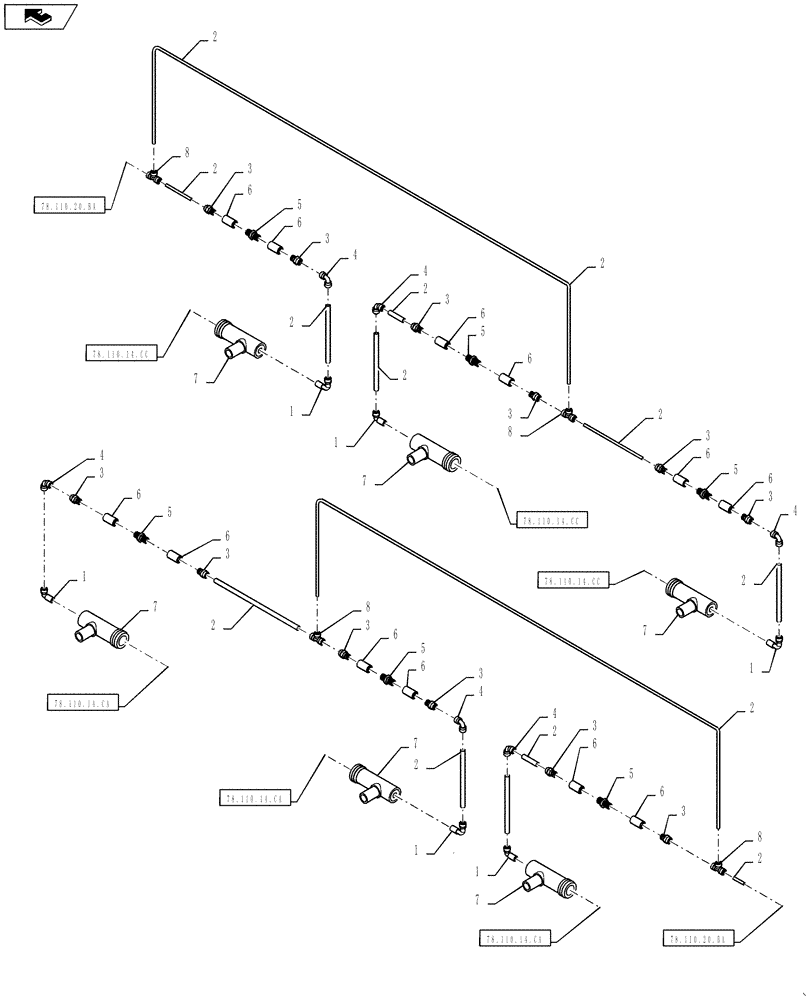

Запчасти Case IH 610 (78.110.20.BB) - LIQUID RECOVERY, 60/85 BOOM, 30" SPACING, OUTER BOOMS, LH/RH (78) - SPRAYING
2
3
3
6
3
7
2
1
8
2
6
7
8
5
5
4
2
1
home
2
8
8
4
2
3
3
2
4
5
6
1
1
4
78.110.14.ca
78.110.14.cc
78.110.14.cc
78.110.14.cc
78.110.20.ba
78.110.20.ba
78.110.14.ca
78.110.14.ca
4
1
3
5
7
3
2
2
6
6
3
3
7
5
3
7
5
7
2
6
6
6
1
6
3
6
6
2
4
2
6
2
3
№
Артикул
Название
Примечание
Количество
1
BN2399404
90 ELBOW
1/4" MPT x 1/4" OD Tube, Push Lock Fitting
6шт.
2
BN2292089
AIR INTAKE TUBE
Synflex 1/4" Black, Bulk
1шт.
3
BN2399401
ADAPTER
1/4" MPT x 1/4" OD Tube, Push Lock Fitting
12шт.
4
BN2399409
90 ELBOW
1/4" OD Tube, Push Lock Fitting
6шт.
5
BN307985
VALVE
Check, 1/4 NPT
6шт.
6
BN73015
COUPLING
1/4" NPT, Full, Stainless Steel
12шт.
7
BN8195385
TEE
Modified Nozzle, 1/4-18 NPT
6шт.
8
BN2399408
UNION TEE
1/4" OD Tube, Push Lock Fitting
4шт.
Выбрано товаров: 8
