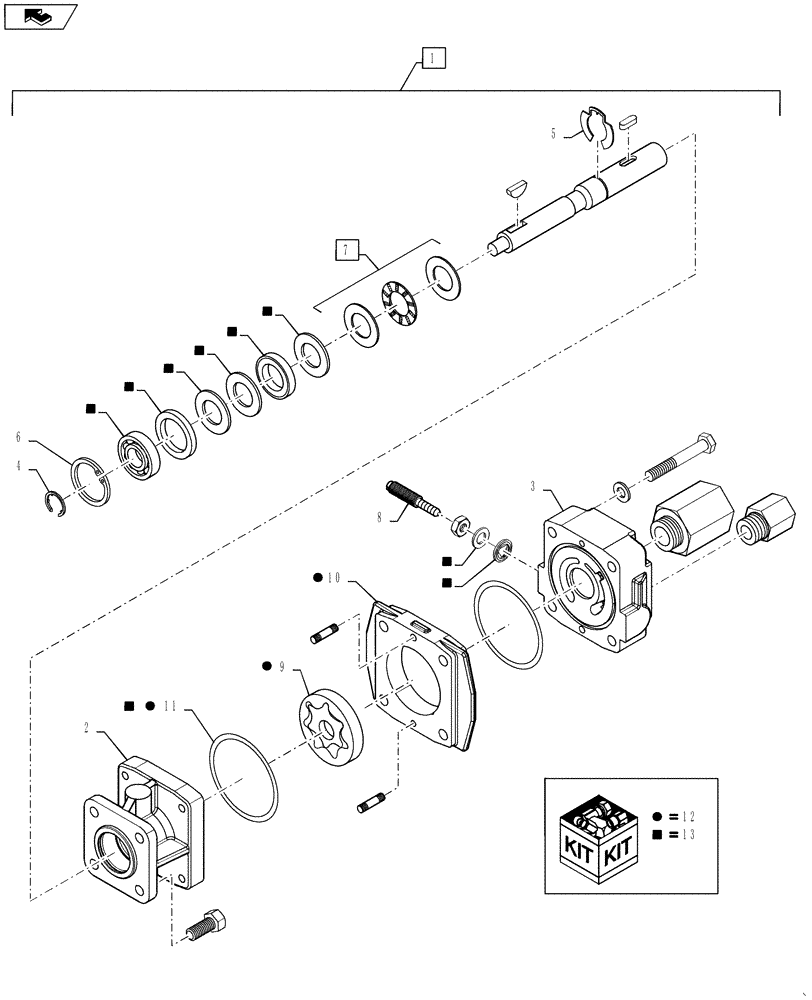

Запчасти Case IH 610 (78.110.19.BC) - INTERNAL RINSE PUMP HYDRAULIC MOTOR, BREAKDOWN (78) - SPRAYING

1

84341717

HYDRAULIC MOTOR

Internal Rinse Pump

1шт.

2

84364089

BODY

1шт.

3

84364090

END PLATE

1шт.

4

6057

SNAP RING

Retaining

1шт.

5

87578620

SNAP RING

Retaining

1шт.

6

BN98259

RING

Retaining

1шт.

7

87577677

BEARING ASSY

1шт.

8

87577683

VALVE STEM

Valve stem

1шт.

9

87515551

GEROTOR

1шт.

10

87515550

HOUSING

Gerotor

1шт.

11

87515547

O-RING

2шт.

12

BN53770

REPAIR KIT

Includes Ref 9 - 11

1шт.

13

84325648

SEAL KIT

Hydraulic Motor

1шт.
