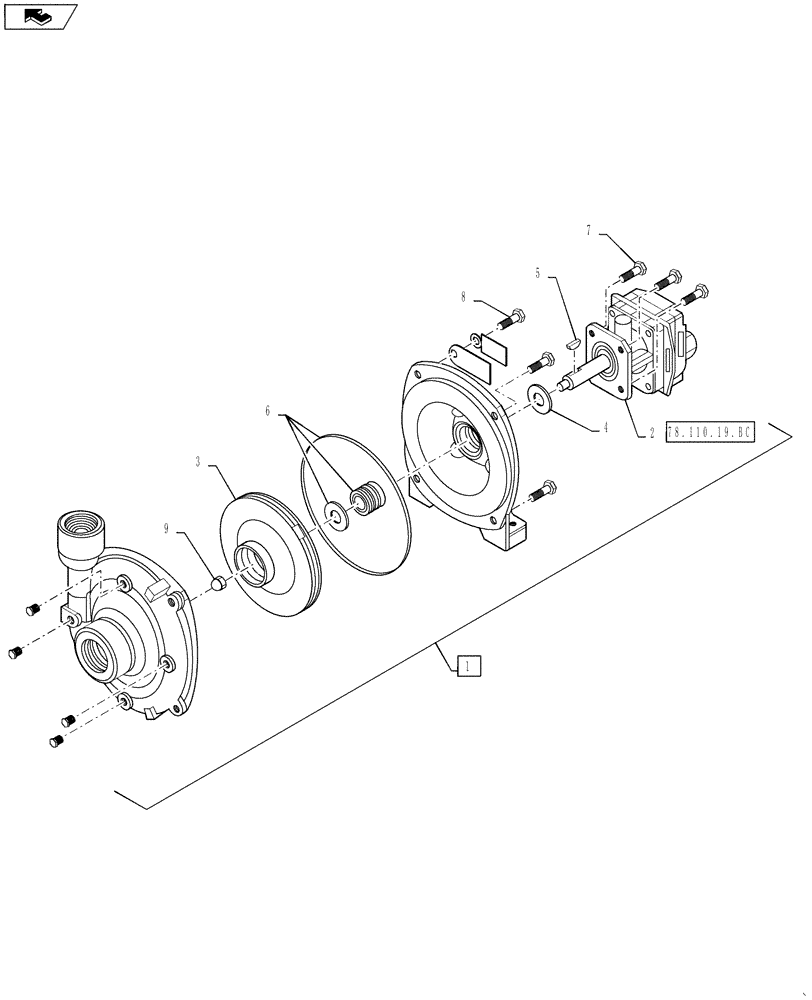

Запчасти Case IH 610 (78.110.19.BB) - INTERNAL RINSE PUMP BREAKDOWN (78) - SPRAYING

1

87393970

PUMP

Internal Rinse

1шт.

2

84341717

HYDRAULIC MOTOR

Internal Rinse Pump

1шт.

See Fig 78.110.19.BC For Service Parts

1шт.

3

BN53692

IMPELLER

1шт.

4

4194

RING

Slinger seal

1шт.

5

6059

KEY

Woodruff

1шт.

6

BN311826

SEAL KIT

1шт.

7

84270018

BOLT

5/16" - 18 x 7/8"

4шт.

8

84270010

BOLT

3/8" - 16 x 7/8"

4шт.

9

4199

NUT

Impeller

1шт.
