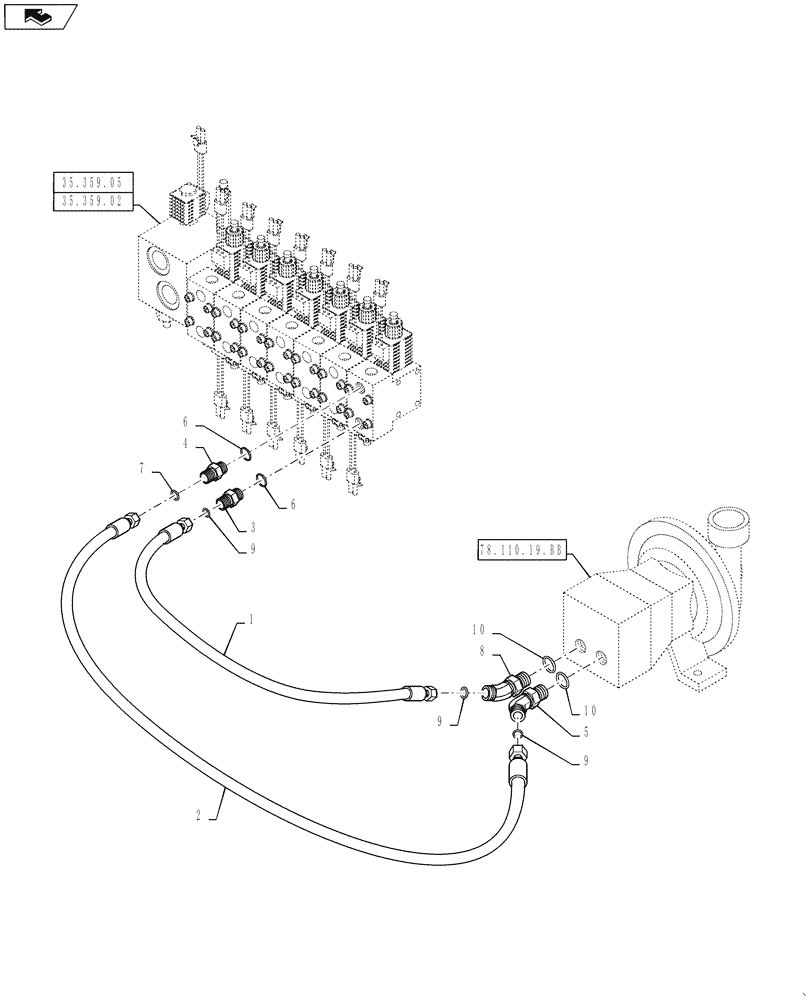

Запчасти Case IH 610 (78.110.19.BA) - HYDRAULIC COMPONENTS, INTERNAL WASH (78) - SPRAYING

1

BN316765

HOSE

9/16-18 Female ORFS Swivel X 9/16-18 Female ORFS Swivel Elbow X 3/8 ID X 64" Long, Valve To Motor

1шт.

2

BN316766

HOSE ASSY.

3/4-16 Female ORFS Swivel X 3/4-16 Female ORFS Swivel Elbow X 1/2" ID X 66" Long Motor Return To Valve

1шт.

3

BN302646

FITTING

11/16-16 ORFS x 9/16-18 ORB, Includes Ref 9 and 6

1шт.

4

BN302649

FITTING

13/16-16 ORFS x 9/16-18 ORB, Includes Ref 7 and 6

1шт.

5

BN302638

FITTING

11/16-16 ORFS X 3/4-16 ORB, , Includes Ref 9 and 10

1шт.

6

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

9/16", ORB

2шт.

7

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

13/16", ORFS

1шт.

8

BN303940

FITTING

Elbow, 45, Adj, 11/16-16 ORFS X 3/4-16 ORB, Includes Ref 9 and 10

1шт.

9

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

11/16", OFRS

3шт.

10

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3/4", ORB

2шт.
