(78.110.19.AC) - WET BOOM CONTROL VALVE

Запчасти Case IH 610 (78.110.19.AC) - WET BOOM CONTROL VALVE (78) - SPRAYING

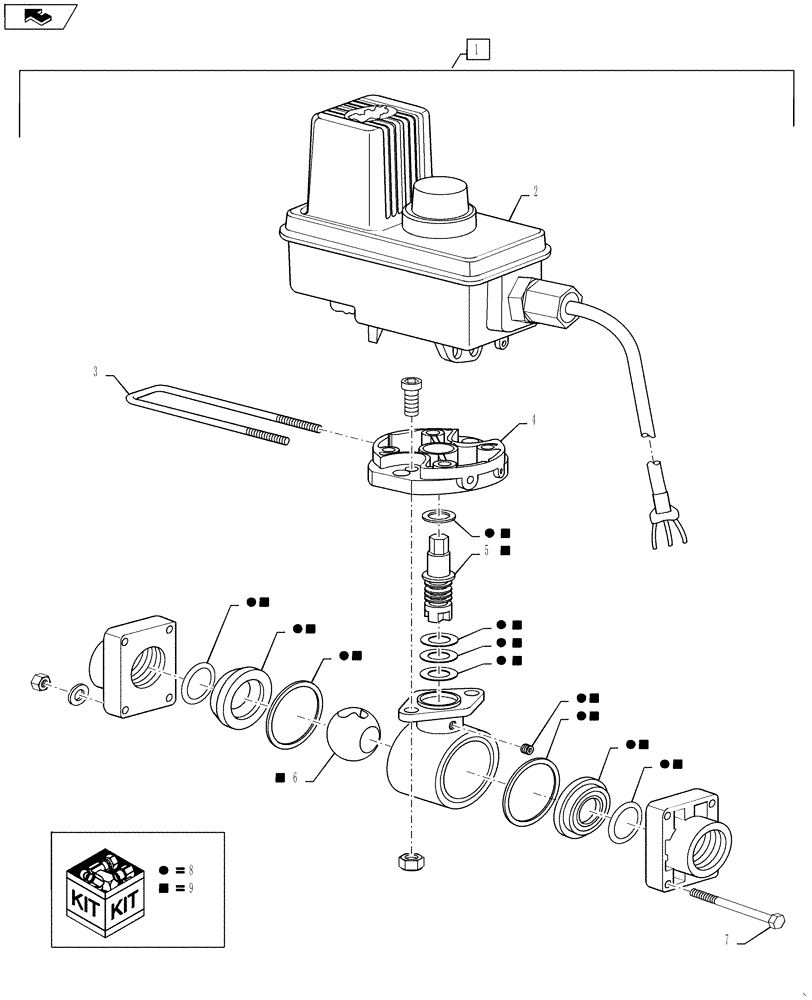

Схема запчастей Case IH 610 - (78.110.19.AC) - WET BOOM CONTROL VALVE (78) - SPRAYING
5
9
4
9
home
8
9
9
8
9
8
8
9
8
8
9
9
8
9
3
1
8
8
9
8
8
9
9
6
7
9
8
9
2
8
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87389559

VALVE

Electric, 1" Ball, Boom Section Control, Includes Ref 2 - 9

1шт.

2

84387485

ELECTRIC MOTOR

22 RPM, 0.5m Pigtail, With Connector

1шт.

3

87500054

CLIP

Motor Retaining

1шт.

4

87500053

PLATE

Motor Adaptor

1шт.

5

87500140

VALVE STEM

Stainless Steel

1шт.

6

87422332

BALL

Poly, White, 2-Way

1шт.

7

BN67050

BOLT,1/4"-20 X 3.00", Stainless Steel

4шт.

8

87422324

SERVICE KIT

Ball Valve Seal Kit

1шт.

9

87500141

REPAIR KIT

Ball Valve Repair Kit, Includes Ref 5, 6 and 8

1шт.

Выбрано товаров: 0
