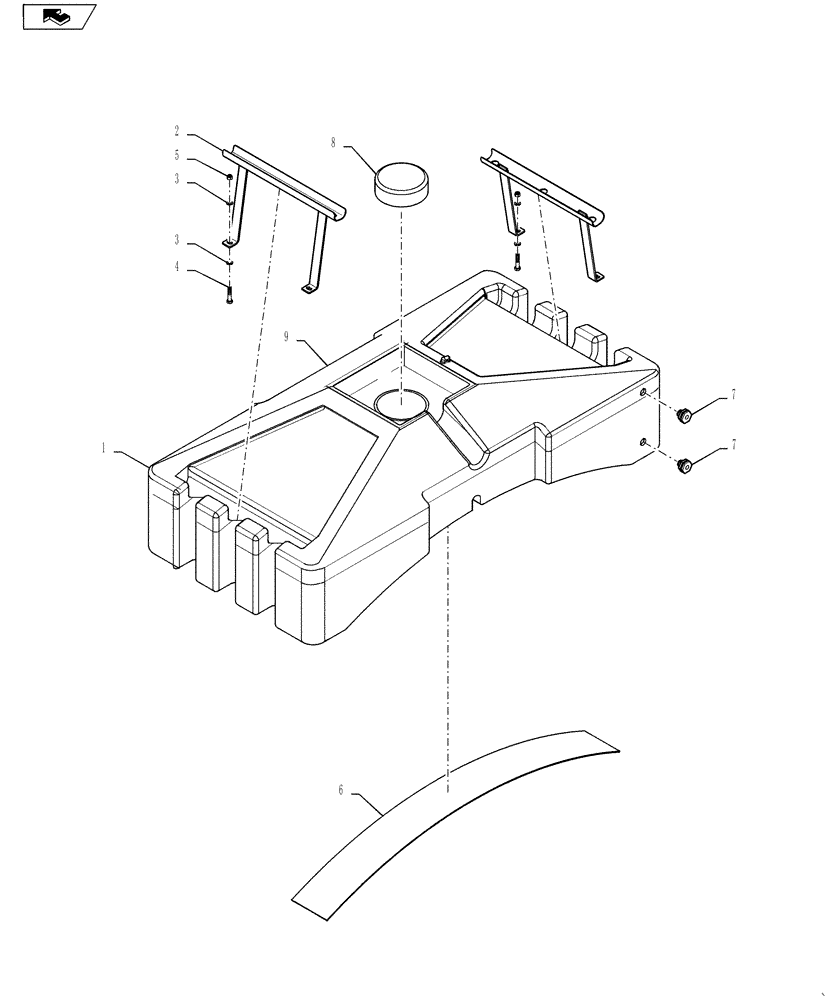

Запчасти Case IH 610 (78.110.19.AA) - RINSE WATER TANK MOUNTING (78) - SPRAYING

1

87270629

TANK

Saddle, 135 Gallon, Includes Ref 7 - 9

1шт.

2

86986738

HOLDER

Hold Down, 135 Gallon Tank

2шт.

3

BN50146

WASHER,3/8", Stainless

8шт.

4

BN50948

BOLT,Hex, 3/8" - 16 x 2 1/2", Stainless

3/8-16 X 2-1/2", Stainless Steel

4шт.

5

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

6

BN0710056

RUBBER SEAL

Neoprene, 1/4", X 5" Wide

12.5шт.

7

BN2403685

BULKHEAD

1" NPT, Poly

4шт.

8

BN314276

COVER

6" With Breather

1шт.

9

BN311041

FITTING

3/4" NPT, Poly

1шт.
