(78.110.16.BA) - NOZZLE PLUMBING, 60/85 BOOM, 30"/60" SPACING, 3 SECTION CONTROL

Запчасти Case IH 610 (78.110.16.BA) - NOZZLE PLUMBING, 60/85 BOOM, 30"/60" SPACING, 3 SECTION CONTROL (78) - SPRAYING

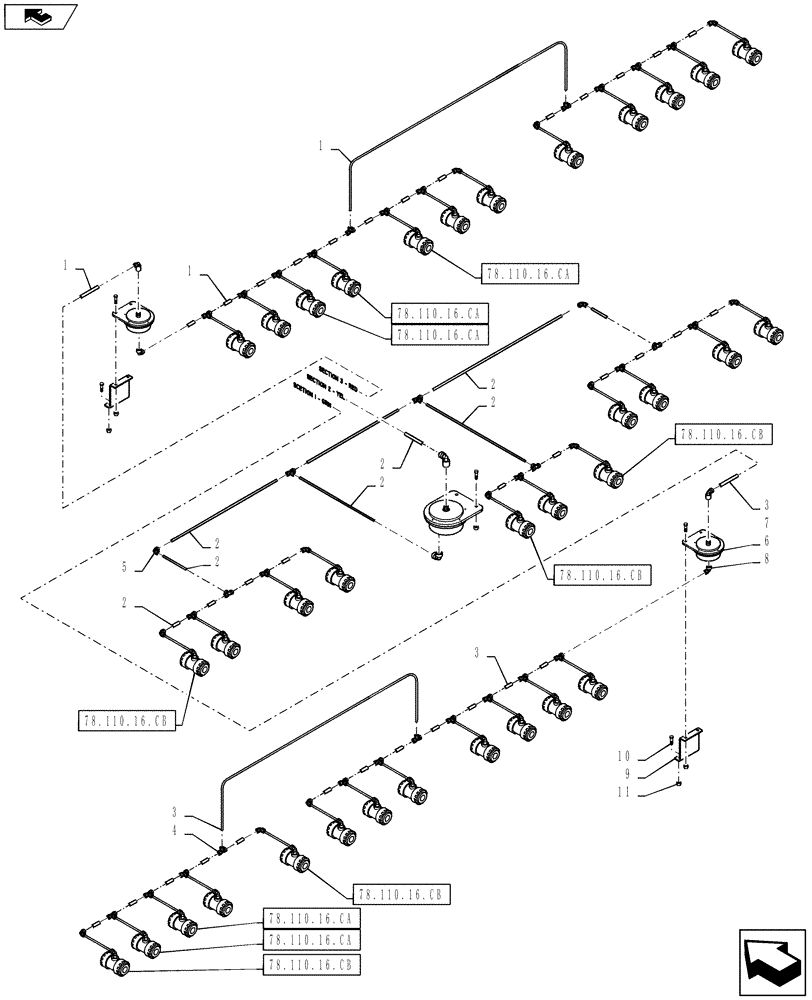

Схема запчастей Case IH 610 - (78.110.16.BA) - NOZZLE PLUMBING, 60/85 BOOM, 30"/60" SPACING, 3 SECTION CONTROL (78) - SPRAYING
2
2
2
3
11
5
home
6
1
2
7
3
2
2
3
1
78.110.16.ca
78.110.16.ca
78.110.16.ca
78.110.16.ca
78.110.16.cb
78.110.16.cb
78.110.16.cb
78.110.16.cb
78.110.16.ca
78.110.16.cb
4
8
2
9
1
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN2393051

TUBE,1/4" X 500' BULK, SAE J844, RED

Air, Synflex 1/4" Red, Bulk, 71' Required For This Boom Configuration

1шт.

2

BN2393052

TUBE,1/4" X 100' BULK, SAE J844, YELLOW

Air, Synflex 1/4" Yellow, Bulk, 25' Required For This Boom Configuration

1шт.

3

BN2393053

TUBE,1/4" X 100' BULK, SAE J844, GREEN

Air, Synflex 1/4" Green, Bulk, 71' Required For This Boom Configuration

1шт.

4

BN2399408

UNION TEE

1/4" OD Tube, Push Lock Fitting

9шт.

5

BN2399409

90 ELBOW

1/4" OD Tube, Push Lock Fitting

2шт.

6

BN2395255

SHUT-OFF VALVE

Boom Spray Control Valve, Quick Release, Poly

3шт.

7

BN2395255-001

DIAPHRAGM

Boom Shut Off Valve, Service Part For Ref 6

1шт.

8

BN2399404

90 ELBOW

1/4" MPT x 1/4" OD Tube, Push Lock Fitting

6шт.

9

87270557

MOUNTING PLATE

Boom Shut-Off Valve

2шт.

10

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

10шт.

11

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

10шт.
