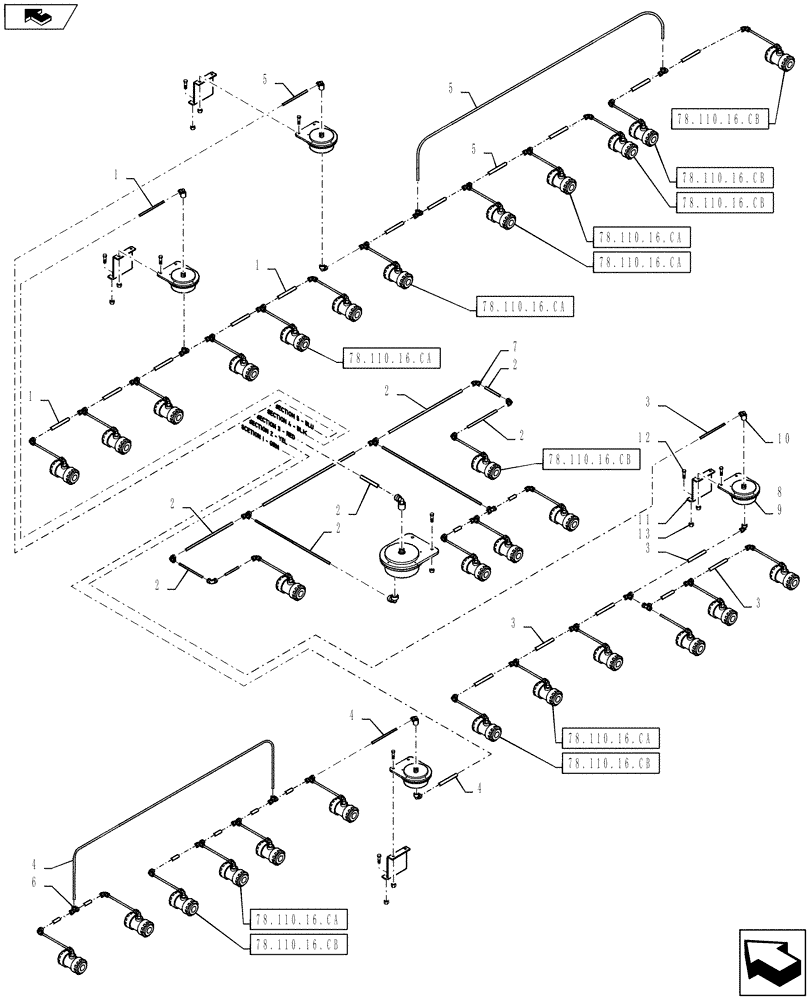

Запчасти Case IH 610 (78.110.16.AB) - NOZZLE PLUMBING, 70 BOOM, 30" SPACING, 5 SECTION CONTROL (78) - SPRAYING

1

BN2292089

AIR INTAKE TUBE

Synflex 1/4" Black, Bulk, 42' Required For This Boom Configuration

1шт.

2

BN2393051

TUBE,1/4" X 500' BULK, SAE J844, RED

Air, Synflex 1/4" Red, Bulk, 18' Required For This Boom Configuration

1шт.

3

BN2393052

TUBE,1/4" X 100' BULK, SAE J844, YELLOW

Air, Synflex 1/4" Yellow, Bulk, 42' Required For This Boom Configuration

1шт.

4

BN2393053

TUBE,1/4" X 100' BULK, SAE J844, GREEN

Air, Synflex 1/4" Green, Bulk, 66' Required For This Boom Configuration

1шт.

5

BN2393054

TUBE,1/4" X 16' BULK, SAE J844, BLUE

Air, Synflex 1/4" Blue, Bulk, 66' Required For This Boom Configuration

1шт.

6

BN2399408

UNION TEE

1/4" OD Tube, Push Lock Fitting

7шт.

7

BN2399409

90 ELBOW

1/4" OD Tube, Push Lock Fitting

4шт.

8

BN2395255

SHUT-OFF VALVE

Boom Spray Control Valve, Quick Release, Poly

5шт.

9

BN2395255-001

DIAPHRAGM

Boom Shut Off Valve, Service Part For Ref 8

1шт.

10

BN2399404

90 ELBOW

1/4" MPT x 1/4" OD Tube, Push Lock Fitting

10шт.

11

87270557

MOUNTING PLATE

Boom Shut-Off Valve

4шт.

12

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

10шт.

13

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

10шт.
