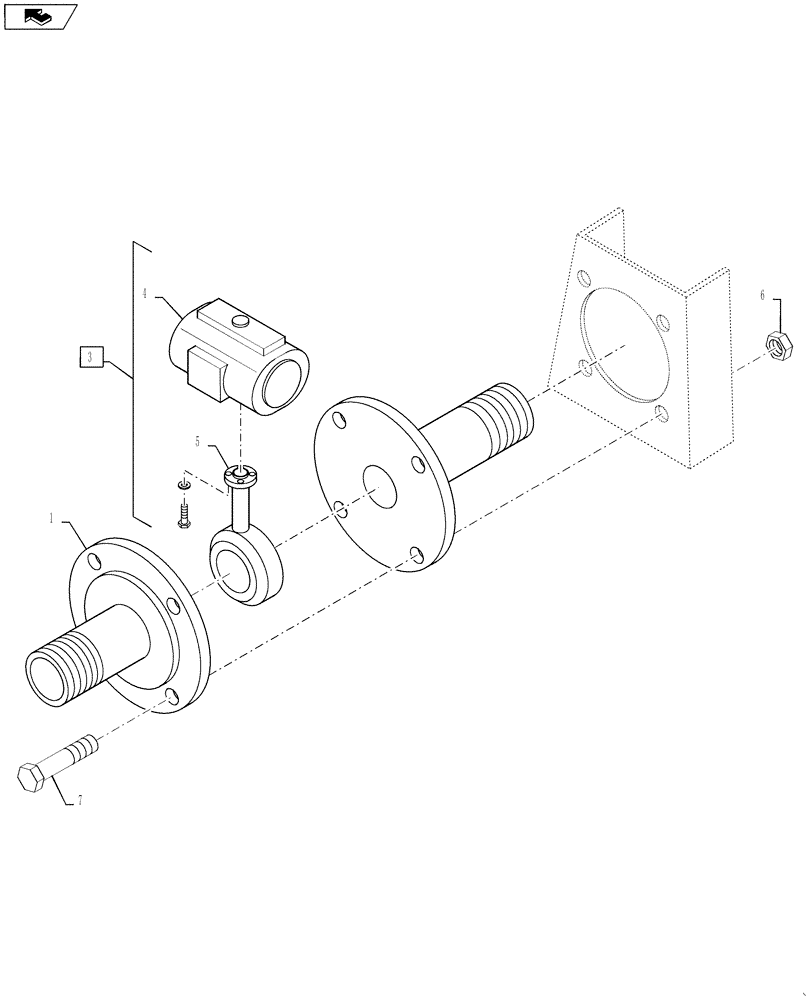

Запчасти Case IH 610 (78.110.15.AB) - BOOM SPRAYBAR CONTROL VALVE, 2" PLUMBING (78) - SPRAYING

1

BN8195028

FLANGE

2" Hose Barb

2шт.

2

BN2399401

ADAPTER

1/4" MPT x 1/4" OD Tube, Push Lock Fitting

2шт.

3

87268421

HYDRAULIC VALVE

Butterfly, Bray, With Actuator, Includes Ref 4 and 5

1шт.

4

84147102

VALVE

2" Butterfly, No Handle

1шт.

5

84147103

ACTUATOR

Pneumatic Valve

1шт.

6

87310322

NUT

5/8-11, GB, DOR

4шт.

7

87310192

BOLT

5/8"-11 x 4", G5

4шт.
