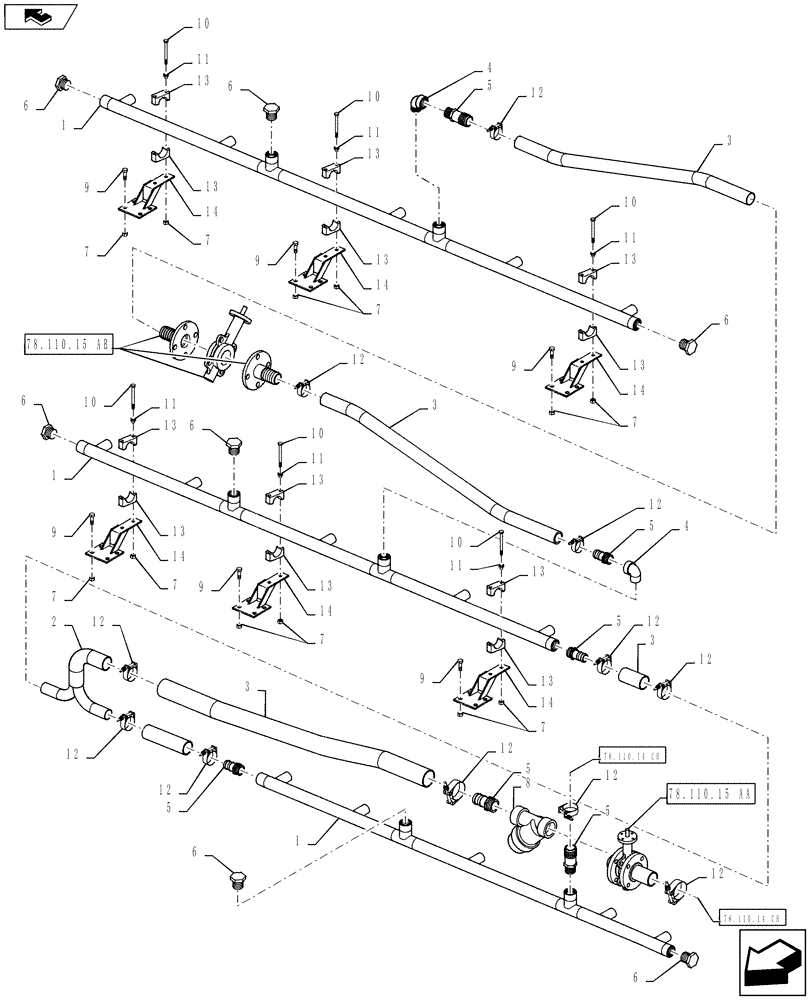

Запчасти Case IH 610 (78.110.14.CI) - BOOM PLUMBING, 60/85 BOOM, 2" BOOM LINES, 30" SPACING, RH BOOM (78) - SPRAYING

1

BN8195541

BOOM

Wet, 5 Nozzles, 2" Stainless Steel

3шт.

2

BN8195423

BOOM

Manifold, 2" Stainless Steel

1шт.

3

BN29564

HOSE

2" EPDM, Suction, Bulk, Cut To Length

1шт.

4

BN2296593

ELBOW

Street 2" 90 Poly

2шт.

5

BN73781

FITTING,2" Male NPT x 2" Hose Barb, Poly

2" NPT x 2" Hose Barb

6шт.

6

BN73794

PLUG,2" Male NPT, Poly

2" Poly Pipe

7шт.

7

BN55359

LOCK NUT,1/4"-20, SS

36шт.

8

BN2407999

FILTER STRAINER,2" LSQ Strainer

In-Line, 2", 6 Mesh, Poly

1шт.

9

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

14шт.

10

BN2403253

BOLT

1/4-20 X 4 1/2, Stainless Steel

18шт.

11

BN2403312-001

SPACER

Insert

18шт.

12

BN2403358

CLAMP,50.8mm - 63.5mm

T-Bolt Band 2 1/2"

11шт.

13

BN2403325

CLAMP

2" Pipe

9шт.

14

87270285

MOUNTING PLATE

Wet Boom

9шт.
