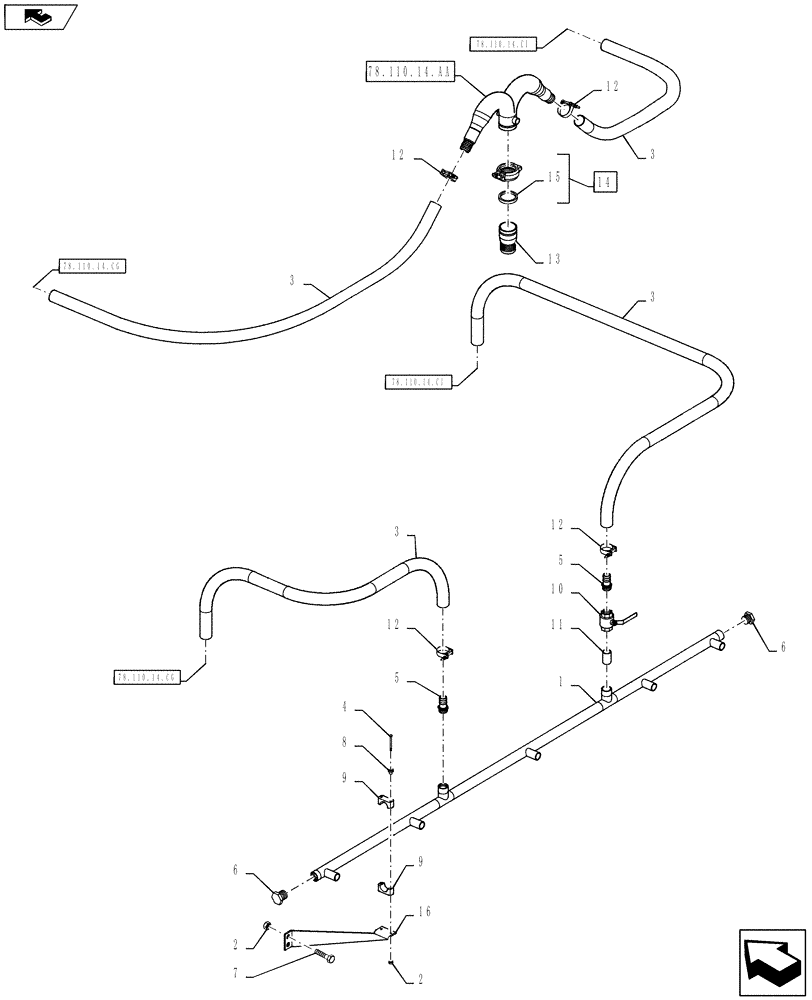

Запчасти Case IH 610 (78.110.14.CH) - BOOM PLUMBING, 60/85 BOOM, 2" BOOM LINES, 30" SPACING, CENTER SECTION (78) - SPRAYING

1

BN8195541

BOOM

Wet, 5 Nozzles, 2" Stainless Steel

1шт.

2

BN55359

LOCK NUT,1/4"-20, SS

16шт.

3

BN29564

HOSE

2" EPDM, Suction, Bulk, Cut To Length

1шт.

4

BN2403253

BOLT

1/4-20 X 4 1/2, Stainless Steel

8шт.

5

BN73781

FITTING,2" Male NPT x 2" Hose Barb, Poly

2" NPT x 2" Hose Barb

2шт.

6

BN73794

PLUG,2" Male NPT, Poly

2" Poly Pipe

2шт.

7

87342606

BOLT

1/4-20 X 1, 5, DOR

8шт.

8

BN2403312-001

SPACER

Insert

8шт.

9

BN2403325

CLAMP

2" Pipe

4шт.

10

BN2395218

VALVE,2" SS Full Port Ball Valve

Ball 2" Stainless Steel

1шт.

11

BN1420967

LUBE NIPPLE

LUBRICATOR 2" Close, Stainless Steel

1шт.

12

BN2403358

CLAMP,50.8mm - 63.5mm

T-Bolt Band 2 1/2"

4шт.

13

BN2399445

COUPLING

3" Grooved x 3" Hose Barb

1шт.

14

BN2399444

CLAMP,80mm ID

3" Pipe, Includes Seal Ref 15

1шт.

15

BN2399444-001

GASKET

3" Pipe

1шт.

16

BN8191242

SUPPORTING ARM

Rear Wet Boom Support

4шт.
