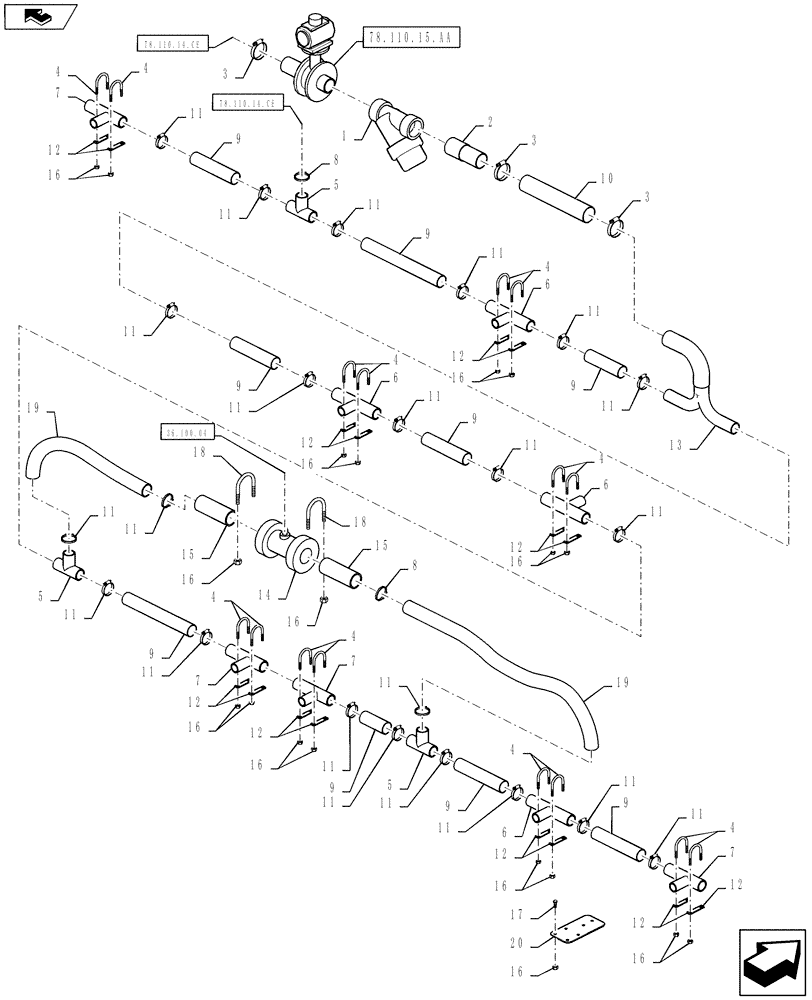

Запчасти Case IH 610 (78.110.14.CF) - BOOM PLUMBING, 60/85 BOOM, 60" SPACING, RH BOOM (78) - SPRAYING

1

BN2407999

FILTER STRAINER,2" LSQ Strainer

In-Line, 2", 6 Mesh, Poly

1шт.

2

BN73781

FITTING,2" Male NPT x 2" Hose Barb, Poly

2" NPT x 2" Hose Barb

1шт.

3

BN2403358

CLAMP,50.8mm - 63.5mm

T-Bolt Band 2 1/2"

3шт.

4

BN2403315

U-BOLT

Round, 1/4"-20 x 1.93 x 2.31 SS

16шт.

5

BN2402038

TEE

1-1/2 Hose Barb, Poly

3шт.

6

BN324828

FITTING,1-1/2" Hose Barb x 1-1/2" Hose Barb x 1" Male Thread Hose Barb Tee

1-1/2" Hose Barb x 1-1/2" Hose Barb x 1" MPT, Poly

4шт.

7

BN2390521

FITTING,1" x 1-1/2" 90 Degree Poly Hose Barb Elbow

1" MPT x 1 1/2" Hose Barb, Poly

4шт.

8

87485001

CLAMP,1.31" - 2.25"

#28, Stainless Steel

3шт.

9

87266737

HOSE

1-1/2" Bulk, Cut to Required Length

1шт.

10

BN29564

HOSE

2" EPDM, Suction, Bulk, Cut To Length

1шт.

11

87485002

CLAMP,1.06" - 2"

Worm Gear, 2"/1.06", Stainless Steel

19шт.

12

87271147

CLAMP

Nozzle

16шт.

13

BN2405274

TUBE

Boom Manifold

1шт.

14

BN2404501

NOZZLE

Stop, 1 1/4"

1шт.

15

BN2294412

FITTING

Hosebarb, 1.25 NPT x 1.50 HB

2шт.

16

BN55359

LOCK NUT,1/4"-20, SS

40шт.

17

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

8шт.

18

BN2400371

CLAMP

3-1/2" Dia, 3/8" Nuts Are Included With Clamp

2шт.

19

BN53842

HOSE,38.10 mm ID Bulk

EPDM, Discharge, Cut to Required Length

1шт.

20

87267136

BRACKET, SUPPORTING

Mount, Nozzle

4шт.
