(78.110.14.BF) - BOOM PLUMBING, 70 BOOM, 60" SPACING, RH BOOM

Запчасти Case IH 610 (78.110.14.BF) - BOOM PLUMBING, 70 BOOM, 60" SPACING, RH BOOM (78) - SPRAYING

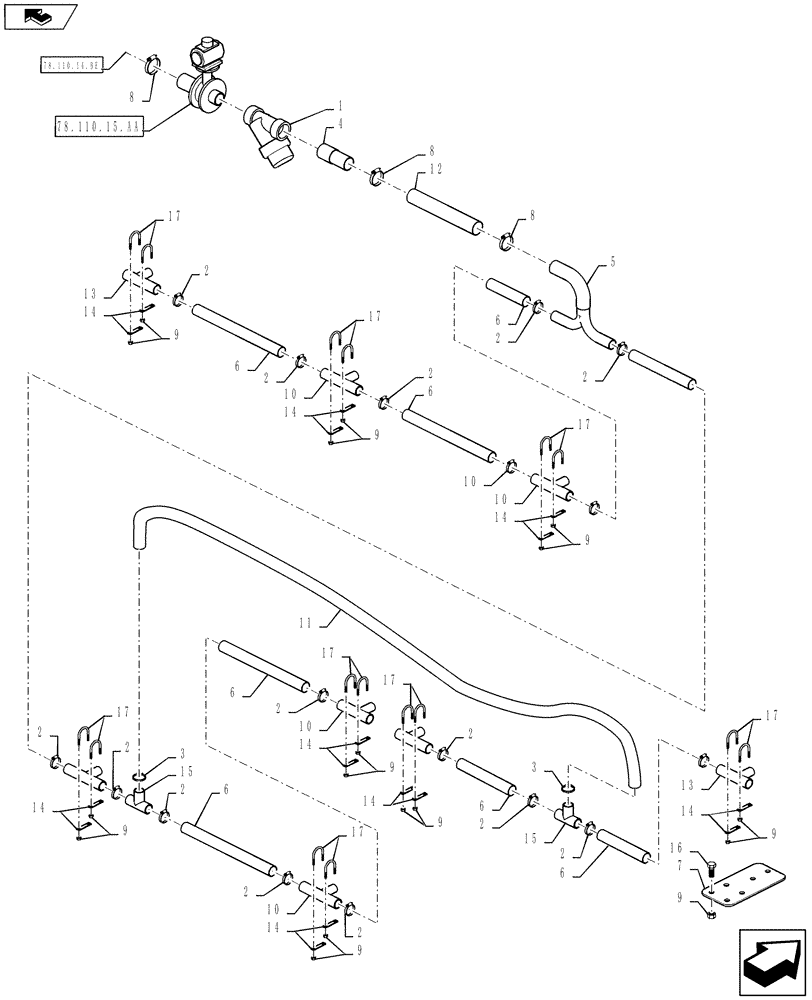

Схема запчастей Case IH 610 - (78.110.14.BF) - BOOM PLUMBING, 70 BOOM, 60" SPACING, RH BOOM (78) - SPRAYING
10
6
17
9
9
2
2
14
7
2
14
9
17
2
home
10
2
17
17
6
8
9
15
9
10
6
10
13
2
5
9
17
8
11
14
14
9
13
1
14
17
14
2
78.110.15.aa
78.110.14.be
3
15
16
12
2
6
2
6
9
2
14
14
10
8
17
4
2
3
9
6
2
2
6
2
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN2407999

FILTER STRAINER,2" LSQ Strainer

In-Line, 2", 6 Mesh, Poly

1шт.

2

87485002

CLAMP,1.06" - 2"

Worm Gear, 2"/1.06", Stainless Steel

17шт.

3

87485001

CLAMP,1.31" - 2.25"

#28, Stainless Steel

6шт.

4

BN73781

FITTING,2" Male NPT x 2" Hose Barb, Poly

2" NPT x 2" Hose Barb

1шт.

5

BN2405274

TUBE

Boom Manifold

1шт.

6

87266737

HOSE

1-1/2" Bulk, Cut to Required Length

1шт.

7

87267136

BRACKET, SUPPORTING

Mount, Nozzle

3шт.

8

BN2403358

CLAMP,50.8mm - 63.5mm

T-Bolt Band 2 1/2"

3шт.

9

BN55359

LOCK NUT,1/4"-20, SS

38шт.

10

BN324828

FITTING,1-1/2" Hose Barb x 1-1/2" Hose Barb x 1" Male Thread Hose Barb Tee

1-1/2" Hose Barb x 1-1/2" Hose Barb x 1" MPT, Poly

4шт.

11

BN53842

HOSE,38.10 mm ID Bulk

EPDM, Discharge, Cut to Required Length

1шт.

12

BN29564

HOSE

2" EPDM, Suction, Bulk, Cut To Length

1шт.

13

BN2390521

FITTING,1" x 1-1/2" 90 Degree Poly Hose Barb Elbow

1" MPT x 1 1/2" Hose Barb, Poly

4шт.

14

87271147

CLAMP

Nozzle

16шт.

15

BN2402038

TEE

1-1/2 Hose Barb, Poly

2шт.

16

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

6шт.

17

BN2403315

U-BOLT

Round, 1/4"-20 x 1.93 x 2.31 SS

16шт.
