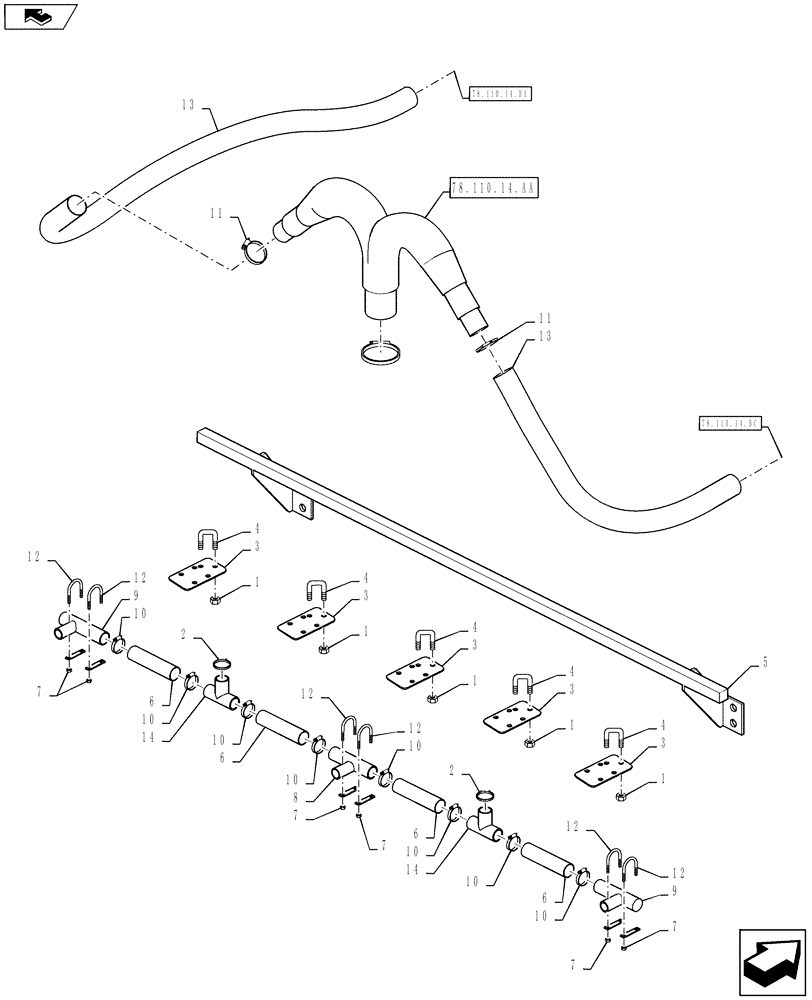

Запчасти Case IH 610 (78.110.14.BB) - BOOM PLUMBING, 70 BOOM, 30" SPACING, CENTER SECTION (78) - SPRAYING

1

87343970

NUT,3/8"-16, G8, DOR

10шт.

2

87485002

CLAMP,1.06" - 2"

Worm Gear, 2"/1.06", Stainless Steel

8шт.

3

87269819

MOUNTING PLATE

Nozzle Liquid

5шт.

4

BN319918

U-BOLT,SQ BND 1.31" ID x 3/8"

BOLT "U" Square Bend 3/8"-16 x 1.31 wide x 2.00 Deep

5шт.

5

BN319097

BAR

Nozzle, 30" & 60" Spacing

1шт.

6

87266737

HOSE

1-1/2" Bulk, Cut to Required Length

1шт.

7

BN55359

LOCK NUT,1/4"-20, SS

12шт.

8

BN324828

FITTING,1-1/2" Hose Barb x 1-1/2" Hose Barb x 1" Male Thread Hose Barb Tee

1-1/2" Hose Barb x 1-1/2" Hose Barb x 1" MPT, Poly

1шт.

9

BN2390521

FITTING,1" x 1-1/2" 90 Degree Poly Hose Barb Elbow

1" MPT x 1 1/2" Hose Barb, Poly

2шт.

10

87271147

CLAMP

Nozzle

8шт.

11

BN2403358

CLAMP,50.8mm - 63.5mm

T-Bolt Band 2 1/2"

2шт.

12

BN2403315

U-BOLT

Round, 1/4"-20 x 1.93 x 2.31 SS

6шт.

13

BN29564

HOSE

2" EPDM, Suction, Bulk, Cut To Length

1шт.

14

BN2402038

TEE

1-1/2 Hose Barb, Poly

2шт.
