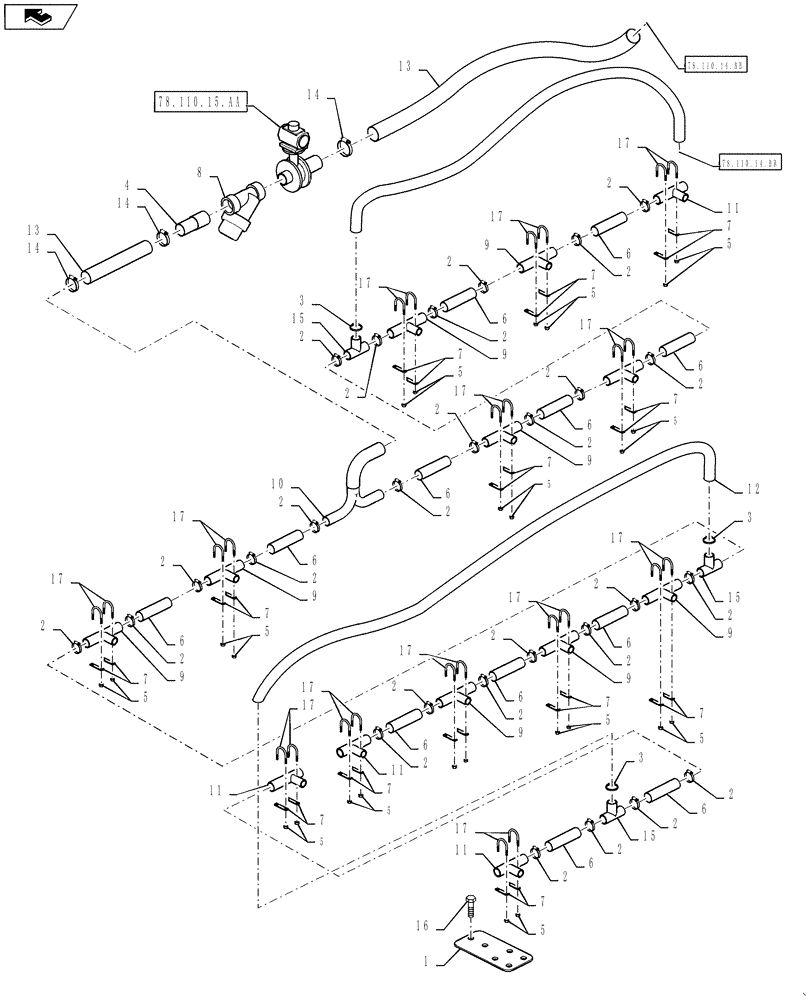

Запчасти Case IH 610 (78.110.14.BA) - BOOM PLUMBING, 70 BOOM, 30" SPACING, LH BOOM (78) - SPRAYING

1

87267136

BRACKET, SUPPORTING

Mount, Nozzle

3шт.

2

87485002

CLAMP,1.06" - 2"

Worm Gear, 2"/1.06", Stainless Steel

27шт.

3

87485001

CLAMP,1.31" - 2.25"

#28, Stainless Steel

6шт.

4

BN73781

FITTING,2" Male NPT x 2" Hose Barb, Poly

2" NPT x 2" Hose Barb

1шт.

5

BN55359

LOCK NUT,1/4"-20, SS

58шт.

6

87266737

HOSE

1-1/2" Bulk, Cut to Required Length

1шт.

7

87271147

CLAMP

Nozzle

26шт.

8

BN2407999

FILTER STRAINER,2" LSQ Strainer

In-Line, 2", 6 Mesh, Poly

1шт.

9

BN324828

FITTING,1-1/2" Hose Barb x 1-1/2" Hose Barb x 1" Male Thread Hose Barb Tee

1-1/2" Hose Barb x 1-1/2" Hose Barb x 1" MPT, Poly

9шт.

10

BN2405274

TUBE

Boom Manifold

1шт.

11

BN2390521

FITTING,1" x 1-1/2" 90 Degree Poly Hose Barb Elbow

1" MPT x 1 1/2" Hose Barb, Poly

4шт.

12

BN53842

HOSE,38.10 mm ID Bulk

EPDM, Discharge, Cut to Required Length

1шт.

13

BN29564

HOSE

2" EPDM, Suction, Bulk, Cut To Length

1шт.

14

BN2403358

CLAMP,50.8mm - 63.5mm

T-Bolt Band 2 1/2"

3шт.

15

BN2402038

TEE

1-1/2 Hose Barb, Poly

3шт.

16

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

12шт.

17

BN2403315

U-BOLT

Round, 1/4"-20 x 1.93 x 2.31 SS

26шт.
