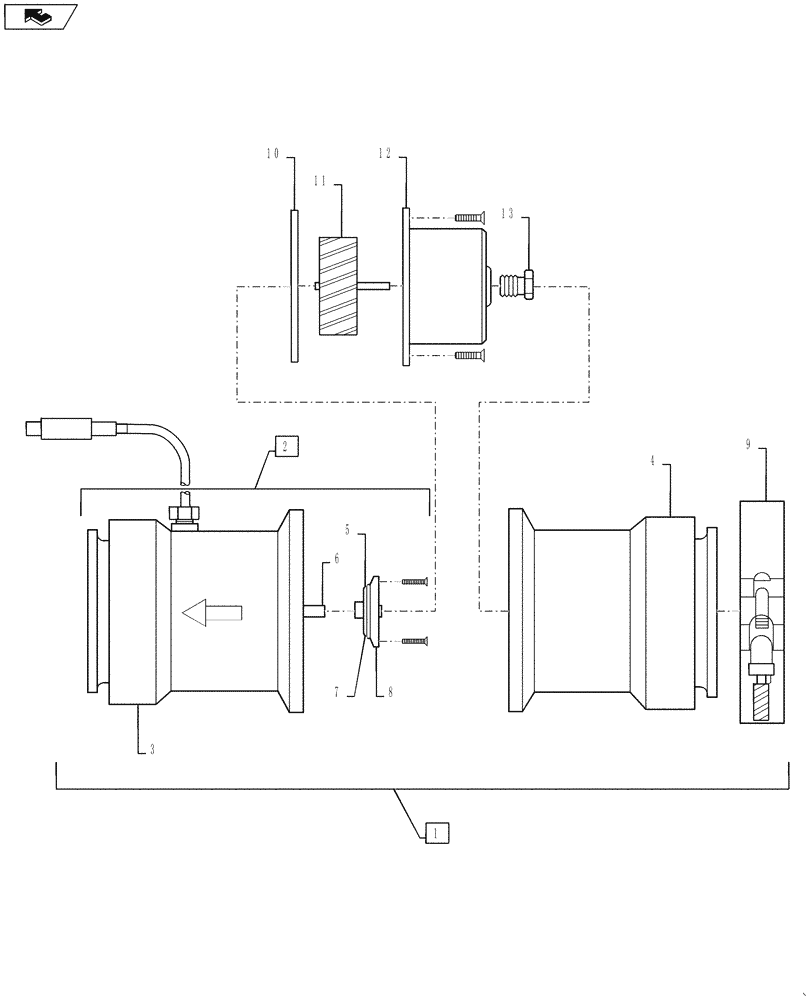

Запчасти Case IH 610 (78.110.14.AC) - RFM 200 FLOWMETER BREAKDOWN (78) - SPRAYING

1

87265853

METER

RFM200 High Pulse Without Restricter, Includes Ref 2 - 13

1шт.

2

87521217

SENSOR

Housing Assembly, Includes Ref 3 and 5 - 8

1шт.

3

87521220

SENSOR

Housing

1шт.

4

NSS

NOT SOLD SEPARAT

Housing

1шт.

5

87521223

BEARING ASSY

End, PC Assembly

1шт.

6

87521228

CONTROL

PC Assembly

1шт.

7

87521232

O-RING

Vitron

1шт.

8

87521233

BEARING ASSY

End Assembly

1шт.

9

87521234

RETAINER

Clamp

1шт.

10

87521235

O-RING

Vitron

1шт.

11

87521239

TURBINE

Without Restricter

1шт.

12

87521254

BEARING ASSY

Bearing

1шт.

13

87521238

TURBINE

Stud Assembly With Bearing

1шт.
