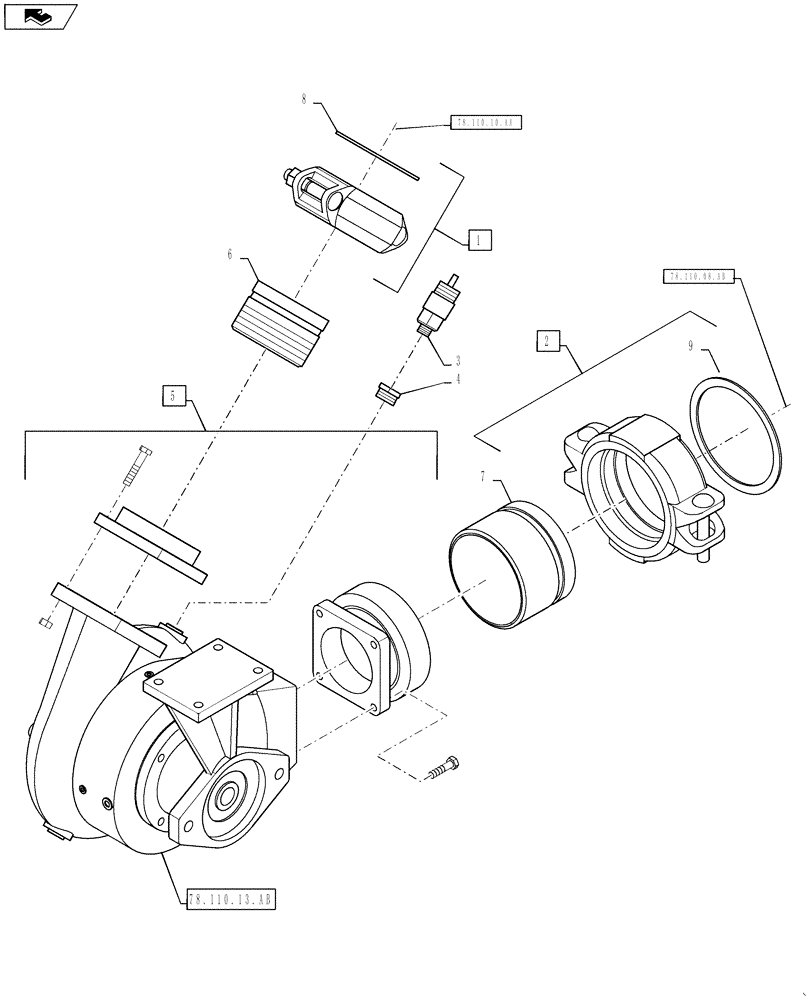

Запчасти Case IH 610 (78.110.13.AA) - PRODUCT PUMP GROUP (78) - SPRAYING

1

BN2399444

CLAMP,80mm ID

3" Pipe, Includes Seal Ref 8

1шт.

2

BN2399446

CLAMP

4" Pipe, Includes Seal Ref 9

1шт.

3

86986400

SWITCH

Pressure, Product Pump

1шт.

4

BN72167

BUSHING

Reduser, 1/2"-14 NPT X 1/4"-18 NPT

1шт.

5

BN325870

PUMP

Product

1шт.

See Fig 78.110.13.AB For Service Parts

1шт.

6

BN8195374

LUBE NIPPLE

4" Grooved x 4.5" NPT

1шт.

7

BN8195451

LUBE NIPPLE

LUBRICATOR 3" Grooved x 3" NPT

1шт.

8

BN2399444-001

GASKET

3" Pipe

1шт.

9

BN2399446-001

GASKET

4" Pipe

1шт.
